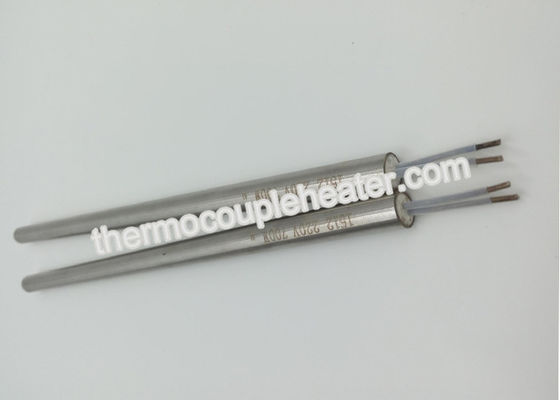

Electrical Cartridge Heaters with Rigid Pin , cartridge heater with thermocouple

Electrical Cartridge Heaters with Rigid Pin , cartridge heater with thermocouple

Electrical Cartridge Heaters with Rigid Pin , cartridge heater with thermocouple

Product Details:

Place of Origin: China
Brand Name: GME
Certification: ISO/CE/UL/CSA

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: USD 1-100 FOB Shanghai/pc
Packaging Details: Exported Case Packing
Delivery Time: 7-15Wroking Days
Payment Terms: T/T, Western Union, L/C,PayPal
Supply Ability: 10000pcs/Month
Contact Now
Detailed Product Description
Product Name: Cartridge Heater Lead Wire Material: Glass Fiber, Silicon, PTEE
Water Proof: IP65 Warranty: One Year
Wattage Tolerance: +5℃/-10℃ Maximum Watt Density: 30Wcm²
Resistance: >50MΩ
High Light:

cartridge immersion heater


cartridge heater with thermocouple

 Water Proof Electrical Cartridge Heater with High Temperature Lead Wire




  • Single-Ended tubular heater covering: SUS304/SUS316L/Incoloy 800/Titanium etc.
  • Insulation: Compacted magnesium Oxide
  • Heating conductor: NiCr8020
  • Voltage: 6V to 415v
  • Power density: Maxi 50W/CM2
  • Temperature resistance: 800 centi degree
  • Size tolerance: Less than 0.6mm
  • Thermocouple: J type, K type etc.




Mold Heating Element Cartridge Heaters are used largely used to heat liquid, solid or gas, the application in plastic industry is very wide, such as hot runner system,smallmould heating ,plastic package ,Medical equipment plastic ,plastic injection molding machine nozzle heating, Package and cartridge is also used in the cigarette industry, footwear industry, thermoforming machinery.

High-wattage cartridges belong to a new generation of electric heating elements; they make it possible to use high watt loads in small spaces, thus ensuring excellent reliability in heavy-duty work conditions. Their special construction technology makes them the most advanced type of heating elements. The entire length of the wire wound around a magnesium oxide core is in a faraway position from the axis of the cartridge, very close to the metal sheath, with a very thin and compressed insulating wall in between; this allows excellent heat exchange that allows a much lower temperature of the resistance wire than in other heaters in which the wire is in a deeper position. Besides the use of advanced technology and precise inspection techniques in their manufacturing, Ultramar cartridge heater owe their total reliability to the use of first-class material from the best sources in the market.




Usually, cartridge heaters are used to heat solids such as injection presses heating plates or various tools; On the other hand, they are also used for heating up water and gases under certain conditions. Especially, it is widely used in automotive industry. Cartridge heaters are also commonly found in the chemical, electronics, medical equipment, packing and nuclear industries.


Cartridge heaters can be used in any application. They can be inserted in machined groves for conductive heat transfer and formed cartridge provides consistent heat in any type of special application. Its applications areas are: Plastic processing machineries; Engineering Industry; Packaging machinery; Shoe making machineries; Foundry Equipment; Radiant Surface heating; Hot Runner Mould Systems etc.


Competitive advantages:


1. We manufacture high density cartridge heaters, Minimum diameter can reach 3mm.

2. All lead wires are pure nickel

3. Insulating material can be resistant to the high temperature of 400 degree.

4. Our product can meet IP65 waterproof

5. We also produce Split cartridge heater.
