Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
Place of Origin: | China |
Brand Name: | GME |
Certification: | ISO/CE/UL/CSA |
Minimum Order Quantity: | 100pcs |
---|---|
Price: | Negotiable |
Packaging Details: | carton and Wood packing |
Delivery Time: | 7-15Wroking Days |
Payment Terms: | L/C, T/T, Western Union, Paypal |
Supply Ability: | 10000pcs/Month |
Product Name: | 12v 120v 230v High Temperature Resisitance Ceramic Cartridge Heater | Thermocouple: | K/J |
---|---|---|---|
Tolerance Of Length: | +/-1.5% | Wattage: | 0.5-15KW |
Warranty: | One Year | Color: | Black/white |
Resistance Wire: | Cr20Ni80 | Insulation Material: | 99.99% High Purity Magnesium |
Highlight: | cartridge immersion heater,cartridge heater with thermocouple |
12v 120v 230v high temperature resisitance ceramic cartridge heater
Technical Details
1. Outer sheath material: Inconel600
2. Inside magnesium oxide insulation material: 99.99% high purity magnesium oxide
3. Heating element: high durance and high temperature NiCr2080 heating elements from Germany
4. TC material: High quality TC elements to ensure ±5 ℃tolerance
5. Max working temperature: 400℃
6. High voltage stability test:
7. Less than 0.5mA leak under 1000V for 30 seconds
8. OD range: 3mm-32mm
9. The range of the Total Length: 25mm----2500mm
10. Maximum power density: 40w/cm²
11. Unheated zone: 10mm at lead end and about 5mm at bottom
12. Lead options:
A: Solid Nickel Pin: wire 300℃ or 500℃
B: Swaged in wire: 500℃ wire coming from inside
Description
Use condition: | ENVIRONMENT TEMPERATURE-20~60 DEGREE C |
Leakage current: | <0.5MA |
INSULATION RESISTANCE: | ≥5M |
GROUND RESISTANCE: | <0.1 |
VOLATAGE RESISTANCE: | NO ELECTRIC BREAKDOWN FOR 1 MINUTE UNDER 1500V |
TEMPERATURE ENDURANCE | 100-1200 DEGREE C |
Cartridge heater is a piece of heating elements made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr20/80). It is used to heat in plastic injection moulds, dies, platens ….
Cartridge heater is one of the electric heating elements, which is widely used in industry mould heating. Compared with the same heating element of high thermal, cartridge heater can save 5% of electric materials, and heat efficiency can reach 90%. Cartridge heater is cylindrical electrical heating elements with stainless steel sheath, which watt density can reach 25 W/cm2 and their operating temperature can go up to 800°C (1472°F)
Applications
Usually, cartridge heaters are used to heat solids such as injection presses heating plates or various tools; On the other hand, they are also used for heating up water and gases under certain conditions. Especially, it is widely used in automotive industry. Cartridge heaters are also commonly found in the chemical, electronics, medical equipment, packing and nuclear industries.

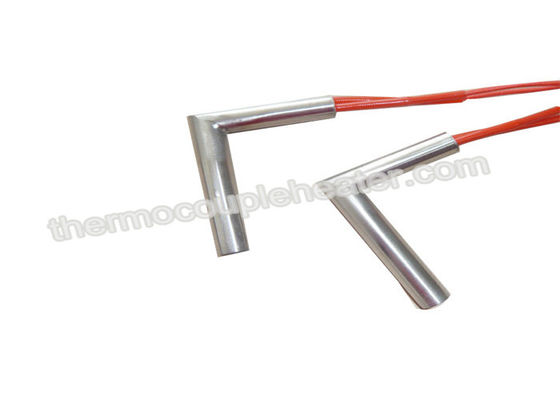

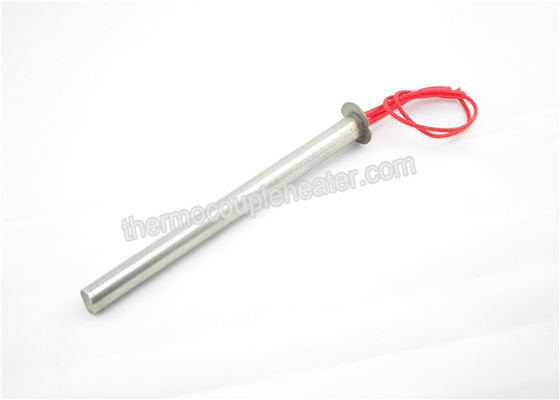

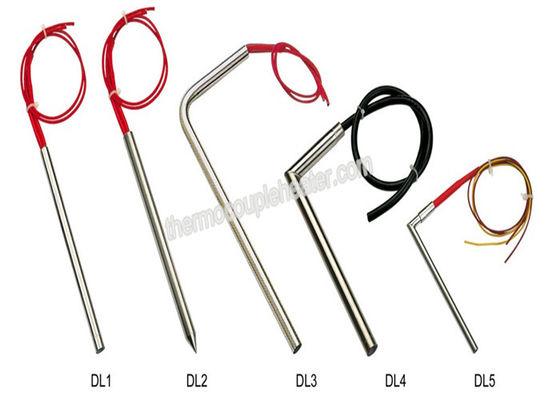

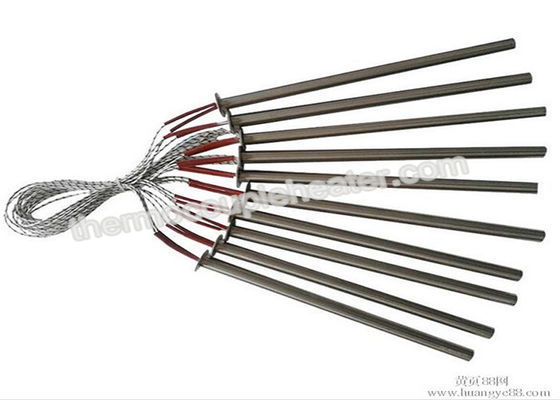

Pictures
Pickage
12v 120v 230v high temperature resisitance ceramic cartridge heater
