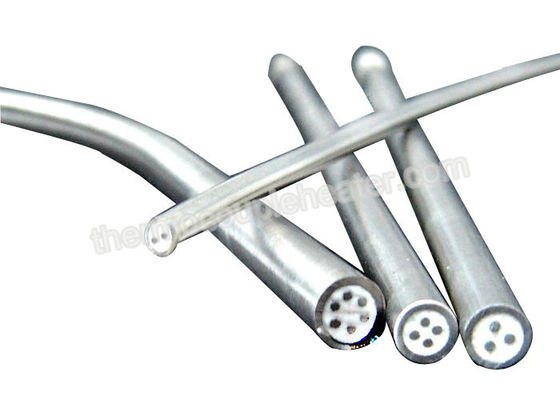

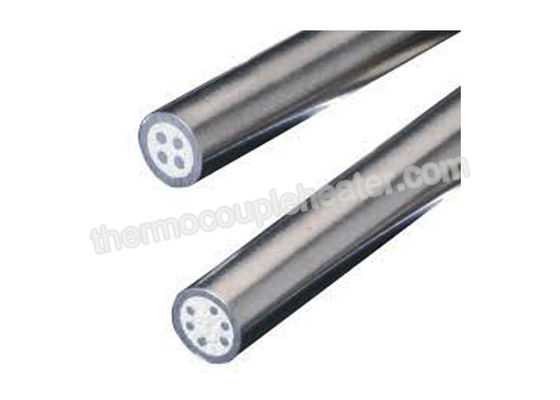

High Accuracy Mineral Insulated Power Cable for Thermocouple / Heat Resistant Cable Sheathing

High Accuracy Mineral Insulated Power Cable for Thermocouple / Heat Resistant Cable Sheathing

    • High Accuracy Mineral Insulated Power Cable for Thermocouple / Heat Resistant Cable Sheathing
    • High Accuracy Mineral Insulated Power Cable for Thermocouple / Heat Resistant Cable Sheathing
  • High Accuracy Mineral Insulated Power Cable for Thermocouple / Heat Resistant Cable Sheathing

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: ISO 9001

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 Meters
    Price: Negotiable
    Packaging Details: Standard Export Packing
    Delivery Time: 3~20 working days after received your payment
    Payment Terms: T/T, Western Union,Paypel
    Supply Ability: 300000 Meters per Month
    Contact Now
    Detailed Product Description
    Product Name: Mineral Insulated Cable Diameter: 0.25mm~12.70mm
    Calibration: Calibration K, J, E, T, N, S,R,B Conductor: 2 Wires, 4wires, 6wires
    Accuracy: Class I Application: Industrial Temperature Sensor
    Core: Simplex, Duplex, Triplex Sheath Material: SS304,SS321,,SS316,INCONEL600 Etc
    Wire Diameter: 15% -17% Of Outside Diameter Tube Thickness: 10% -12% Of Outside Diameter
    Insulation Material: Magnesium Oxide
    Highlight:

    mineral insulated metal sheathed cable

    ,

    mineral insulated heating cable





    High Accuracy Mineral Insulated Cable for Thermocouple



    High Accuracy Mineral Insulated Power Cable for Thermocouple / Heat Resistant Cable Sheathing



    High Accuracy Mineral Insulated Power Cable for Thermocouple / Heat Resistant Cable Sheathing



    1. Description



    Mineral Insulated thermocouple cables are the core material to produce thermocouples. It typically comprises stainless steel or Inconel sheath, Magnesium Oxide (MgO) powder and thermoelectric conductors ; Magnesium Oxide (MgO) powder is disposed in the sheath to maintain separation and electrical isolation between the sheath and the thermoelectric conductors . Magnesium oxide (MgO) is preferably used as the insulation material for the MI thermocouple cables because it is stable at high temperatures and pressure .It provides a high electricity resistance and is also economical .



    2. Feature



    1). The metal sheath can protect the inner thermocouple conductor against contamination, makes it moisture proof , weldable, compact and mechanically strong.
    2). MI insulated thermocouple cable make it easy to make thermocouple in small diameter ;
    3). The small mass and high thermal conductivity of a properly made cable enables fast thermal response of the finished thermocouple assembly.
    4). Different sheath materials can be selected to offer strong resistance against corrosive and extremely high temperature environments.



    3. Sheath Material



    SS304
    Max. temperature: 900°C (1650°F).

    This sheath material is most widely used in low temperature . Mainly used in chemical, food, beverage, and other industries where corrosion resistance is a must, which is also the lowest cost corrosion resistant sheath material . Subject to damaging carbide precipitation in 482°C to 871°C (900° to 1600°F) range.



    SS321
    Max. temperature: 871°C (1600°F). Quite similar to stainless steel 304 except titanium stabilized for intergranular corrosion. SS321 is used to overcome susceptibility to carbide precipitation in the 482° to 871°C (900° to 1600°F) range. Main applications are aerospace and chemical .



    SS316
    Max. temperature: 900°C (1650°F). It is the best corrosion resistance of the austenitic stainless steel grades. Good corrosion resistance in H2S. Mostly used in the food and chemical industry. Subject to damaging carbide precipitation in 482° to 871°C (900° to 1600°F) range.



    SS310
    Max. temperature: 1150°C (2100°F). Similar to but better than 304 SS in mechanical and corrosion resistance. Also good in heat resistance. SS310 contains 25% Cr, 20% Ni. Not as ductile as 304 SS.



    Inconel 600
    Maximum temperature: 1177°C (2150°F) Continuous; 1260°C (2300°F) Intermittent. Similar to Alloy 600 with the addition of aluminum for remarkable oxidation resistance. Used for high temperature corrosion resistance , especially good in carburizing environments with good creep rupture strength. Can’t be used in vacuum furnaces! Susceptible to intergranular attack by prolonged heating in 538° to 760°C (1000° to 1400°F) temperature range.



    4. Chemical Composition



    Sheath Material Chemical Composition Max. Temp. In Air Melting Temp.
    C Si Mn P S Cr Ni Others
    SS304 ≤0.07 ≤1.00 ≤2.00 ≤0.035 ≤0.03 17-19 8-11 - 900℃ 1405℃
    SS321 ≤0.12 ≤1.00 ≤2.00 ≤0.035 ≤0.03 17-19 8-11 5(C%-0.02)~0.08 870℃ 1400℃
    SS316 ≤0.08 ≤1.00 ≤2.00 ≤0.035 ≤0.03 16-19 11-14 Mo: 1.8-2.5 925℃ 1370℃
    SS310 ≤0.08 ≤1.00 ≤2.00 ≤0.035 ≤0.03 24-26 19-22 Ti: 5C%-0.07 1090℃ 1405℃
    INC600 ≤0.15 ≤0.50 ≤1.00 ≤0.030 ≤0.015 14-17 >72 Fe: 6-10, Cu: <0 1090℃ 1400℃



    5. Sheath Specification



    Sheath material Sheath OD (mm) Wall Thickness (mm) Wire Dia. (mm) Coil Length(m)

    SS304

    SS321

    SS316

    3.0 0.30-0.48 0.45-0.60 100
    3.2 0.32-0.58 0.48-0.68 100
    4.0 0.40-0.62 0.60-0.70 70
    4.8 0.48-0.83 0.72-0.85 70
    5.0 0.50-0.85 0.75-0.90 50
    6.0 0.60-1.08 0.90-1.10 50
    6.4 0.64-1.15 0.92-1.12 40
    8.0 0.80-1.44 1.20-1.40 30



    6. Calibration Tolerance



    Conductor Calibration Accuracy
    I II
    Tolerance Temperature Tolerance Temperature
    Ni Cr - Ni Si K 1.5 or 0.4%t -40~1000 2.5 or 0.75%t -40~1000
    Ni Cr Si- Ni Si N -40~1000 -40~1000
    Ni Cr - Konstantan E -40~800 -40~800
    Fe - Konstantan J -40~750 -40~750
    Cu - Konstantan T 1.5 or 0.4%t -40~350 1 or 0.75%t -40~350
    Pt Rh 10 - Pt S 1 or 1+(t-1100)x0.003 0~1600 1.5 or 0.25%t 0~1600
    Pt Rh 13 - Pt R 0~1600 0~1600
    Pt Rh 13 - Pt Rh 6 B --- ---

    600~1700
