Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE & ISO |
| Model Number: | Ceramic Insulator |
| Minimum Order Quantity: | 2000 pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Exported Case Packing |
| Delivery Time: | 10-15 working days after received your payment |
| Payment Terms: | T/T, Western Union, D/P, L/C, Paypal |
| Supply Ability: | 2,500,000pcs per month |
| Product Name: | Ceramic Insulator | Temperature Range Range: | 0--1300 Centigrade |
|---|---|---|---|
| Materials: | Ceramic | Theory: | Temperature Sensor |
| Usage: | Industrial, Thermocouple Accessories | Color: | White |
| Highlight: | thermocouple accessories,thermocouple parts and components |
||

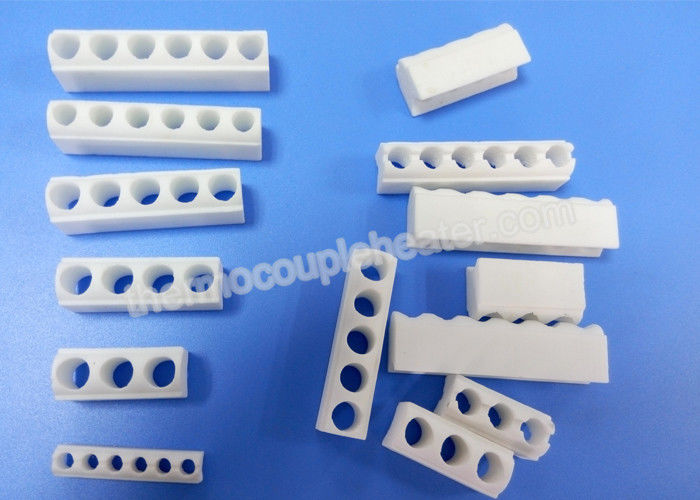

Steatite Ceramic Insulator for Band Heater
1. Brief Introduction
Steatite is lower in cost than Alumina but offers reduced mechanical properties. However Steatite has very good electrical resistance properties, which are retained at high temperatures, along with moderate mechanical strength and temperature resistance. It has been used in electrical insulation for many years in both large-scale electrical systems and electronic and domestic appliances.
2. Characteristics
1. High resistivity
2. Moderate strength
3. Excellent electrical properties
4. Poor heat conductivity (Thermal insulator).
5. Good resistance to thermal shock.
6. Low coefficient of thermal expansion.
7. Good mechanical stability.
3. Parameter.
| Item | Testing condition | Unit | Steatite |
| Bulk density | g/cm3 | ≥2.6 | |
| Flexural Strength | N/m2×103 | 1.37 | |
| Coefficient of linear expansion | 20~800°C | ×10-6/°C | ≤8 |
| Permittivity | 1MHz | ≤7.5 | |
| 10GHz | / | ||
| Insertion loss | 1MHz | ×10-6 | ≤8.0 |
| 10GHz | ×10-6 | / | |
| Bulk density resistance | 100°C | Ω·Cm | >1012 |
| Puncture strength | KV/mm | 20 | |
| Thermal conductivity | 20°C | W/m·k | 2.9 |
Applications:
