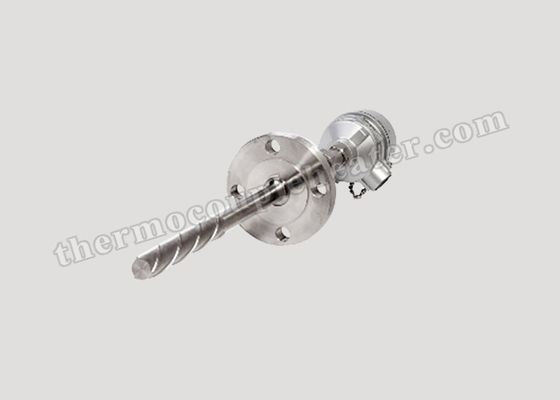

Temperature Sensor Straight Standard Fixed Flanged Thermowell for Thermocouple

Flanged Thermowell for Thermocouple

1. Brief Introduction

The thermowells are designed to work in conjunction with the sensors. It can come in a wide variety of materials and meet different requirements. The compact design accommodates 3 and 6 mm sensor inserts and has an integrated extension for simple installation.

2. Characteristics

• Optional Tantalum sheath, which can be permanently attached, for added protection
• Wake Frequency, Flow-Induced Stress, and Process Pressure calculations can be made to support the thermowell design.
• Full penetration weld standard
• Wake frequency calculations
• Integrated Extension for simple installation
• Wide variety of material options

3. Parameter.

4. Application

• They are also used on thermocouples with double protecting tubes
• Applicable under the conditions of high pressure and temperature, high flow-rate media
• Thermowells are mainly used on detachable thermocouples and RTDs or on the facilities of high pressure for later installation of thermocouples and RTDs

5. Transportation
