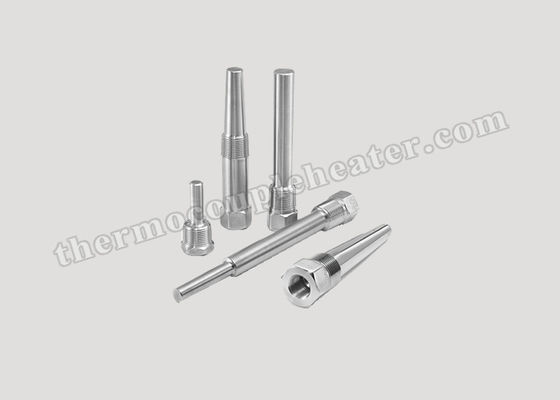

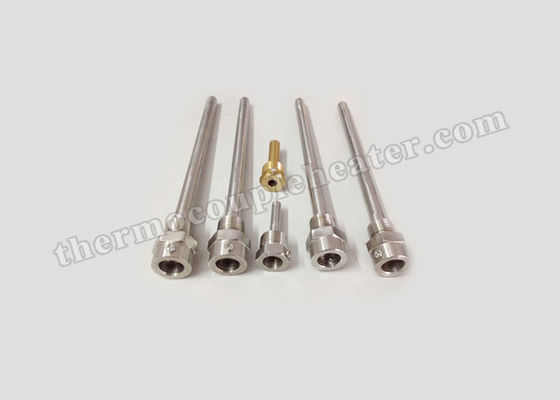

Temperature Sensor Types Stainless Steel Copper Thermowell With Wake Frequency

Stainless Steel Copper Thermowell for Thermocouple

1. Brief Introduction

The thermowells are designed to work in conjunction with the sensors. It can come in a wide variety of materials and meet different requirements. The compact design accommodates 3 and 6 mm sensor inserts and has an integrated extension for simple installation.

2. Characteristics

Integrated Extension for simple installation
Wide variety of material options
Optional Tantalum sheath, which can be permanently attached, for added protection
Full penetration weld standard
Wake frequency calculations
Wake Frequency, Flow-Induced Stress, and Process Pressure calculations can be made to support the thermowell design.

3. Parameter.

Tapered Thermowell

Reduced-Tip Thermowell

Straight Thermowell

WeldingThermowell

4. Application

1) Thermowells are mainly used on detachable thermocouples and RTDs or on the facilities of high pressure for later installation of thermocouples and RTDs

2) They are also used on thermocouples with double protecting tubes

3) Applicable under the conditions of high pressure and temperature, high flow-rate media
