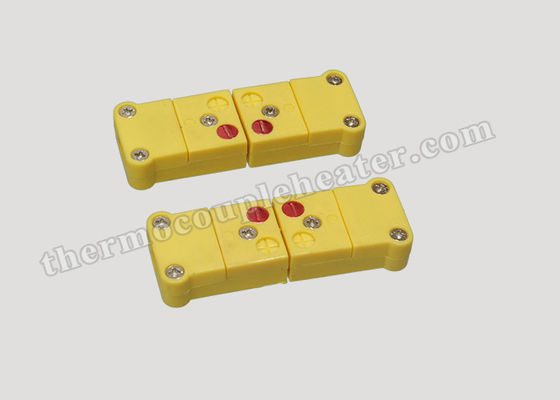

Durable Thermocouple Components Omega Style Thermocouple Plugs Sockets

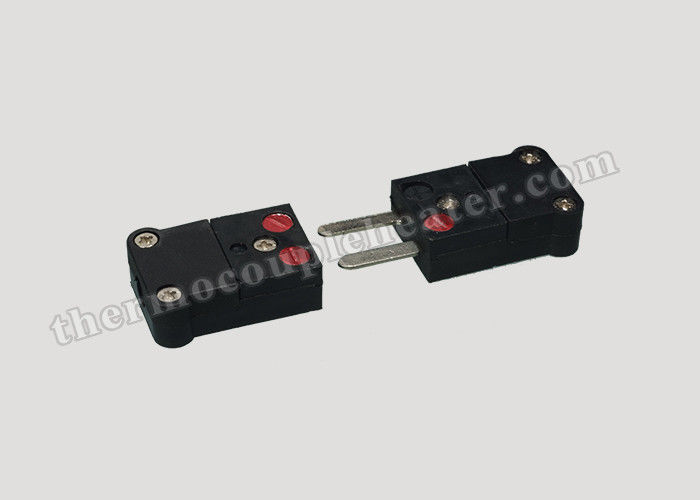

Omega Style Thermocouple Socket

1. Thermocouple Socket Brief Introduction

Thermocouple connector is widely used in the thermocouple and RTD circuits, best solution for quick and good contact. Different models are on the offer for different application.

2. Thermocouple Socket Characteristics

• Solid pins and hollow pins are both available, offer good contact and competitive price.
• Maximum ambient temperature for the thermoplastic body continuous usage is 200 degrees celsius.
• Well designed body ensure good insulation inside, and well designed pins construct ensure good contact.
• Available in all color code standard. ANSI color code standard will be the one if the customer do not have special requirements.
• Thermoplastic body and ceramic material body are both available.
• Original thermocouple alloy material pins, and spring loaded inserts.
•  Pins are polarized

3. Thermocouple Socket Parameter.

Wire size

• Accepts wires from 0.2 mm to 2.0 mm.
• Maximum cable diameter 8.0 mm.

Max. Temperature

• 200 Deg. C for thermoplastic body
• 650 Deg. C for ceramic body

4. Thermocouple Socket Application

This thermocouple connector is widely used in the thermocouple and RTD circuits and instrument machine.

5. Thermocouple Socket Connector

• Good Quality :We have strict quality control system .Good reputation in the foreigner market.
• Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
• Low MOQ: It can meet your promotional business very well.
• OEM Accepted : We can produce any your design as long as you provide us the drawing.
• Good Service : We treat clients as friend.
