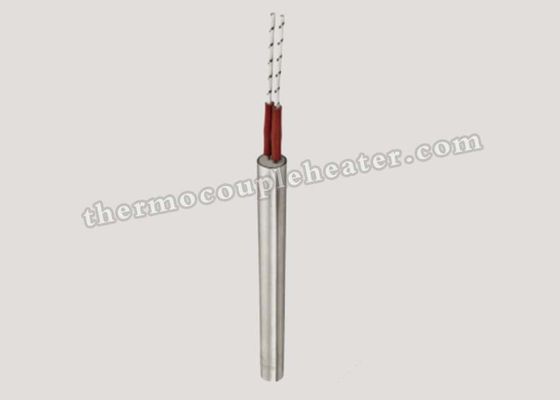

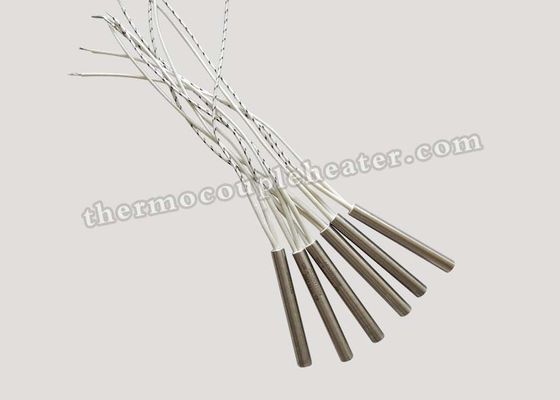

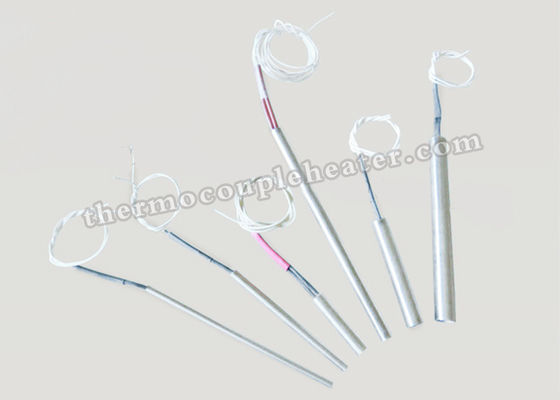

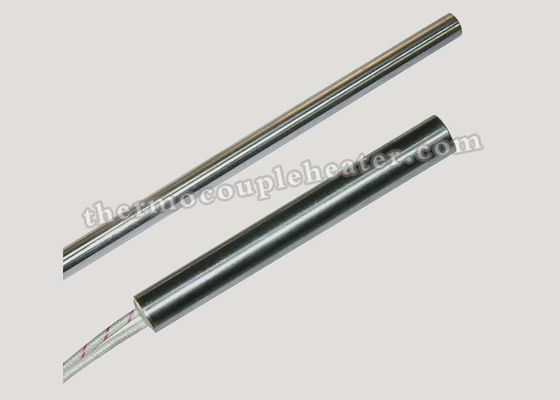

Water Proof Electrical Cartridge Heaters with High Temperature Lead Wire

 Water Proof Electrical Cartridge Heater with High Temperature Lead Wire

Specifications:

1. Sheath material: stainless steel304,316,321,incoloy800, incoloy840

2. Wattage supply:0.5kw-15kw optional

3. Power source: electric

4. Thermocouple type :K/J

5. Diameter:6-25mm

6. Lead wire length:20-30cm

7. Resistance wire: NiCr20/80

8. Insulation: Magnesium Oxide Powder

9. Voltage supply:110v,220v,230v

10. Wattage tolerance:+5%/-10%

11. Length tolerance:±5%

12. Water proof:IP65

Description:

Cartridge heater is one of the electric heating elements, which is widely used in industry mould heating.

Water Proof Electrical Cartridge Heater with High Temperature Lead Wire is a piece of heating elements made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr20/80). It is used to heat in plastic injection moulds, dies, platens ….

Cartridge heaters are custom designed in a various shapes to as client’s requirements for direct immersion in liquids such as water, oils, solvents and process solutions, molten materials as well as air and gases. Tubular heaters are produced using Incoloy, stainless steel or copper sheath materials and also there is huge variety of selection of termination styles available. Insulation of Magnesium offers greater heat transfer.

Compared with the same heating element of high thermal, cartridge heater can save 5% of electric materials, and heat efficiency can reach 90%.

Cartridge heater is cylindrical electrical heating elements with stainless steel sheath, which watt density can reach 25 W/cm2 and their operating temperature can go up to 800°C (1472°F)

Applications:

Usually, cartridge heaters are used to heat solids such as injection presses heating plates or various tools; On the other hand, they are also used for heating up water and gases under certain conditions. Especially, it is widely used in automotive industry. Cartridge heaters are also commonly found in the chemical, electronics, medical equipment, packing and nuclear industries.

Cartridge heaters can be used in any application. They can be inserted in machined groves for conductive heat transfer and formed cartridge provides consistent heat in any type of special application. Its applications areas are: Plastic processing machineries; Engineering Industry; Packaging machinery; Shoe making machineries; Foundry Equipment; Radiant Surface heating; Hot Runner Mould Systems etc.

Competitive advantages:

1. We manufacture high density cartridge heaters, Minimum diameter can reach 3mm.

2. All lead wires are pure nickel

3. Insulating material can be resistant to the high temperature of 400 degree.

4. Our product can meet IP65 waterproof

5. We also produce Split cartridge heater.
