Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | ISO/CE/UL/CSA |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | USD 1-100 FOB Shanghai/pc |
| Packaging Details: | Exported Case Packing |
| Delivery Time: | 7-15Wroking Days |
| Payment Terms: | T/T, Western Union, L/C,PayPal |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Split Cartridge Heater | Shape: | Split |
|---|---|---|---|
| Water Proof: | IP65 | Application: | Molding Machine |
| Wattage Tolerance: | +5℃/-10℃ | Maximum Watt Density: | 30Wcm² |
| Resistance: | >50MΩ | ||
| High Light: | electric cartridge heaters,cartridge heater with thermocouple |
||

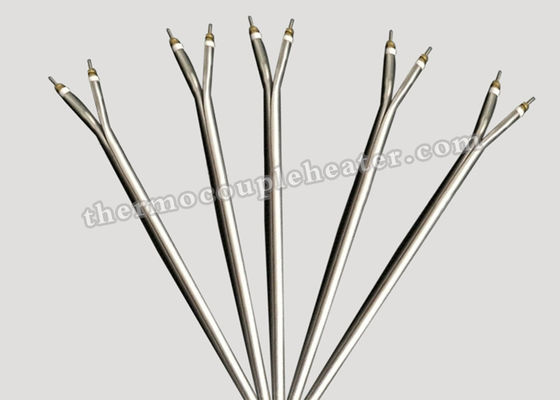

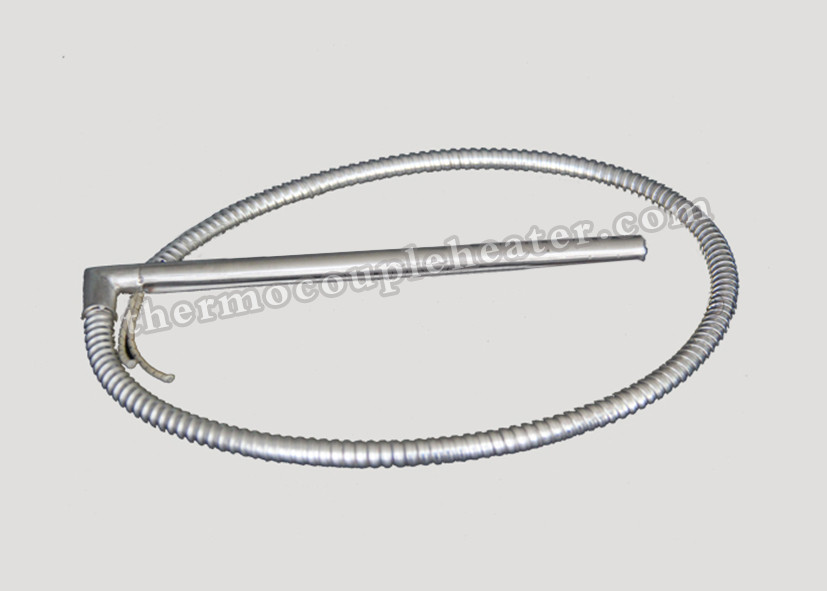

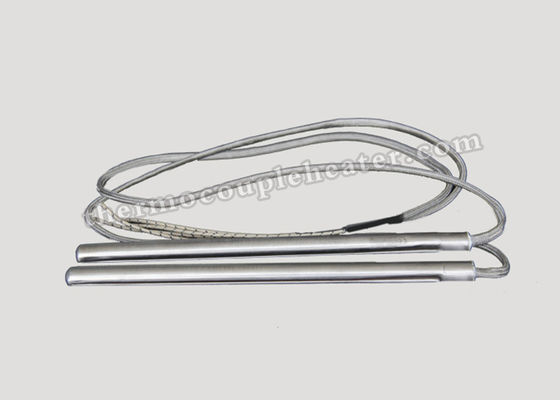

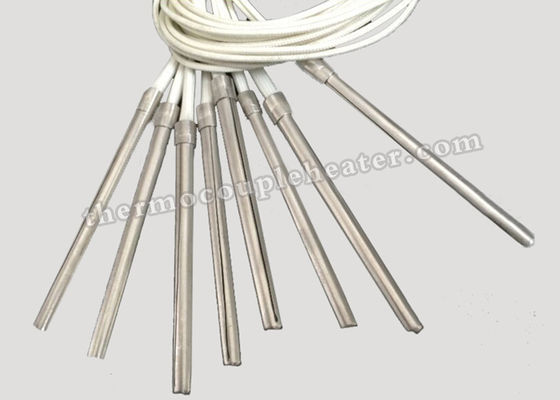

Split Sheath Cartridge Heater of High Temperature and Fast Heating
1. Description:
Split cartridge heater is a new type of heating tube, which enjoy leading position in the industry. A semi-circular heating element is folded into two semicircular cartridge heaters, which is a advanced product of an single-ended molding, especially for the molding requires high temperature and fast heating.
This application makes itself much closer to the molding hole through tension. Split cartridge heater has the following advantages: high power density, long working life, high thermal efficiency.
2. Specifications:
| 1. Application environment: environment temperature: -20℃~+60℃ /relative temperature: <80% |
| 2. Electric strength:cold stress1500V 50HZ/ 1MIN no broken-down phenomenon. |
| 3. Resistance >50MΩ. |
| 4. Resistance wire: NiCr20/80 |
| 5. Insulation: Mgo |
| 6. Sheath material: stainless steel304,316,321,incoloy800, incoloy840 |
| 7. Shape: right angel |
| 8. Voltage supply:110v,220v,230v |
| 9. Wattage supply:0.5kw-15kw optional |
| 10. Wattage tolerance:+5%/-10% |
| 11. Length tolerance:±5% |
| 12. Water proof:IP65 |
| 12. Water proof:IP65 |
| 13. Power source: electric |
|
14. Thermocouple type :K/J |
| 15. Diameter:6-25mm |
| 16. Lead wire length:20-30cm |
3. Applications:
Usually, cartridge heaters are used to heat solids such as injection presses heating plates or various tools; On the other hand, they are also used for heating up water and gases under certain conditions. Especially, it is widely used in automotive industry. Cartridge heaters are also commonly found in the chemical, electronics, medical equipment, packing and nuclear industries:
1. Packaging industry - Heating of cutting bars, hot stamps
2. Food Service: Steamers, Dish Washers,
3. Injection molding machine - Internal heating of nozzles
4. Hot runner systems - Heating of manifolds
5. Medical- Dialysis, Sterilization, Blood Analyzer, Nebulizer, Blood/Fluid Warmer, Temperature Therapy
6. Laboratories - Heating of analytical equipment
4. Competitive Advantage:
1. Advanced inspection equipment
2. All lead wires are pure nickel
3. Maximum wattage density: 40w/cm²
4. Minimum diameter: 3mm.
5. Insulating material can be resistant to the high temperature of 400 degree.
6. GME specialized in manufacturing high density cartridge heaters.
7. Our product can meet IP65 waterproof
