Screw Plug Industrial Immersion Cartridge Heater with High Temperature Cable

China Screw Plug Industrial Immersion Cartridge Heater with High Temperature Cable supplier
Screw Plug Industrial Immersion Cartridge Heater with High Temperature Cable supplier Screw Plug Industrial Immersion Cartridge Heater with High Temperature Cable supplier Screw Plug Industrial Immersion Cartridge Heater with High Temperature Cable supplier Screw Plug Industrial Immersion Cartridge Heater with High Temperature Cable supplier

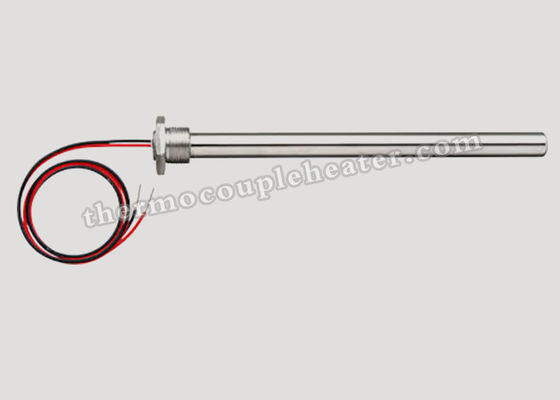

Large Image :  Screw Plug Industrial Immersion Cartridge Heater with High Temperature Cable

Product Details:

Place of Origin: China
Brand Name: GME
Certification: ISO/CE/UL/CSA

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: USD 1-100 FOB Shanghai/pc
Packaging Details: Exported Case Packing
Delivery Time: 7-15Wroking Days
Payment Terms: T/T, Western Union, L/C,PayPal
Supply Ability: 10000pcs/Month
Verified Supplier

China

  • Product Details
Detailed Product Description
Product Name: Immersion Cartridge Heater Lead Wire Protection: Fiberglass, Silicon, PTEE
Water Proof: IP65 Application: Molding Machine
Working Temperature: 750ºC Max. Maximum Watt Density: 30Wcm²
Wattage: 0.5-15KW
High Light:

cartridge heater with thermocouple

,

cartridge immersion heater



Screw Plug Industrial Immersion Cartridge Heater with High Temperature Cable



1. Description:



It is used in plastic mold, home appliances, thermoforming machinery, cigarette machinery, rapid sealing machine, pharmaceutical machinery, analysis equipment, footwear industry, semiconductor eutectic welding, die casting enter-road heating and non-runner injection, equipment for gases cooling, etc.



Cartridge heater is cylindrical electrical heating elements. Protected with a stainless steel sheath Cartridge heater with right angle

their watt density can reach 25 W/cm2 and their operating temperature can go up to 800°C (1472°F)



Mostly cartridge heater is used for heating up solids such as injection presses heating plates or various tools,

cartridge heater  can also be used for heating up water of gases under certain conditions. Widely used for

manufacturing plastic and rubber parts in the car industry or in the food processing industry, etc .

cartridge heaters are also commonly found in the chemical, electronics, medical equipment, packing and

nuclear industries.



2. Specifications:



1. Tube diameter: Φ3mm-Φ30mm

2. Tube Material:SS304;SS316,SS321,NICOLOY800 etc

3. Insulation Material:High-purity Mgo

4. Reisistance wire element:Ni-Cr or FeCr

5. Lead Connection Option: Crimped or Swaged leads

6. Lead and type of connection leads, 10" Fiberglass Standard(Wire options,silicone high temperature

frberglass).



Heat intensity

Not exceeding 30Wcm2 (advisable)

Power

Depends on the dimension

Escape of current (when cold)

<=0.1mA a 242 v.

Insulation (when cold)

5 Min Ohmios 500 Watts minimum

Dielectric strength

1500v. 1/seg

Working temperature

750ºC max.

Tolerance of length

+/-1.5%

Tolerance of diameter

-0.01 a -0.06 m/m

Tolerance of cut of connexion

+/-15 mlm

Power tolerance (w)

5 % - 10 %

Cold areas

Depends on length and diameter 5-25mm



3. Applications:



Usually, cartridge heaters are used to heat solids such as injection presses heating plates or various tools; On the other hand, they are also used for heating up water and gases under certain conditions. Especially, it is widely used in automotive industry. Cartridge heaters are also commonly found in the chemical, electronics, medical equipment, packing and nuclear industries:

1. Packaging industry - Heating of cutting bars, hot stamps

2. Food Service: Steamers, Dish Washers,

3. Injection molding machine - Internal heating of nozzles

4. Hot runner systems - Heating of manifolds

5. Medical- Dialysis, Sterilization, Blood Analyzer, Nebulizer, Blood/Fluid Warmer, Temperature Therapy

6. Laboratories - Heating of analytical equipment



4. Competitive Advantage:



1. Long lifespan, rational internal structure design. Using imported high-purity magnesium oxide mandrel and magnesium power for filling, high thermal conductivity

2. Using Centerless Machine to standardize Diameter, high thermal efficiency, fast heat dissipation.

3.  Advanced technology and equipment make the quality good and stable.

4.  All items have passed CE and ROHS certification.
