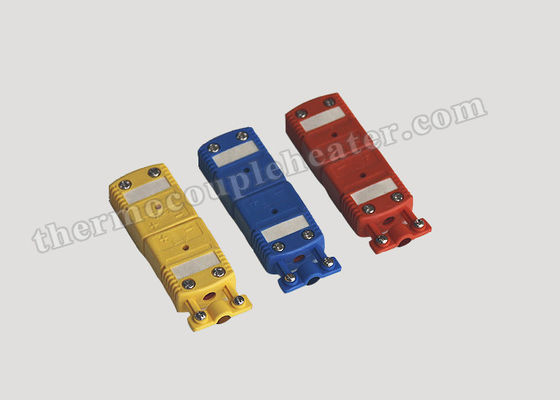

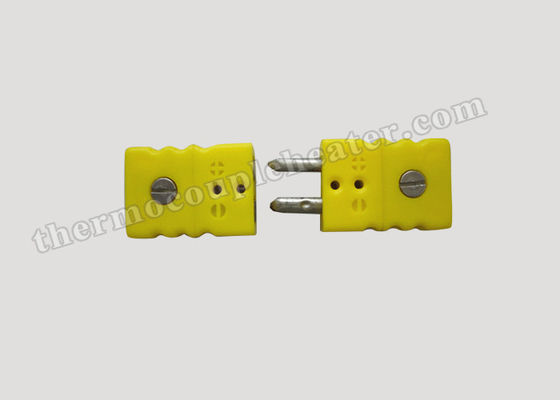

Thermocouple Components Chromel Alume Standard J Type Thermocouple Connector

Thermocouple Components Chromel Alume Standard J Type Thermocouple Connector

    • Thermocouple Components Chromel Alume Standard J Type Thermocouple Connector
    • Thermocouple Components Chromel Alume Standard J Type Thermocouple Connector
  • Thermocouple Components Chromel Alume Standard J Type Thermocouple Connector

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE & ISO
    Model Number: Standard Thermocouple Connector

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 pcs
    Price: Negotiation
    Packaging Details: Exported Case Packing
    Delivery Time: 10-15 working days after received your payment
    Payment Terms: T/T, Western Union, D/P, L/C, Paypal
    Supply Ability: 25,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Standard Thermocouple Connector Temperature Range Range: 0--600 Centigrade
    Materials: Nickel-plated Iron Types: K, S, N, J, T, E
    Usage: Industrial, Thermocouple Accessories Material: Yellow, Black, White,
    Conductor Material:: Chromel, Alume Application: Industrial
    Highlight:

    thermocouple accessories

    ,

    thermocouple parts and components

    Temperature Sensor Standard Thermocouple Connector with CE




    1. Standard Thermocouple Connector Brief Introduction


    Thermocouple connector is widely used in the thermocouple and RTD circuits, best solution for quick and good contact. Different models are on the offer for different application.


    2. Standard Thermocouple Connector Characteristics



    • Thermoplastic body and ceramic material body are both available.
    • Original thermocouple alloy material pins, and spring loaded inserts.
    •  Pins are polarized
    • Solid pins and hollow pins are both available, offer good contact and competitive price.
    • Maximum ambient temperature for the thermoplastic body continuous usage is 200 degrees celsius.
    • Well designed body ensure good insulation inside, and well designed pins construct ensure good contact.
    • Available in all color code standard. ANSI color code standard will be the one if the customer do not have special requirements.


    3. Standard Thermocouple Connector Parameter.


    Wire size



    • Accepts wires from 0.2 mm to 2.0 mm.
    • Maximum cable diameter 8.0 mm.


    Max. Temperature



    • 200 Deg. C for thermoplastic body
    • 650 Deg. C for ceramic body

    Thermocouple Components Chromel Alume Standard J Type Thermocouple Connector

    Thermocouple Components Chromel Alume Standard J Type Thermocouple Connector

    Mark

    Material

    Color

    K

    Nickel chrome - nickel silicon

    yellow (ANSI), green (IEC)

    J

    Iron-copper nickel

    Black

    N

    Silicon nickel chrome - nickel silicon magnesium

    Orange

    T

    Copper - copper nickel

    blue

    E

    Copper nickel- chrome nickel

    purple

    R/S

    Copper - copper nickel

    green





    1. insulator Material :

    Nylon

    2. Screw Material:

    Nickel-plated iron

    3.Nut material:

    copper

    4. Conductor material:

    Ni Cr-Ni Si

    5.Color:

    yellow(ANSI) green(IEC)

    6.Size:

    Customized

    4.Logo:

    As your request

    5.MOQ:

    100pcs

    6.Samples Time:

    (1)3-5days-If you want to customize your logo.

    (2)1day-For our available samples for reference.

    7.OEM Accepted

    Yes

    8.Certification available:

    Yes

    9.Packing Details:

    20pcs/package, 800pcs/ carton, Carton size:50*32*27cm GW:22kg

    10.Production Capacity:

    100,000pcs Per month.

    11.Payment Term:

    (1) L/C,T/T,D/P,D/A,PAYPAL,WESTERN UNION,MONEY GRAM



    (2) We also can provide a monthly statement payment services.





    4. Standard Thermocouple Connector Application


    This thermocouple connector is widely used in the thermocouple and RTD circuits and instrument machine.


    5. Advantage for Standard Thermocouple Connector



    • OEM Accepted : We can produce any your design as long as you provide us the drawing.
    • Good Service : We treat clients as friend.
    • Good Quality :We have strict quality control system .Good reputation in the foreigner market.
    • Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
    • Low MOQ: It can meet your promotional business very well.



    5. Transportation



    Thermocouple Components Chromel Alume Standard J Type Thermocouple Connector
