High Density Right Angel Cartridge Heaters , Electrical Heating Elements with Metal Hoses

High Density Right Angel Cartridge Heater Electrical Heating Elements with Metal Hoses

Specifications:

1. Resistance wire: NiCr20/80

2. Insulation: Mgo

3. Sheath material: stainless steel304,316,321,incoloy800, incoloy840

4. Shape: right angel

5. Voltage supply:110v,220v,230v

6. Wattage supply:0.5kw-15kw optional

7. Wattage tolerance:+5%/-10%

8. Length tolerance:±5%

9. Water proof:IP65

10. Power source: electric

11. Thermocouple type :K/J

12. Diameter:6-25mm

13. Lead wire length:20-30cm

Description:

High Density Right Angel Cartridge Heater consists of MgO powder, ceramic cap, resistance wire (NiCr20/80),High temperature leads and seamless stainless steel sheath(304,321,316,800,840).

It is usually used in heating applications by inserting into metal blocks via a series of drilled holes. Cartridge heaters are manufactured in two basic forms - high density and low density.

High density cartridge heaters are used to heat plastic injection moulds, dies, platens and so forth, whereas low density cartridge heaters are more suitable for packing machinery, heat sealing, labeling machines and hot stamping applications.

Cartridge heater is a piece of heating elements made of MgO powder or MgO tube, ceramic cap, resistance wire (NiCr20/80). It is used to heat in plastic injection moulds, dies, platens ….

Cartridge heater is one of the electric heating elements, which is widely used in industry mould heating. Compared with the same heating element of high thermal, cartridge heater can save 5% of electric materials, and heat efficiency can reach 90%. Cartridge heater is cylindrical electrical heating elements with stainless steel sheath, which watt density can reach 25 W/cm2 and their operating temperature can go up to 800°C (1472°F)

Applications:

Usually, cartridge heaters are used to heat solids such as injection presses heating plates or various tools; On the other hand, they are also used for heating up water and gases under certain conditions. Especially, it is widely used in automotive industry. Cartridge heaters are also commonly found in the chemical, electronics, medical equipment, packing and nuclear industries:

1. Packaging industry - Heating of cutting bars, hot stamps

2. Food Service: Steamers, Dish Washers,

3. Injection molding machine - Internal heating of nozzles

4. Hot runner systems - Heating of manifolds

5. Medical- Dialysis, Sterilization, Blood Analyzer, Nebulizer, Blood/Fluid Warmer, Temperature Therapy

6. Laboratories - Heating of analytical equipment

Competitive Advantage:

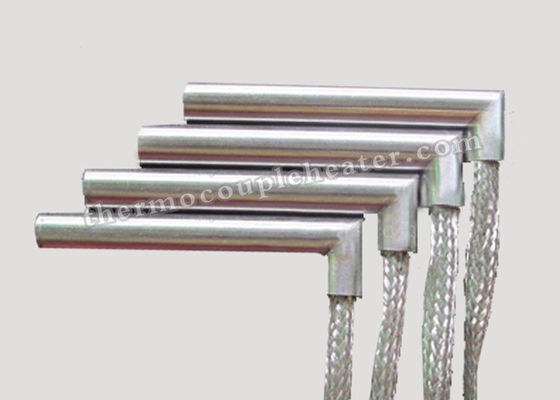

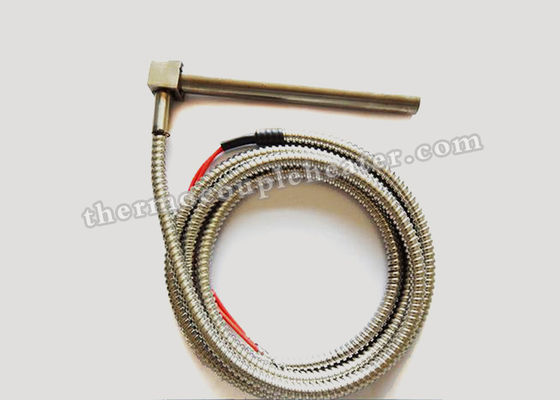

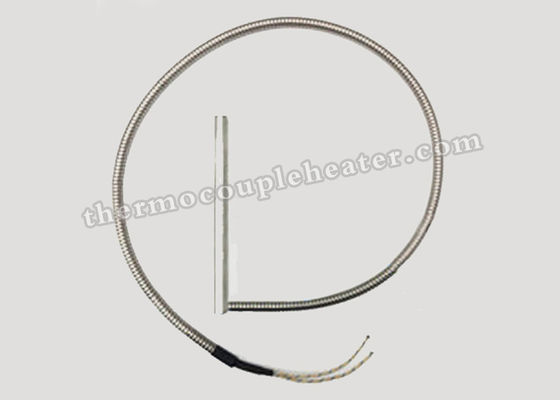

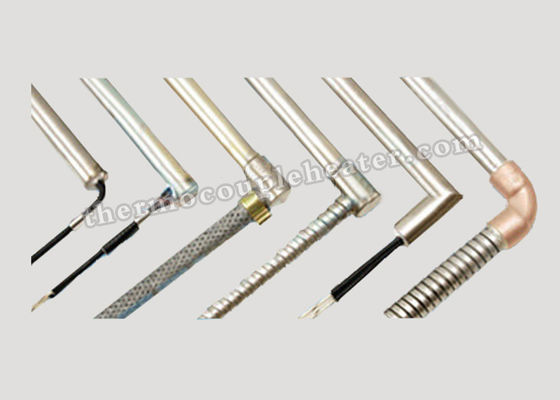

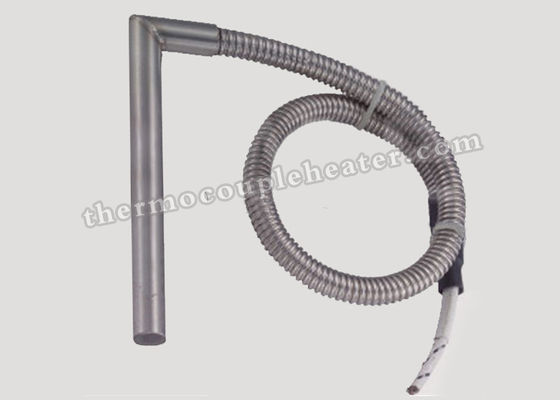

Right angel cartridge heater with stainless hose over high temperature wire is the strongest lead protection for abrasion, which offers good flexibility, easy moving and flexing application.

1. GME specialized in manufacturing high density cartridge heaters. Maximum wattage density: 40w/cm²
2. Minimum diameter:3mm.
3. Insulating material can be resistant to the high temperature of 400 degree.
4. Our product can meet IP65 waterproof
5. All lead wires are pure nickel
