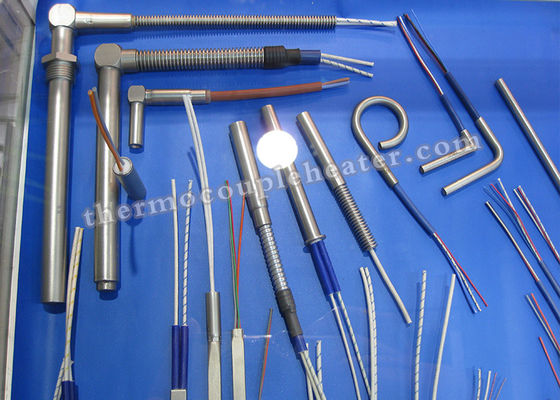

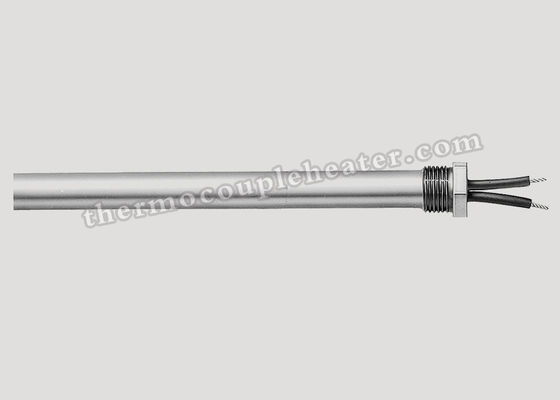

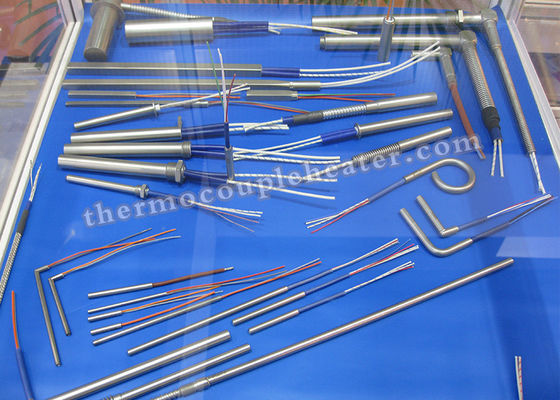

Inconel 600 Cartridge Heaters for Plastic Injection Machine Heating

Inconel 600 Cartridge Heaters for Plastic Injection Machine Heating

    • Inconel 600 Cartridge Heaters for Plastic Injection Machine Heating
    • Inconel 600 Cartridge Heaters for Plastic Injection Machine Heating
    • Inconel 600 Cartridge Heaters for Plastic Injection Machine Heating
  • Inconel 600 Cartridge Heaters for Plastic Injection Machine Heating

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: ISO/CE/UL/CSA

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Price: USD 1-100 FOB Shanghai/pc
    Packaging Details: Exported Case Packing
    Delivery Time: 7-15Wroking Days
    Payment Terms: T/T, Western Union, L/C,PayPal
    Supply Ability: 10000pcs/Month
    Contact Now
    Detailed Product Description
    Product Name: Cartridge Heater Application: Heating Instrument
    Tube Material: Inconel 600 Resistance Wire: Cr20Ni80
    Conductor: Pure Nickel Tolerance Of Length: +/-1.5%
    Wattage: 0.5-15KW
    Highlight:

    electric cartridge heaters

    ,

    cartridge heater with thermocouple

    Inconel 600 Cartridge Heater for Plastic Injection Machine Heating



    Specifications:

    1. Tube diameter: Φ3mm-Φ30mm

    2. Tube Material: Inconel600

    3. Insulation Material: High-purity Mgo

    4. Resistance wire element: Ni-Cr or Fe-Cr

    5. Lead Connection Option: Crimped or Swaged leads

    6. Lead and type of connection leads, 10" Fiberglass Standard (Wire options: , silicone high temperature fiberglass)





    Heat intensity

      Not exceeding 30Wcm2 (advisable)

    Power

      Depends on the dimension

    Escape of current (when cold)

      <=0.1mA a 242 v.

    Insulation (when cold)

      5 Min Ohmios 500 Watts minimum

    Dielectric strength

      1500v. 1/seg

    Working temperature

      750ºG max.

    Tolerance of length

      +/-1.5%

    Tolerance of diameter

      -0.01 a -0.06 m/m

    Tolerance of cut of connexion

      +/-15 mlm

    Power tolerance (w)

      5 % - 10 %

    Cold areas

      Depends on length and diameter 5-25mm



    Description



    Inconel 600 Cartridge Heater for Plastic Injection Machine Heating is done by metal shell loaded high resistance electric thermal bonding wire heating material, around the heating wire with high thermal conductivity of high purity magnesium oxide as a filling material filling and compaction, good insulation performance.



    This product has the advantages of large power, high thermal efficiency, and heat faster. Commonly

    used in plastic packaging, small mould heating, analysis instrument, the cigarette industry, shoe industry, semiconductor welding heat input, die casting, all kinds of gas expands the cooling effect of heating.



    Cartridge heater with elbow is cylindrical electrical heating elements. Protected with a stainless steel sheath, their watt density can reach 25 W/cm2 and their operating temperature can go up to 800°C (1472°F)



    Applications



    Mostly cartridge heater is used for heating up solids such as injection presses heating plates or various tools, cartridge heater  can also be used for heating up water of gases under certain conditions. Widely used for manufacturing plastic and rubber parts in the car industry or in the food processing industry, etc. cartridge heaters are also commonly found in the chemical, electronics, medical equipment, packing and nuclear industries.
