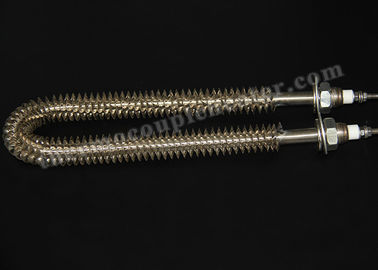

U Shape Stainless Steel Finned Tubular Heater / 500W-3000W Tubular Air Heater

Home ProductsTubular Heater

U Shape Stainless Steel Finned Tubular Heater / 500W-3000W Tubular Air Heater

Send Me The Latest Product Alerts
(No SPAM - We would not sell or share your e-mail address.)

U Shape Stainless Steel Finned Tubular Heater / 500W-3000W Tubular Air Heater

China U Shape Stainless Steel Finned Tubular Heater / 500W-3000W Tubular Air Heater supplier
U Shape Stainless Steel Finned Tubular Heater / 500W-3000W Tubular Air Heater supplier U Shape Stainless Steel Finned Tubular Heater / 500W-3000W Tubular Air Heater supplier U Shape Stainless Steel Finned Tubular Heater / 500W-3000W Tubular Air Heater supplier

Large Image :  U Shape Stainless Steel Finned Tubular Heater / 500W-3000W Tubular Air Heater

Product Details:

Place of Origin: China
Certification: ISO9001/CE

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Carton or wooden crate or as per your request
Delivery Time: 10 working days or above
Payment Terms: L/C, T/T,PAYPAL
Supply Ability: 90000pcs per month
Verified Supplier

China

  • Product Details
Detailed Product Description
Product Name: U Shape Stainless Steel Finned Tubular Air Heaters Application: Industrial Heating Elements
Sheath Material: Incoloy 800, SS 304, SS 321, SS 316 Voltage: 120V- 480V , Or Special To Order
Resistance Wire: Ni80Cr20 Power: 500W-3000W, Or Special To Order
High Light:

thermostatic tubular heater

,

tubular heater elements

U Shape Stainless Steel Finned Tubular Air Heaters



Product Description

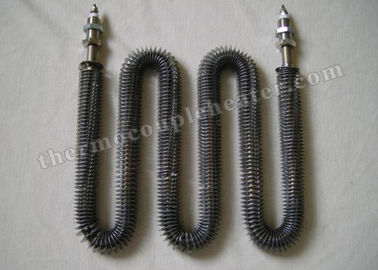

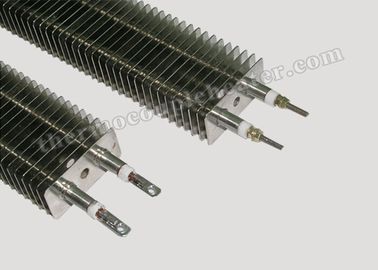

Finned tubular air heating elements are constructed like basic tubular elements with the addition of continuous spiral fins, 4-5 per inch permanently furnace brazed to the sheath. Fins greatly increase surface area and permit faster hear transfer to air, resulting in lower surface element temperatures.
Heater Element for Air is the most versatile and the best suited solutions to a large number of applications. In applications where tubular heaters are exposed to forced convection, placing fins around tubular heaters increases their surface area and thus improves their heat transferring capacity. Heater Element for Air, compared to regular tubular heaters ,run at lower surface temperatures for the same watt densities when placed in identical air streams. These heating elements have a strong outer sheath to help protect the heater from physical stress and uses high quality alloys to allow efficient heat transfer from resistance coil to your heating medium.


Specification



Finned Tubular Air Heaters Construction
1. Nickel-chromium resistance wire is uniformly stretched and imbedded into magnesium-oxide powder.
2. Resistance wire is accurately centered within a copper, steel or alloy sheath.
3. Terminal pins are attached to the resistance coil at each end to create an unheated zone near the terminals.



   TUBE MATERIAL

 FIN MATERIAL

TUBE DIA.(MM)

FIN HEIGHT(MM)

FIN THICKNESS(MM)

FIN PITCH(MM)

SS304/316/321/Incoloy

S.Steel / mild Steel

        Φ6.7

  3-5

 0.3-0.4

 3-5

SS304/316/321/Incoloy

S.Steel / mild Steel

        Φ8

 3-5

   0.3-0.4

 3-5

SS304/316/321/Incoloy

S.Steel / mild Steel

        Φ9

 3-5

   0.3-0.4

 3-5

SS304/316/321/Incoloy

S.Steel / mild Steel

        Φ10

 5-7

 0.3-0.4

 3-7

SS304/316/321/Incoloy

S.Steel / mild Steel

        Φ12

 5-7

 0.3-0.4

 3-7

SS304/316/321/Incoloy

S.Steel / mild Steel

        Φ14

 5-10

   0.3-0.4

 3-7

SS304/316/321/Incoloy

S.Steel / mild Steel

        Φ16

 5-10

 0.3-0.4

 5-10

SS304/316/321/Incoloy

S.Steel / mild Steel

        Φ20

 5-10

 0.3-0.4

 7-10





Feature


1. Mild Steel sheath models are suitable for operating temperatures to 500c;
2. Stainless steel sheath models are suitable for operating temperatures to 700c;
3. Premium grade magnesium oxide insulation imbeds the resistance wire coil for optimum heat transfer;
4. High temperature nickel chromium resistance wire;
5. Full brazed wound fin;
6. Standard and custom options available.


Application - Finned tubular heating elements


1. Drying
2. Heat Treating
3. Annealing
4. Load Banks
5. Curing
