| Product Name: | Square Type 6 X 6mm Or 8 X 8mm Stainless Steel Flexible Tubular Heater | Application: | Industrial Heating Elements |
|---|---|---|---|
| Insulation: | MgO | Voltage: | 12~440V |
| Resistance Wire: | Ni80Cr20 | Power: | 100~3000W |
| High Light: | flexible tubular heater,thermostatic tubular heater |
||

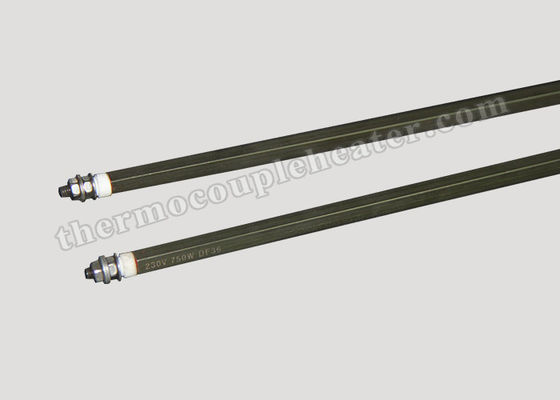

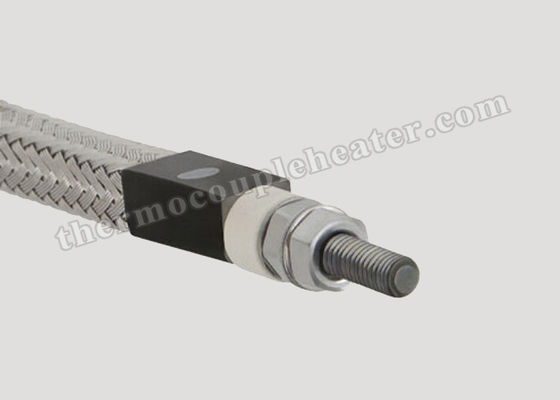

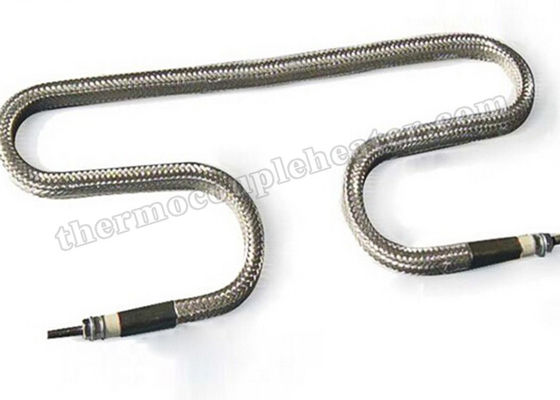

Square Type 6 x 6mm Or 8 X 8mm Stainless Steel Flexible Tubular Heater
Product Description
The flexible tubular heater are custom formed in a wide range of shapes to correspond to your requirements. Incoloy, stainless steel or steel sheath materials are available as well as a large Selection of termination styles. Magnesium Oxide insulation ensures superior Heat transfer and the resistance wire is precision-wound for long heater life. Tubular heaters can be used in almost any application. Straight tubular can be Clamped to metal surface or inserted in machined groves for conductive heat transfer. Or use a formed Tubular to provide consistent heat in any type of special Application.
Specification
|
Voltage |
12~440V |
|
Wattage |
100~3000W, or customized |
|
Size |
round section:φ6.5mm,φ8.5mm or φ10mm square section:6*6mm, 8*8mm |
|
Electric Heating Wire |
NiCr8020 |
|
Insulation |
MgO |
|
Sheath |
Metal braided/SS braided |
|
Operation Temperature |
0~800C |
|
|
|
Feature
Available in standard types & customized.
Available in different sizes of tube diameter , 6.5mm,8.5mm, etc.
Available in different sheath material, Inconel 600, SS 304, SS 321, SS 316, etc.
Customized design.
Variety of terminal options.
Variety of shapes & sizes.
Long lasting & durable.
Available in different square & flat profile, 6mm x 6mm, 8mm x 8mm, etc.
Application
Plastic processing machineries.
Engineering Industry.
Packaging machinery.
Shoe making machineries
Foundry Equipments.
Radiant Surface heating.
Hot Runner Mould Systems.
