Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE & ISO |
| Model Number: | High Temperature Cable |
| Minimum Order Quantity: | 1000 m |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Exported Case Packing |
| Delivery Time: | 15-20 working days after received your payment |
| Payment Terms: | T/T, Western Union, D/P, L/C, Paypla |
| Supply Ability: | 100,000m per month |
| Product Name: | Heating Elements High Temperature Wire | Application: | Electric Heater |
|---|---|---|---|
| Conductor Type: | Stranded | Insulated Materials: | Silicon & Mica |
| Package: | In Roll Or Spool | Conductors: | Nickel Copper, Nickel |
| Color: | Red/Black/Blue/Yellow | Size: | 26AWG~4/0 AWG |
| Highlight: | high temperature electrical wire,high temperature insulated wire |
||

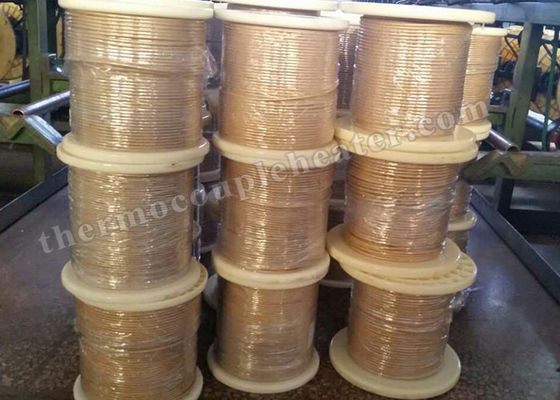

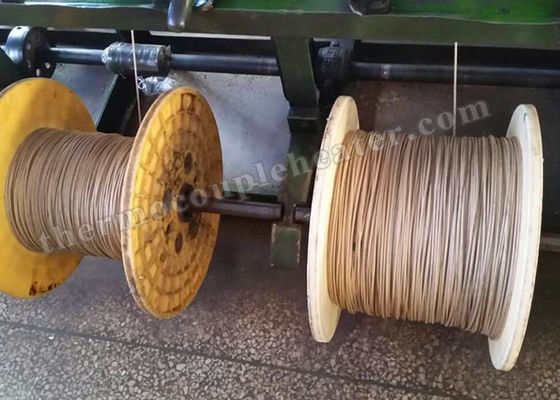

Heating Elements High Temperature Wire
1. High Temperature Cable Brief Introduction
Wiring of heating elements, cartridge, bands and hot plates. Domestic electrical heating application, professional kitchens and ovens. Machine for thermoplastics and rubber, etc... Furnaces and industrial ovens.
2. High Temperature Cable Characteristics
3. High Temperature Cable Parameter.
|
Retad voltage |
600V |
|
Retad temperature |
450°C |
|
Insulation |
Mica,glass |
|
Conductor |
Nickel-plated copper wire |
|
Standards |
UL758 |
|
Application |
home appliances/ leds/industrial machine |
|
Unit length |
305,100 |
|
Size |
AWG26-4 |
|
Color |
white,black,red,brown,yellow,blue,green,transparent etc. |
|
Conductor |
Insulation |
Diameter |
Unit length |
|||
|
Size |
Construction |
Diameter |
Mica |
Glass |
||
|
26 |
7/0.16 |
0.48 |
≥0.635 |
0.181 |
≥2.15 |
305 |
|
24 |
7/0.20 |
0.61 |
≥0.635 |
0.181 |
≥2.25 |
305 |
|
22 |
7/0.25 |
0.77 |
≥0.635 |
0.181 |
≥2.40 |
305 |
|
20 |
7/0.31 |
0.94 |
≥0.635 |
0.181 |
≥2.60 |
305 |
|
18 |
16/0.254 |
1.19 |
≥0.635 |
0.181 |
≥2.85 |
305 |
|
16 |
26/0.254 |
1.49 |
≥0.635 |
0.181 |
≥3.15 |
305 |
|
14 |
41/0.254 |
1.87 |
≥0.635 |
0.181 |
≥3.50 |
200 |
|
12 |
65/0.254 |
2.36 |
≥0.762 |
0.381 |
≥4.65 |
100 |
|
10 |
35/0.45 |
3.06 |
≥0.762 |
0.381 |
≥5.35 |
100 |
|
8 |
67/0.40 |
3.75 |
≥0.762 |
0.381 |
≥6.05 |
100 |
|
6 |
266/0.254 |
4.75 |
≥0.762 |
0.381 |
≥7.05 |
100 |
|
4 |
420/0.254 |
6.02 |
≥0.762 |
0.381 |
≥8.25 |
100 |
4. Application
Apply to household appliance,Illumination & lighting & headlamp,electric machines,temperature sensor,Military series,metallurgy chemical series,motor cars & ships,electrical installation.
