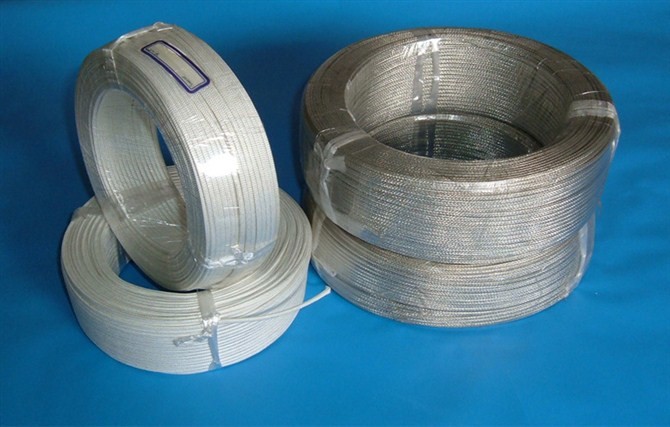

Quality Reliable High Voltage High Temperature Cable Electric Cable , 450V / 750V

Quality Reliable High Voltage High Temperature Cable Electric Cable , 450V / 750V

Quality Reliable High Voltage High Temperature Cable Electric Cable , 450V / 750V

Product Details:

Place of Origin: China
Brand Name: GME
Certification: CCC,IEC,UL,etc

Payment & Shipping Terms:

Minimum Order Quantity: 50M
Packaging Details: Standard export packing
Payment Terms: T/T, Western Union
Supply Ability: 1000 Pieces per Day
Contact Now
Detailed Product Description
Insulation Material:: PE Or XLPE Color:: To Your Option
Type:: High Voltage Conductor Size:: 0.5-240sqmm
Conductor NO.:: 1-5 Cores Rated Voltage:: 450V / 750V
Highlight:

high temperature electrical cable

,

high temperature insulated wire

1. Product description

Insulation Material: PE or XLPE Type: High Voltage Application: Industrial &Entertainment place
conductor size: 0.5-240sqmm conductor NO.: 1-5 cores standard: CCC,IEC,UL,etc
conductor type: solid or stranded rated voltage: 450V / 750V shealth material: PVC
supplier: professional manufacture color: to your option application: eletrical installation

2. Specifications

1.OEM service offered free of charge.
2.Fast delivery.
3.20 years guarantee for the cable.

The standards

The power cable is mainly complying with IEC 60502 standard, also can be produced according to OEM requirements and other standards, such as BS, DIN, ASTM, VDE, NFC standards, and so on.



The construction of the power cable for different voltage grade

1 low voltage cable power cable

Low voltage (0.6/1 kv)

single core or multi-core

copper or aluminium conductor

pvc inusulation

steel tape armored or galvanized steel wire armored or unarmored

pvc outer sheath

power cable.



2 medium voltage cabel power cable

Voltage grade is up to 35kv,

cross-section area can be up to 1000 sqmm (copper or aluminiun conductor).

Conductor long-time operating temperature is 90 degrees.

In short circuit, conductor highest temperature should be not more than 250 degrees.

1kv-35 kv

multi-cores

copper or aluminium conductor

xlpe insulation

copper tape or copper wire screen

galvanized steel wire armored

pvc or pe sheath

power cable



3 high voltage cable power cable

High voltage (35kv~220kv)

copper or aluminium conductor

xlpe insulation

metal sheath (lead or corrugated aluminium)

hdpe or pvc outer sheath power cable.

Laying conditions: for lyaing under ground with large different altitude, be able to bear external machanical force and moderate pulling force.



The power cable's characteristic:

3.1 long time operating temperature for cable conductor is 90 degrees.

3.2 the highest temperature of the conductor in short circuit (no longer than 5 seconds) in not more than 250 degrees,

if a joint is in the cable, the temperature of the tinning welding joint is not more than 120 degrees, compressing joint not more than 150 degrees and electro-welding joint not more than 250 degrees.

3.3 no drop in limited provided there is full mechanical tention when cable is laid. It si forbidden to lay cable in iron-pipe or to fix cable by circling around the cable with iron materials.

3.4 being laid, the minimum temperature of the cable shall not be lower than zero degree. In the case of lower temperature, heating measures shall be taken.

We can also supply the OEM and customized products according to your request





4. Packaging & Delivery

Packaging Details: plastic bag or carton box for 3x3mm Spring Hot Runner Coil Heater
Delivery Detail: depend on the order quantity
