Stainless Exchange Cartridge Heaters with High Temperature Resistance

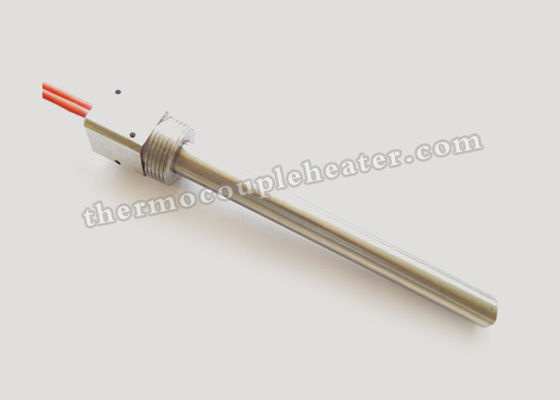

Large Image : Stainless Exchange Cartridge Heaters with High Temperature Resistance

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	ISO/CE/UL/CSA

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	USD 1-100 FOB Shanghai/pc
Packaging Details:	Exported Case Packing
Delivery Time:	7-15Wroking Days
Payment Terms:	T/T, Western Union, L/C,PayPal
Supply Ability:	10000pcs/Month

Contact Now

Detailed Product Description

Product Name:	Cartridge Heater	Application:	Industrial Heating
Maximum Temperature:	800°C	Warranty:	One Year
Thermocouple:	K Or J	Length:	15mm - 10m
Wattage:	0.5-15KW
Highlight:	electric cartridge heaters , cartridge heater with thermocouple

Exchange Cartridge Heater with High Temperature Resistance

5.1 Technical Specifications:

No.	Item	Specification Data
1	Shell Material	Stainless Steel 201/304/316/316L
2	Diameter	Φ3mm - 30mm
3	Length	15mm - 10m
4	Voltage	12V - 480V
5	Power	10W - 50KW
6	Wire Lead-out Mode	Mode 1: Inner Lead-out
6	Wire Lead-out Mode	Mode 2: Outer Lead-out
7	Lead Wire Options	Option 1: Galvanized Copper Wire (Heat-resistance of 300℃)
		Option 2: Pure Nickel Wire (Heat-resistance of 500-1000℃)
		Option 3: customized
8	Length of Lead Wire (mm)	customized

No.	Item	Technical Index
1	Insulation	≥5000MΩ
2	Withstand Voltage	≥1800V/5S
3	Leakage Current	≤0.25mA
4	Resistivity (Ω)	+5%-8%
5	Straightness	≤0.03mm/1m
6	Tolerance of Length	±1 mm
7	Tolerance of Diameter	0~-0.2mm
8	Tolerance of Lead Wire	±3mm
9	Working Temperature	Max.800℃
10	Further technical requests from the customer can be met by us.

5.2 Description

Cartridge heaters are developed for high temperature applications.

Helically wound resistance coil is placed inside the tube filled with MGO powder and compacted for faster and efficient heat transfer.

Cartridge heater is a piece of heating elements made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr20/80). It is used to heat in plastic injection moulds, dies, platens ….

Cartridge heater plays an important role in electric heating elements, which is widely used in industry mould heating. Compared with the same heating element of high thermal, cartridge heater can save 5% of electric materials, and heat efficiency can reach 90%. Cartridge heater is cylindrical electrical heating elements with stainless steel sheath, which watt density can reach 25 W/cm2 and their operating temperature can go up to 800°C (1472°F)

5.3 Applications

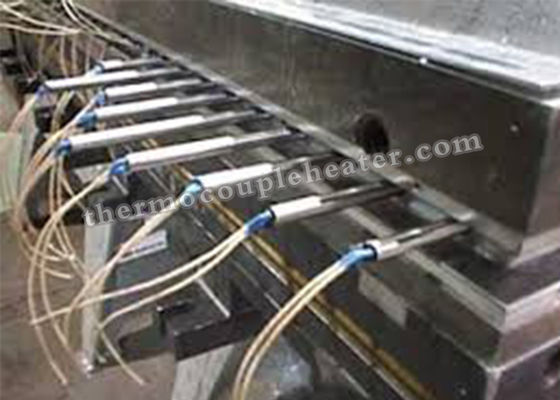

1. Mold Heating

2. Heating System of Plastic Machinery

3. Pharmaceutical Production Line

4. Heat Treatment Test in Laboratory

5. Chemical Industry

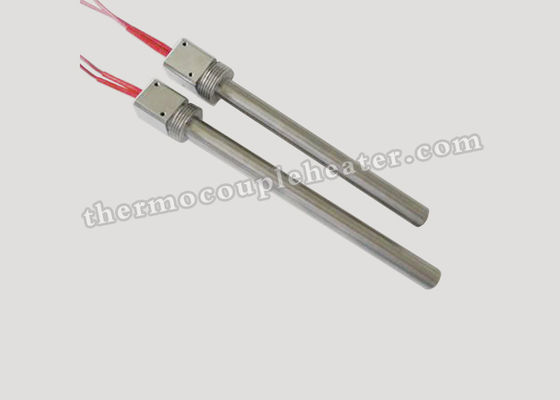

Stainless Exchange Cartridge Heaters with High Temperature Resistance 0

5.4 Features

Nickel chrome resistance wire
Available in SS 304 and 316
Maximum temperature 800°C
