Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Certification: | ISO9001 / CE |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or wooden crate or as per your request |
| Delivery Time: | 10 working days or above |
| Payment Terms: | L/C, T/T,PAYPAL |
| Supply Ability: | 100000pcs per month |
| Product Name: | Heat Only Cast In Heaters For Plastic Processing | Application: | Industrial Heating |
|---|---|---|---|
| Voltage: | 120, 240, 480 Standard , Special Voltage To Order. | Wattage: | Aluminum Up To 35 W/in2 Bronze Up To 50 W/in |
| Alloy Material Casted: | Aluminum Or Bronze | Heating Wire: | Nickel Chrome Wire |
| Highlight: | cast aluminum heaters,Cast In Heaters |
||

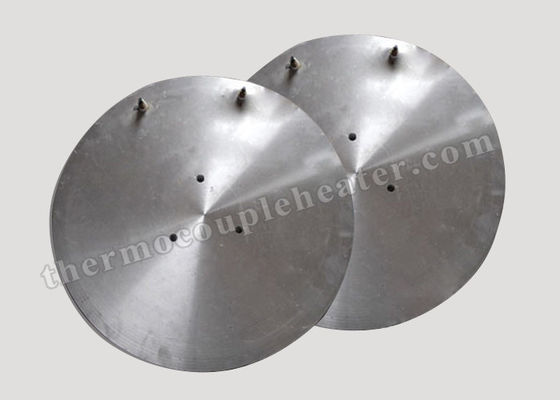

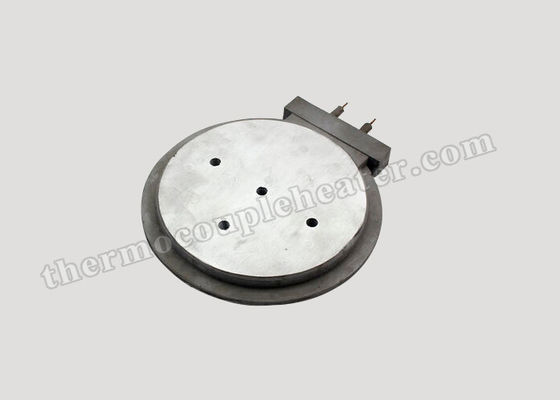

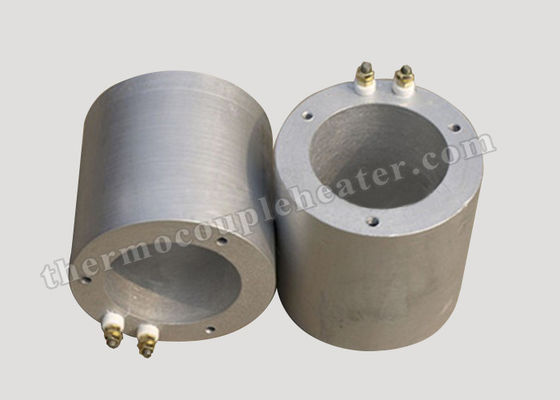

Heat Only Cast In Heaters For Plastic Processing
Description
Heat-only Cast In Heaters are typically used when no cooling is required. Although they are not a common design, but they are available primarily with the stainless steel mounting strap option. This design is standardly 1" thick and can be used with all standard electrical terminations . The cast-in heat only design can be used on piping areas that are typically more difficult to heat such as elbows and joint areas. The cast-in heater can also be cast directly onto pipe elbows or other areas to produce an integral heated part in specific applications such as feed pipes or heat exchangers. Designs are available in both aluminum and bronze alloys.
Specification
|
Size |
Customized |
|
Voltage |
120, 240, 480 Special voltage to order |
|
Wattage |
Aluminum 35 watts/sq |
|
Bronze 50 watta/sq |
|
|
Max Temperature |
Aluminum 700 deg |
|
Bronze 1000 deg |
|
|
Option |
cooling tube |
|
end fitting |
|
Cast Materials |
Max Operating Temperature |
|
Aluminum |
371°C |
|
Bronze/Copper alloys |
769°C |
|
Iron |
482°C |
Features
1. Long service life
2. Dependable
3. Rugged construction
4. Uniform surface temperature
Application
|
1 |
Injection and Blow Moulding |
|
2 |
Extruders |
|
3 |
Moulds & Dies |
|
4 |
Packaging machinery |
|
5 |
Medical equipments |
|
6 |
Thermoforming equipment |
