Brass Coil Heater with Integrated Type J Thermocouple for Hot Runner System

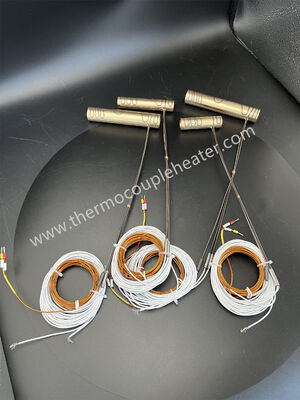

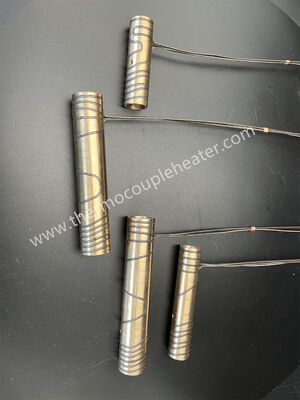

Large Image : Brass Coil Heater with Integrated Type J Thermocouple for Hot Runner System

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	USD1-USD100
Packaging Details:	cartons， pallet
Delivery Time:	7~10 working days
Payment Terms:	T/T,Western Union,,L/C
Supply Ability:	100000 pcs per Month

Contact Now

Detailed Product Description

Voltage:	12V – 440V	Power:	195W-690W
Sheath Material:	304 / 316L Stainless Steel, Copper	Resistance Wire:	Cr20Ni80
Max Power Density:	9W/cm²	Thermocouple Type:	Type J, K, Or E
Highlight:	Brass coil heater with thermocouple , Integrated Type J thermocouple heater , Hot runner system coil heater

Product Overview

This series of jacket heaters features a versatile range of diameters and lengths, custom-engineered to match various hot runner nozzle dimensions. Built with a high-quality stainless steel or copper inner sleeve, the heater incorporates high-density heating coils in various winding cross-sections (round, square, or flat). It offers superior thermal uniformity and low thermal inertia, with optional integrated K, J, or E-type thermocouples for precise closed-loop temperature control.

Technical Specifications

Sheath Material	304 / 316L Stainless Steel, Copper
Resistance Wire	Cr20Ni80
Insulation Material	High-Purity Magnesium Oxide (MgO)
Operating Voltage	12V – 440V
Max Power Density	9W/cm²
Resistance Tolerance	±10%
Dielectric Strength	800V AC
High-Voltage Stability	Leakage current < 0.5mA at 1000V for 30 seconds
Standard Leads	1000mm PTFE-insulated lead wire (rated > 300°C)
Cold Zone Length	50mm (standard); custom sizes available
Cold Zone Adapter Diameter	8 x 30mm / 6.35 x 25mm (optional)
Surface Treatment	Original Bright, Silver Sandblasted, or Black Finish
Operating Lifespan	10,000 hours at ≤ 400°C; 2,000 hours at 700°C
Thermocouple Options	Integrated Type J, Type K, or Type E

Applications

Hot Runner Systems & Plastic Injection Molding
Packaging Machinery & Sealing Equipment
Medical & Laboratory Equipment
Casting & Die-Casting Processes
Industrial Electric Heating Equipment
