Stainless Steel Hot Runner Coil Heater Element for Injection Molding & Fog Machine

Large Image : Stainless Steel Hot Runner Coil Heater Element for Injection Molding & Fog Machine

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	Negotiable
Packaging Details:	cartons， pallet
Delivery Time:	7~10 working days
Payment Terms:	T/T,Paypal,L/C
Supply Ability:	100000 pcs per Month

Contact Now

Detailed Product Description

Power Source:	Electric	Dimension:	Customized
Voltage:	120V, 220V, 240V, 380V	Sheath Material:	Stainless Steel Or Nickel
Cross Section:	3.0x3.0, 3.3x3.3, 4.50x4.50 Mm	Style:	Straight Or Coil
Lead Wire:	, Fiberglass , Metal Mesh	Coiling Scheme:	Tangential, Radial Exits, Axial
Material:	Brass And Stainless Steel	Application:	Manifolds, Hot Runner/ Injection
Color:	Silver Or Fully Black	Max Temperature:	1200°F (650°C)
Thermocouple Type:	J-type Or K-type	Dielectric Strength:	800V A/C
Highlight:	Stainless Steel Hot Runner Coil Heater , Coil Heater for Injection Molding , Coil Heater Element for Fog Machine

Product Overview

Engineered for demanding industrial environments, our Hot Runner Coil Heaters deliver continuous operating temperatures up to 1200°F (approx. 650°C). Built with low-mass construction, these heaters ensure rapid heating and cooling cycles alongside high thermal conduction. All internal heating elements are meticulously sealed against contamination, while the chrome-nickel resistance wire (NiCr 80-20) and stainless steel sheath provide maximum corrosion resistance and rigid structural integrity.

Key Technical Specifications

Built-in Thermocouple	Available with or without optional J-type (Standard) or K-type thermocouple for precise thermal control.
Outer Sheath Options	Choose from nylon, metal braided, fiberglass, silicone rubber, or kevlar.
Electrical Performance	Dielectric electrical strength of 800V A/C with insulation resistance > 5 MΩ.
Tolerances	Wattage tolerance ±10% (±5% available upon request); Resistance tolerance ±10% (±5% available upon request).
Standard Dimensions	Unheated length of 35 mm standard; fully customizable for diverse shapes and sizes.

Applications

Ideal for injection moulding machine nozzles, hot runner manifolds, PET preform & thin-wall container moulds, packaging machinery, and blow moulding machine nozzles.

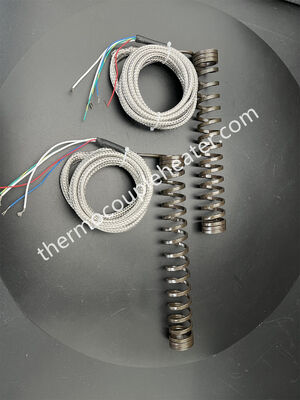

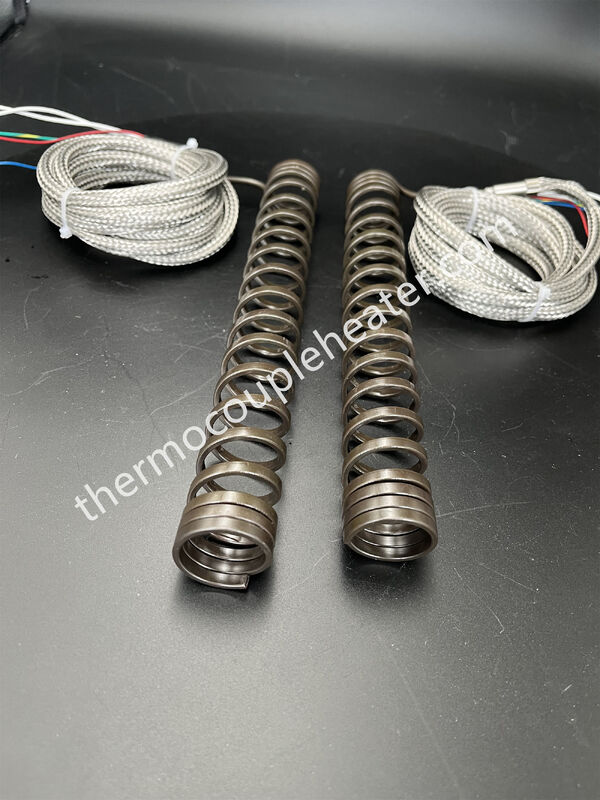

Stainless steel hot runner coil heater element with optional thermocouple and braided sheath.
