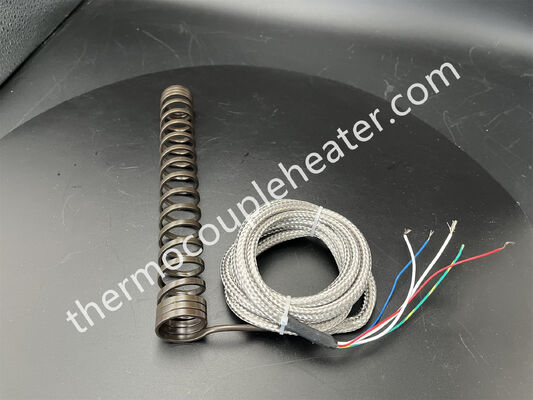

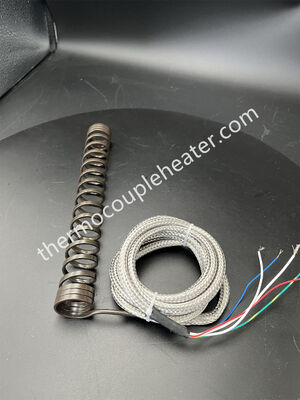

Industrial Hot Runner Coil Heater | High-Temperature Nozzle & Runner Heating Element for Plastic Injection Molding Systems

Large Image : Industrial Hot Runner Coil Heater | High-Temperature Nozzle & Runner Heating Element for Plastic Injection Molding Systems

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	Negotiable
Packaging Details:	cartons， pallet
Delivery Time:	7~10 working days
Payment Terms:	T/T,Paypal,L/C
Supply Ability:	100000 pcs per Month

Contact Now

Detailed Product Description

Cross Section:	3.0x3.0, 3.3x3.3, 4.50x4.50 Mm	Dielectric Strength:	800V A/C
Max Temperature:	1200°F (650°C)	Thermocouple Type:	J-type Or K-type
Voltage:	120V, 220V, 240V, 380V	Sheath Material:	Stainless Steel Or Nickel
Highlight:	Industrial hot runner coil heater , High-temperature nozzle heating element , Plastic injection molding coil heater

Product Overview

Engineered specifically for plastic injection molding manifolds and nozzle systems, this Hot Runner Coil Heater delivers uniform thermal distribution, rapid heat transfer, and exceptional reliability. Built with high-density heating elements and encased in a premium stainless steel or heavy-duty brass sheath, it is designed to endure high continuous operating temperatures and intense mechanical pressure.

Key Technical Features

Optimized Thermal Profiling

Precision-wound coils provide uniform, concentrated heat distribution to prevent cold spots and ensure consistent melt flow inside injection nozzles.

High-Density Construction

Features high-purity MgO insulation and nickel-chrome resistance wire for fast thermal response and extended operational lifespan.

Integrated Thermocouple Options

Available with built-in Type K or Type J thermocouples for precise, real-time closed-loop temperature control.

Heavy-Duty Protection

Equipped with flexible stainless steel braided leads or armor cable to protect lead connections against mechanical wear and molten resin spillage.

Applications

Hot runner nozzles and manifolds in plastic injection molding
PET preform molds and thin-wall packaging container manufacturing
Extrusion dies, sealing jaws, and high-temperature heating manifolds
