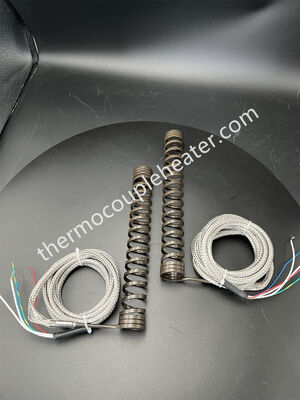

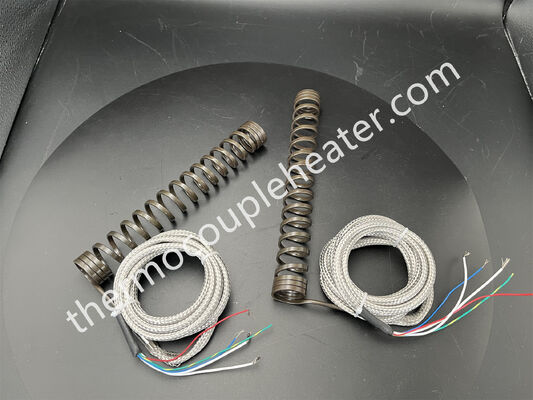

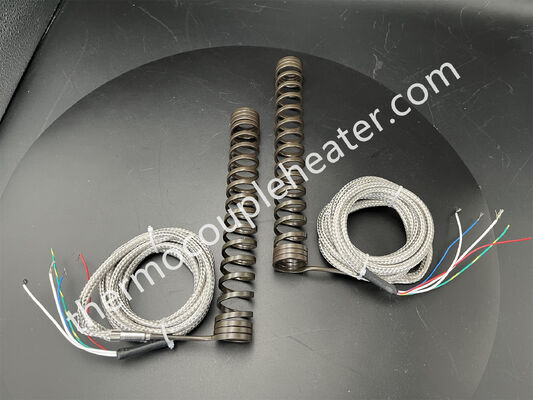

Stainless Steel Hot Runner Coil Heater Element | High-Density Spring Heating Coil for Injection Molding & Fog Machines

Large Image : Stainless Steel Hot Runner Coil Heater Element | High-Density Spring Heating Coil for Injection Molding & Fog Machines

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	Negotiable
Packaging Details:	cartons， pallet
Delivery Time:	7~10 working days
Payment Terms:	T/T,Paypal,L/C
Supply Ability:	100000 pcs per Month

Contact Now

Detailed Product Description

Sheath Material:	Stainless Steel 304/316/316L/Incoloy 800	Max Temperature:	750°C (1382°F)
Cross Section:	3.0x3.0, 3.3x3.3, 4.50x4.50 Mm; Round 2.0/3.0/4.0 Mm	Dielectric Strength:	800V A/C
Thermocouple Type:	J-type Or K-type	Voltage:	120V, 220V, 240V, 380V
Highlight:	Stainless Steel Hot Runner Coil Heater , High-Density Spring Heating Coil , Injection Molding Coil Heater

Key Features & Industrial Performance

Premium Material: Constructed with a heavy-duty Stainless Steel 304/316 sheath offering high oxidation resistance and mechanical strength under high heat.
Precise Temperature Control: Engineered for fast thermal response, uniform heat distribution, and stable temperature performance.
Compact Spring/Coil Design: High power density in limited space, flexible for tight mold cavities and cylindrical nozzle heating.
Built-in Thermocouple Option: Available with integrated J-Type or K-Type thermocouples for precise closed-loop heat monitoring.

Application Scenarios

Plastic Injection Molding: Hot runner nozzles, manifolds, bushing heaters, PET preform molds, and extrusion machinery.
Commercial & Industrial Fog Machines: High-efficiency heating core for rapid fluid vaporization, haze machines, and stage effect equipment.
Packaging & Sealing Equipment: Heat-sealing bars and hot stamping dies.

Standard Specifications & Capabilities

Sheath Material	Stainless Steel 304 / 316L / Incoloy 800
Max Sheath Temperature	Up to 750°C (1382°F)
Insulation Material	High-Purity Compressed MgO Powder
Cross-Section Profile	Round (2.0mm, 3.0mm, 4.0mm) / Flat / Square (3x3mm, 4x4mm)
Thermocouple Options	Built-in Type J / Type K / Without TC
Lead Wire Type	Fiberglass, PTFE, or Stainless Steel Braided Lead Wire (300mm+)
