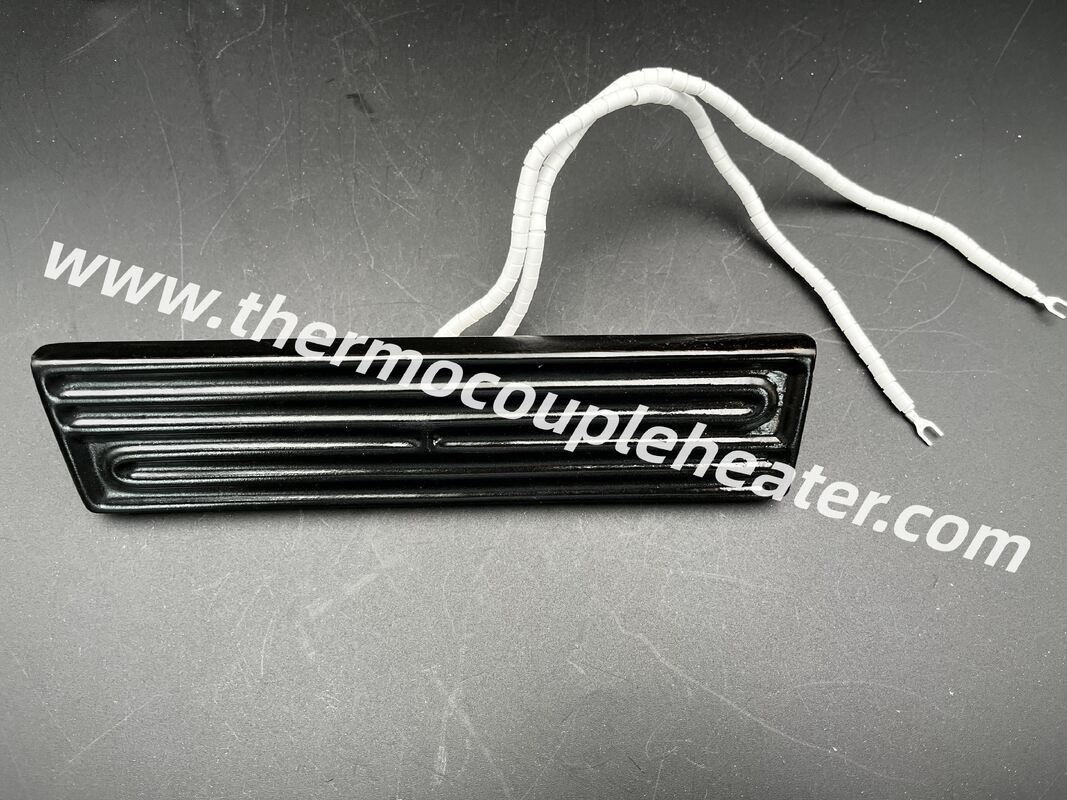

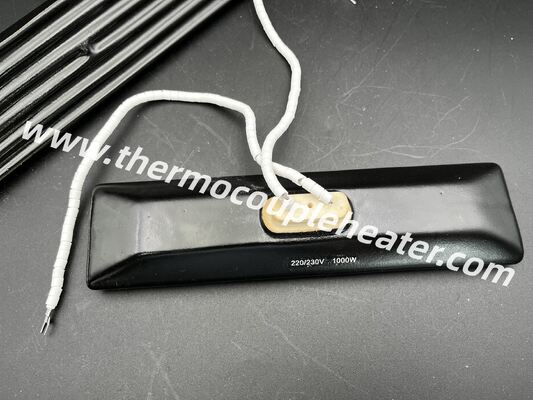

220V 1KW Infrared Ceramic Heater Panels with Ceramic Bead Leads

Large Image : 220V 1KW Infrared Ceramic Heater Panels with Ceramic Bead Leads

Product Details:

Place of Origin:	China
Brand Name:	GME

Payment & Shipping Terms:

Minimum Order Quantity:	20 pcs
Price:	1-100 US$
Packaging Details:	Standard exporting package
Delivery Time:	1-3 weeks
Payment Terms:	L/C,T/T,Paypal
Supply Ability:	200,000 pcs per month

Contact Now

Detailed Product Description

Power:	1000W	Voltage:	220V AC
Max Temperature:	850°C	Surface Dimensions:	245mm X 60mm
Lead Cable Length:	300mm	Material:	Ceramic
Highlight:	220V infrared ceramic heater panels , 1KW ceramic radiant heater , ceramic heater with bead leads

Key Performance Advantages

Durable Ceramic Construction: Engineered with high-strength ceramic materials that resist thermal shock and mechanical vibration during continuous operation up to 850°C.
300mm Ceramic Bead Protection: Pre-equipped with a 300mm lead cable protected by interlocking ceramic beads, ensuring maximum dielectric strength and thermal insulation in high-density installations.
Compact 245×60mm Geometry: Standardized rectangular footprint allows easy modular mounting in multi-zone heating arrays and automated oven banks.
High Emissivity Black Finish: Optimized dark ceramic glaze delivers consistent long-wave infrared radiation for uniform material absorption.

Technical Data

Model Style	Industrial Ceramic Infrared Radiator
Dimensions	245mm Length × 60mm Width
Voltage / Wattage	220V / 1000W
Temperature Threshold	850°C
Lead Wire Spec	300mm length with ceramic bead insulation

Recommended Field Uses

Ideal for plastic processing equipment, infrared shrink packaging tunnels, industrial curing setups, and custom-built OEM thermal machinery.
