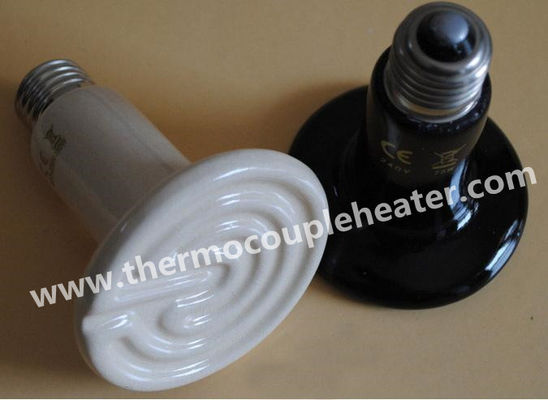

220V 230V Non Corrosive Finish Ceramic Infrared Heaters

Product Details:

Place of Origin:	China
Brand Name:	GME

Payment & Shipping Terms:

Minimum Order Quantity:	20 pcs
Packaging Details:	Standard exporting package
Delivery Time:	1-3 weeks
Payment Terms:	L/C, Western Union, T/T, Paypal
Supply Ability:	200,000 pcs per month

Contact Now

All Products

Coil Heaters (338)

Thermocouple RTD (304)

Mineral Insulated Thermocouple Cable (34)

Thermocouple Compensating Cable (66)

Cartridge Heaters (148)

Cast Heater (36)

Tubular Heater (91)

High Temperature Cable (30)

Thermocouple Connection Head (59)

Hot Runner Temperature Controller (22)

Thermocouple Thermowell (26)

Sacrificial Anodes (10)

Thermocouple Components (167)

Mica Insulated Band Heaters (30)

Ceramic Heaters (4)

Electric Heater Components (35)

Heater Making Machine (14)

Detailed Product Description

Material:	Ceramic	Shape:	Flat, C-shape, Square, Round
Color:	White, Black, Yellow	Voltage:	120V, 220V, 230V, 240V, 480V
Power:	100W-1000W	Thermocouple:	Available
High Light:	Non Corrosive Finish Ceramic Infrared Heaters , 230V Ceramic Infrared Heaters , 220V Ceramic IR Heater

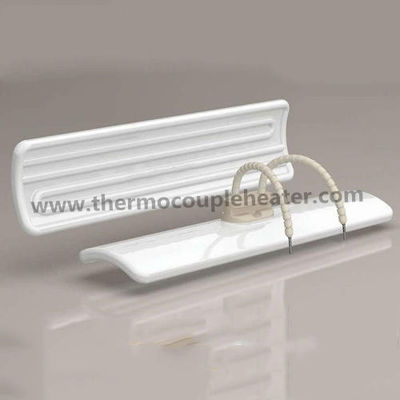

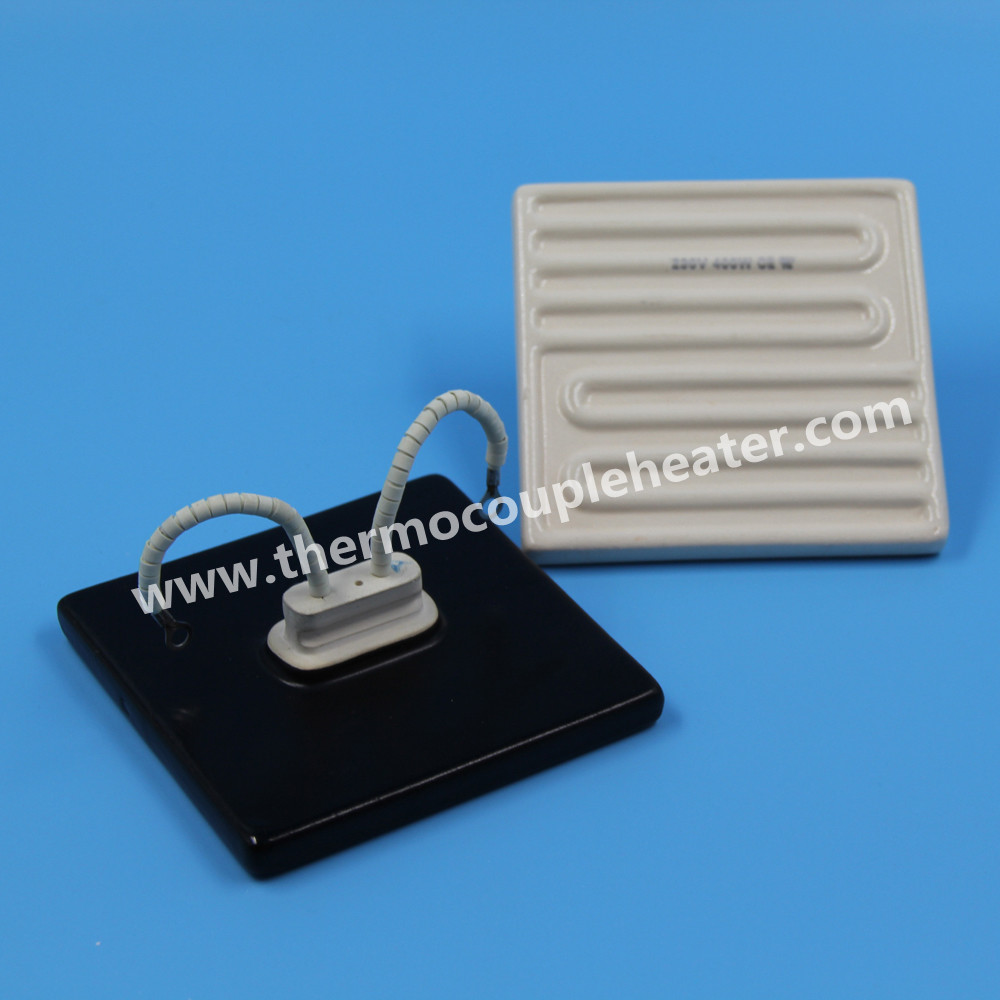

Ceramic Heater Infrared Lamp Heating Panels Medium To Long Wave

1. Introduction

Ceramic infrared heaters are 96% infrared energy efficient, uses for electric infrared heat can be found in many industries and applications and can be grouped into four major categories:

1) Curing

2) Drying

3) Heating

4) Cooking

5) Saunas

2. Technical data

Heat founder have has a wide range of IR ceramic heaters in ceramic and quartz, available WITH thermocouple and without thermocouple from 60 to 1000W

Standard Size (mm) Can be customized	Type	Shape	Color (Can be customized)	Power	Thermocouple ( K, J type )
60*60	Hollow, Solid	Flat, Arc, Round	White, Black, Yellow, Pink	100w - 300w	Insertion type or Sintered type
122*60	Hollow, Solid	Flat, Arc, Round	White, Black, Yellow, Pink	125w - 500w	Insertion type or Sintered type
122*122	Hollow, Solid	Flat, Arc, Round	White, Black, Yellow, Pink	150w - 1000w	Insertion type or Sintered type
245*60	Hollow, Solid	Flat, Arc, Round	White, Black, Yellow, Pink	150w - 1000w	Insertion type or Sintered type
