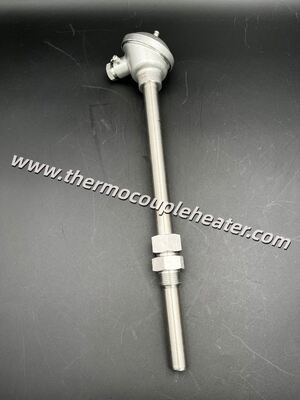

Customized K-Type Thermocouple With Integrated 4-20mA Transmitter Made in China

Large Image : Customized K-Type Thermocouple With Integrated 4-20mA Transmitter Made in China

Product Details:

Place of Origin:	China
Brand Name:	GME

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Price:	1-100US $
Packaging Details:	Standard Exporting Cases
Delivery Time:	10-15 working days
Payment Terms:	T/T,Paypal
Supply Ability:	100,000 pcs per month

Contact Now

Detailed Product Description

Sensor Type:	Type K Thermocouple	Output Signal:	4–20mA Loop Powered
Accuracy Class:	Class 1	Process Connection:	G3/4" Thread
Sheath Material:	SUS316 Stainless Steel	Mounting:	Bayonet Fitting
Highlight:	Customized K-Type Thermocouple , K-Type Thermocouple 4-20mA Transmitter , Integrated Thermocouple Transmitter

Typical Applications

Continuous high-temperature monitoring in automated PLC and DCS control loops.
Industrial furnaces, kilns, and heat treatment lines requiring stable long-distance signal transmission.
Chemical manufacturing and fluid process thermal monitoring.

General Description

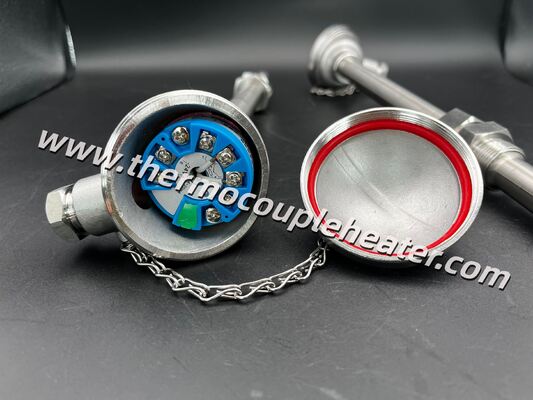

Eliminate signal degradation over long wiring runs with this integrated temperature assembly. Equipped with a built-in 4-20mA temperature transmitter, this unit converts raw thermoelectric voltages directly into a stable, noise-resistant industrial current signal.

Technical Parameters

Input Type	Type K Thermocouple
Transmitter Output	4-20mA Loop Powered
Process Connection	G3/4" Threaded Thermowell and Hex Nut
Physical Build	Stainless Steel Connection Head with SUS316 Protection Tube

Selection & Comparison Guide

Transmitter vs. Direct Wiring: Built-in 4-20mA transmitters prevent electromagnetic interference (EMI) and significantly reduce cabling expenses compared to running unamplified thermocouple extension wires.

Custom Specs & Signal Options

Available with custom temperature transmitter spans and programmable output curves for precise integration into existing automation systems.
