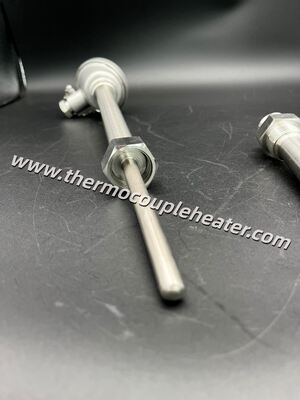

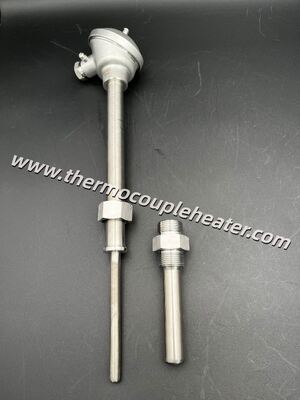

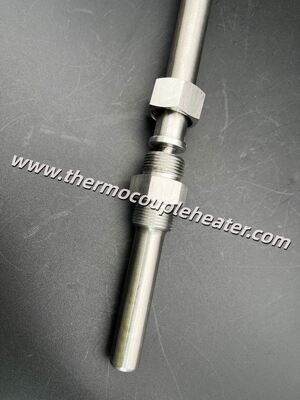

SUS316 Stainless Steel K-Type Thermocouple With Heavy-Duty Protection Assembly

Large Image : SUS316 Stainless Steel K-Type Thermocouple With Heavy-Duty Protection Assembly

Product Details:

Place of Origin:	China
Brand Name:	GME

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Price:	1-100US $
Packaging Details:	Standard Exporting Cases
Delivery Time:	10-15 working days
Payment Terms:	T/T,Paypal
Supply Ability:	100,000 pcs per month

Contact Now

Detailed Product Description

Sensor Type:	Type K Thermocouple	Sheath Material:	SUS316 Stainless Steel
Accuracy Class:	Class 1	Output Signal:	4–20mA Loop Powered
Temperature Range:	0 To 1260°C	Process Connection:	G3/4" Thread
Highlight:	SUS316 K-Type Thermocouple , Heavy-Duty Thermocouple Protection Assembly , Stainless Steel Thermocouple Probe

Product Overview

Engineered for harsh industrial processing environments, this heavy-duty K-type thermocouple assembly features a robust stainless steel connection head and a premium SUS316 thermowell. It delivers exceptional structural integrity and resistance against high pressure, mechanical wear, and chemical corrosion in demanding thermal lines.

Key Specifications

Sensor Element	Type K Thermocouple
Wetted Parts Material	SUS316 Stainless Steel Thermowell
Enclosure	Stainless Steel Connection Head
Dimensions & Mounting	Neck Diameter 20 × 200 mm \| Hex Nut G3/4" Thread (19.5 mm)
Protection Sheath	Sensor Diameter 10 mm × Insertion Length 115 mm; Thermowell Diameter 18 mm × Overall Length 127 mm with G3/4" Thread

Core Material Advantages

Superior Corrosion Resistance: SUS316 stainless steel offers advanced pitting protection against aggressive industrial gases and liquids at elevated temperatures.
Robust Mechanical Shielding: The heavy-duty thermowell safeguards the internal thermocouple core from high-velocity media and continuous physical stress.

Customization Options

Custom Fabrication: Fully customizable based on customer technical drawings or physical samples to meet exact site requirements.
Flexible Sheath Dimensions: Custom insertion lengths, thermowell outer diameters, and neck extensions are available upon request.
Process Thread Adaptation: Alternative thread standards (such as NPT or BSP) and custom mounting hardware can be tailored to match specific plant piping layouts.
