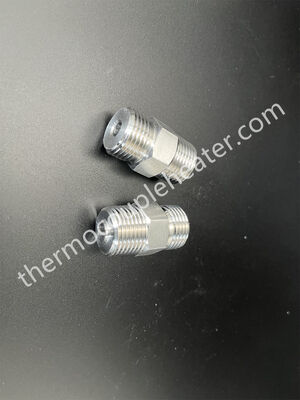

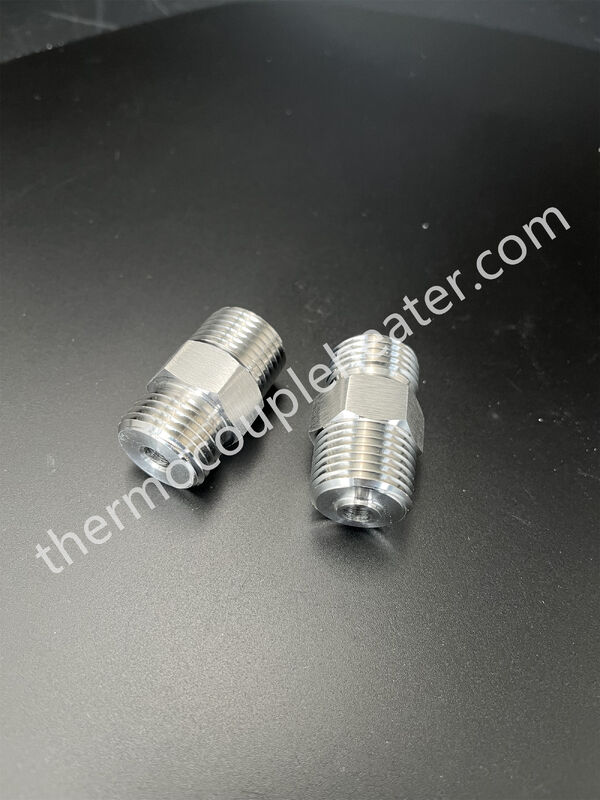

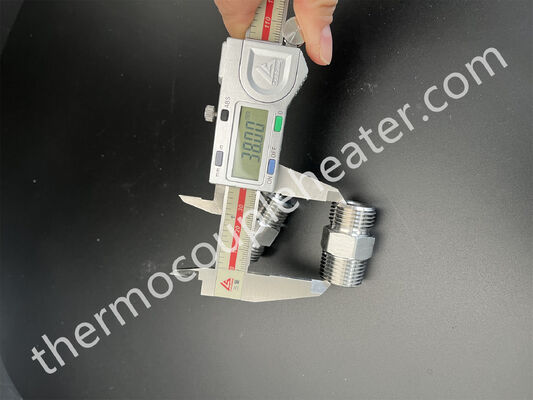

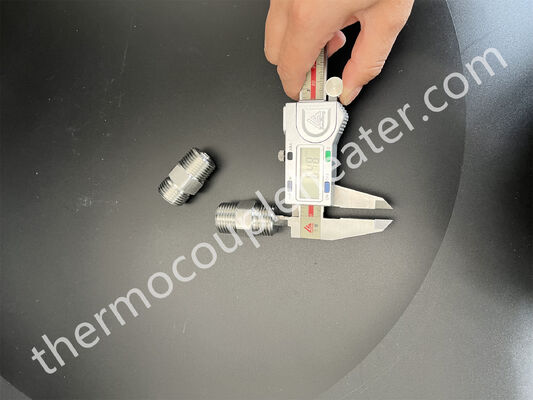

Thermocouple Compression Fittings Stainless Steel as thermocouple connector

Thermocouple Compression Fittings Stainless Steel as thermocouple connector
Thermocouple Compression Fittings Stainless Steel as thermocouple connector Thermocouple Compression Fittings Stainless Steel as thermocouple connector Thermocouple Compression Fittings Stainless Steel as thermocouple connector Thermocouple Compression Fittings Stainless Steel as thermocouple connector

Large Image :  Thermocouple Compression Fittings Stainless Steel as thermocouple connector

Product Details:
Place of Origin: China
Brand Name: GME
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Packaging Details: cartons， pallet
Delivery Time: 7~10 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 100000 pcs per Month
Contact Now
Detailed Product Description
Power Source: Electric Temperature Range: -200~650℃
Voltage: 12-480V Probe Material: SS304/SS316
Style: B/R/S/W, KB-602; KS-602; KR-602; KW-602;604 Pairs Quantity Of Element: Simplex/duplex
Heating Element: Nichrome Resistance Mounting: Thread/flange/none
Function: Temperature Sensor Feature: Economical
Types Of Terminal Box: Anti-spray/water-proof Connection: Thread
Sample: Available
Highlight:

stainless steel thermocouple compression fittings

,

thermocouple connector compression fittings

,

thermocouple components stainless steel fittings

Thermocouple Compression Fittings Stainless Steel as thermocouple connector



Description:

1.Sizes range from 1/16" to 1 1/2" and 2 mm to 38 mm.
2.Diverse materials and configurations are available.
3.Precision machined components ensure perfect deformation of the ferrules and tubing.
4.Radius junction design with elbows provides smooth flow path.
5.Every fitting is stamped with size, material, and heat code.
6.Fittings are easy to disconnect and retighten.
7.Hardened threads and smoothed surface finishes extend fitting life and prevent sticking of the matching threads.



Material
Minimum Temperature
Maximum Temperature
Stainless Steel
-325°F(-198°C)
800°F(426°C)
Brass
-325°F(-198°C)
400°F(204°C)
Alloy 400/R-405
-325°F(-198°C)
800°F(426°C)
Product name
thermocouple fitting male connector bored through connector for thermowell double ferrule tube fitting
Material
Stainless steel, brass, monel 400,alloy c276,duplex 2205,2507...
Size
1/16" to 1 1/2" and 2 mm to 38 mm
Nominal pressure
up to 6000-10000 PSI
Technics
Forged
Thread Standard
NPT,BSP,BSPT,G,SAE,PT,RP,ISO and etc
Applicable medium
oil,gas,water or other medium
Payment term
stock products 100%payment before shipping out . In generally,30%deposit , 70%balance against B/L copy, L/C is also acceptable
Packaging
each one in poly bag and small box, then in export wooden case




Other detail


1)Safe, reliable and leak-proof connection;
2)Easy to install ,disconnect and retighten;
3)No torque is transmitted to tubing during installation
4) Specified specification available upon request
5) Quality assurence
6) Free sample can be sent to test quality before place an order.


Thermocouple Compression Fittings Stainless Steel as thermocouple connector








Tag:

thermocouple assemblies,

thermocouple parts and components,

thermocouple accessories
