DANW Thermocouple Terminal Head for assembly-style thermocouples or RTDs

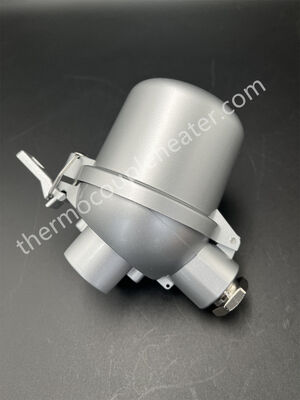

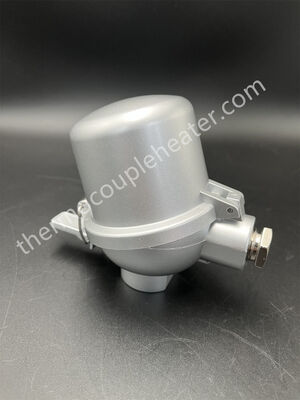

Large Image : DANW Thermocouple Terminal Head for assembly-style thermocouples or RTDs

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	cartons， pallet
Delivery Time:	7~10 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	100000 pcs per Month

Contact Now

Detailed Product Description

Material:	Aluminum Alloy	Material Of Wire:	Nickel Plated Iron/brass
Voltage:	12-480V	Probe Material:	Stainless Steel, Inconel600
Model Number:	BA/KD	Heating Element:	Nichrome Resistance
Mounting:	Thread/flange/none	Types Of Terminal Box:	Anti-spray/water-proof
Connection:	Thread

DANW Thermocouple Terminal Head for assembly-style thermocouples or RTDs

Description:

The DANW Thermocouple Terminal Head is typically used alongside assembly-style thermocouples or RTDs. It safely houses a terminal block or transmitter inside a rugged enclosure, helping you maintain stable and precise temperature readings. Its robust design and material options ensure durability, especially for demanding industrial environments where both reliability and compliance matter.

Beautiful appearance, bright paint

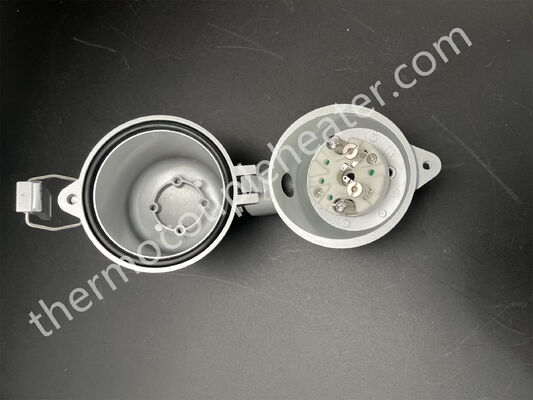

Large cavity, easy to connect
The protection performance conforms to national IEC529 "enclosure protection grade" IP65
Connecting thread to protection pipe:M12*1,M16*1,M20*1,M22*1,M24*1
Outlet thread: M20*1.5
Fixed two hole dimensions with wiring panel:H=36±1,33±1
Can match the spring plate
H = 33±0.1 can be assembled with foreign wiring boards or converters to international standards
Also can assemble various structures of flameproof thermocouple, thermal resistance
Large cavity, easy to connect

Specification:

Material: ACD12 aluminium
Protection tube entry: PF1/2'',PF3/4",NPT3/4"
Extension wire entry: PF1/2",NPT1/2"
Color available: black
Screw distance: 40mm
Material of terminal block: ceramic or bakelite
Form of terminal block: 2 poles, 3 poles, 4 poles, 6poles
Weight: 240g
Package: 50pcs/ctn for thermocouplr heads, 250pcs/ctn for terminal blocks
IP code: IP65 of IEC 529

item	Thermocouple head
Place of Origin	China
Brand Name	GME

Product name:	Thermocouple DANW Head
Material:	Aluminium
Moq:	100pcs
Color:	All colors available
Application:	Temperature sensor
Usage:	Industrial
Protection level:	IP65
Terminal block:	2P-C 3P-C 4P-C 6P-C
Protection pipe thread:	PF3/4,PF1/2
Outlet thread:	PF1/2
