Customsized Electric Industrial Flexible Heater Heating Element With Pointed End

50pcs
MOQ
Customsized Electric Industrial Flexible Heater Heating Element With Pointed End
Features Gallery Product Description Request A Quote
Features
Specifications
Power Source: Electric
Dimension: Customized
Voltage: 12-380v
Sheath Material: Stainless Steel Or Nickel
Power: 1w-10000w
Style: Straight Or Coil
Material: Ss304 Or Requirement
Length: Up To Your Order
Highlight:

Customsized Electric Industrial Flexible Heater

,

Pointed End Electric Industrial Flexible Heater

,

Industrial Flexible Heater Heating Element
Basic Infomation
Place of Origin: China
Brand Name: GME
Certification: CE
Payment & Shipping Terms
Packaging Details: cartons， pallet
Delivery Time: 7~10 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 100000 pcs per Month
Product Description

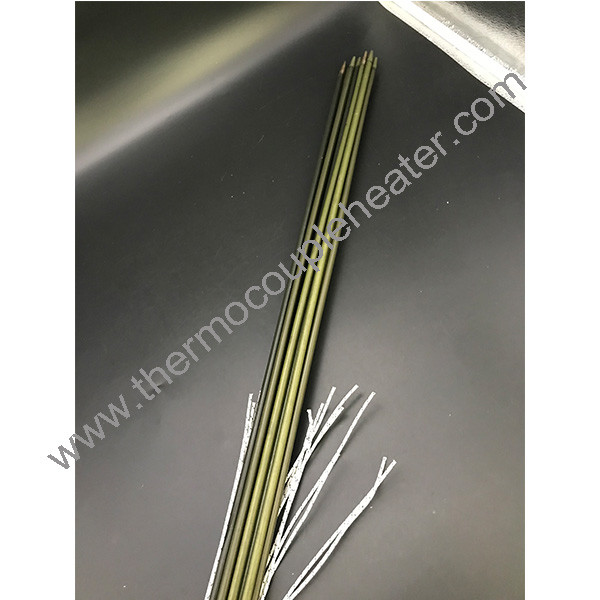

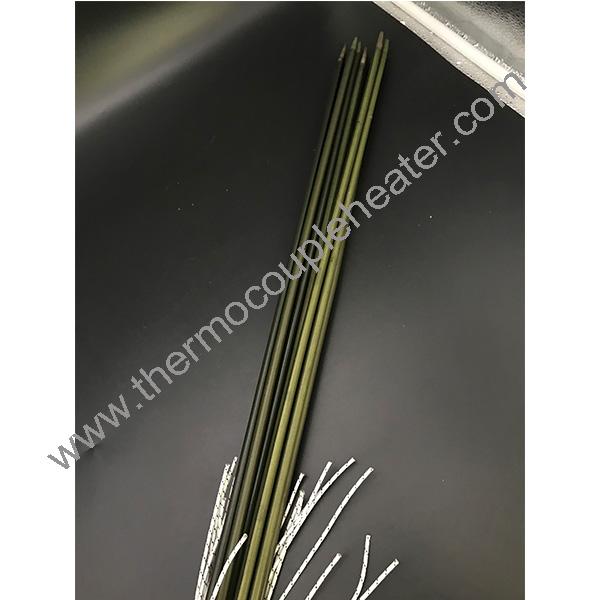

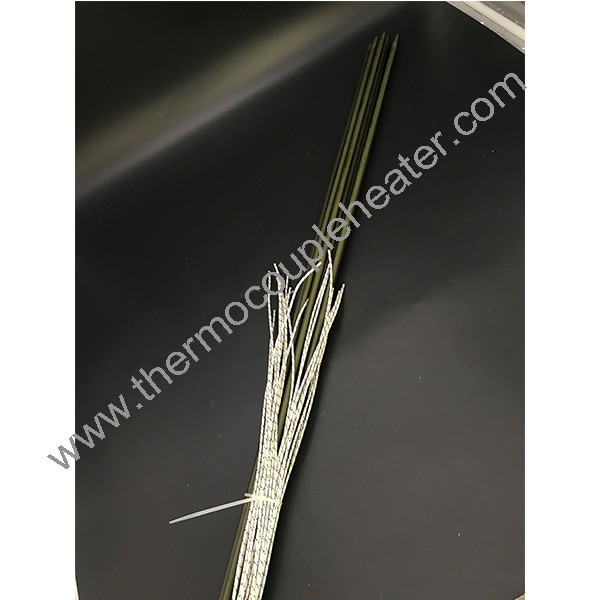

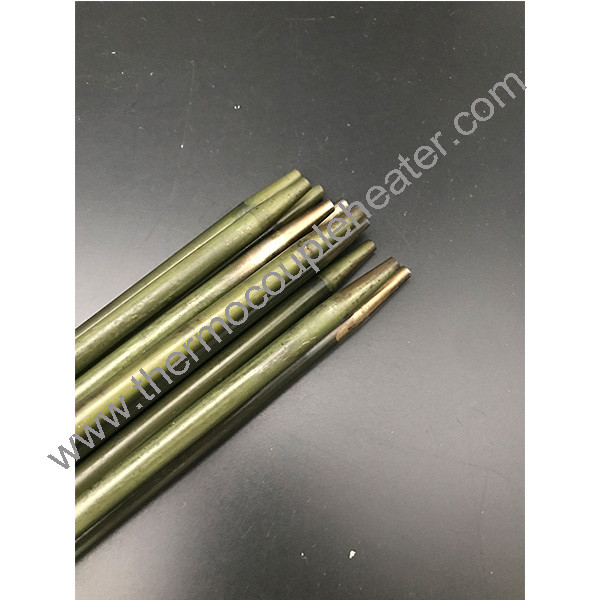

Customsized Electric Industrial Flexible Heater Heating Element with pointed end




Specification:



Flanged immersion heaters consist of hairpin bent tubular elements welded or brazed into a flange and provided with wiring boxes for electrical connections. Flange heaters are installed by bolting to a matching flange welded to the tank wall or nozzle. A wide selection of flange sizes, kilowatt ratings,voltages, terminal housings and sheath materials makes these heaters ideal for all types of heating applications



Tube Materials
SS304, SS316, SS321 and Nicoloy800 etc.
Voltage/Power
110V-440V / 500W-10KW
Tube Dia
6mm 8mm 10mm 12mm 14mm
Insulation Material
High Purity MgO
Conductor Material
Ni-Cr or Fe-Cr-Al Resistance Heating Wire
Leakage current
<0.5MA
Wattage density
Crimped or Swaged Leads
Application
Water/Oil/Air heating, used in oven and duct heater and other industry heating process

Customsized Electric Industrial Flexible Heater Heating Element With Pointed End 0

Application:

* Plastic Processing machinery.

* Water and Oil Heating Appliances.

* Packaging machineries

* Vending Machines.

* Dies and Tools.

* Heating Chemical Solutions.

* Ovens & Dryers

* Kitchen equipments

* Medical equipments
