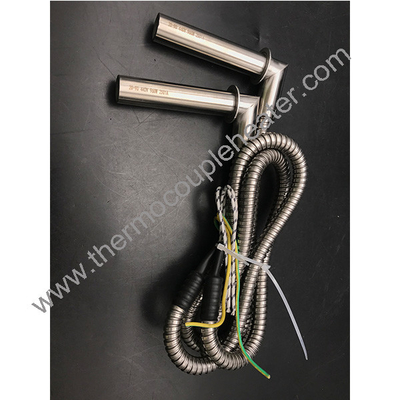

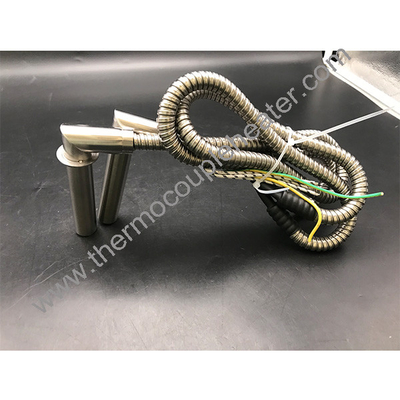

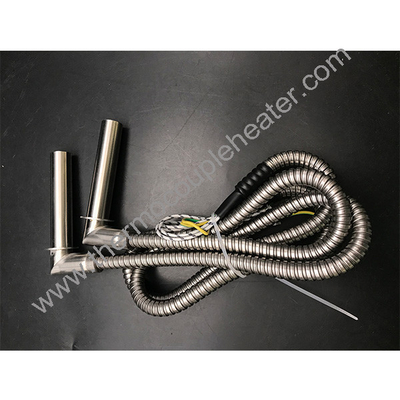

Electric Cartridge Heater Element With Flexible Metal Tube

Electric Cartridge Heater Element With Flexible Metal Tube
Electric Cartridge Heater Element With Flexible Metal Tube Electric Cartridge Heater Element With Flexible Metal Tube Electric Cartridge Heater Element With Flexible Metal Tube

Large Image :  Electric Cartridge Heater Element With Flexible Metal Tube

Product Details:
Place of Origin: China
Brand Name: GME
Certification: ISO/CE/UL/CSA
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: USD 1-100 FOB Shanghai/pc
Packaging Details: Boxes or Wooden Cartons
Delivery Time: 7-15 work days
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram, L/C
Supply Ability: 10000pcs/Month
Detailed Product Description
Lead Wire: Silicon, Glassfiber Shealth Material: SS304 ,SS321 ,SS316
Color: Biack And White Wattage Tolerance: +5%, -10%
Application: Oil, Water Or Other Liquid Etc Power Source: Electric
Voltage: 12-480v Dimension(L*W*H): Customizable
Type: Air Heater, Cartidge Heaters Insulation: Mgo Powder
Highlight:

Flexible Metal Tube Cartridge Heater

,

Flexible Metal Tube Cartridge Heater Element

,

Electric Cartridge Heater Element

Electric Cartridge Heater Element with K Type Thermocouple



Description:


Cartridge heater is made of single head, electric heating tube to tube is to protect the shell (including not only the head of the stainless steel electric heating tube, copper pipe, all kinds of imported steel), along the central axis uniform spiral tube of high quality electric thermal bonding wire, nickel chromium wire, iron chromium alloy fever), and then fill the gap part closely with good heat resistance, thermal conductivity and the crystallization of the insulation of magnesia powder, with silicone seal on both ends of the pipe, in the other process.






Specification:



A.Nickel chromium resistance wire ensures even, efficient distribution of heat to sheath.


B.Magnesium oxide insulation of specific grain and purity results in high dielectric strength and faster heat-up.



C.According to different use requirements,choose the grade of heating wire,magnesium rod and
pipe.

D.Do not pull or bend the wire forciby.

E.The vicinty of the wire should be controlled below 220℃.


Product Name
right angle cartridge heater
Material
stainless steel
Color
nickel white
Standard
CE/ISO
Grade
SUS201, SUS304, SUS316,
Power
electric
Voltage

customized

Used
air heater,water heater



Application:



* 3D Printers
* Hot runner systems - Heating of manifolds
* Laboratories - Heating of analytical equipment
* PCB Equipment, Smokeless barbecue furnace
* Glass Bending Machine, Hole Punched
* Injection Molding



Electric Cartridge Heater Element With Flexible Metal Tube 0
