Description:

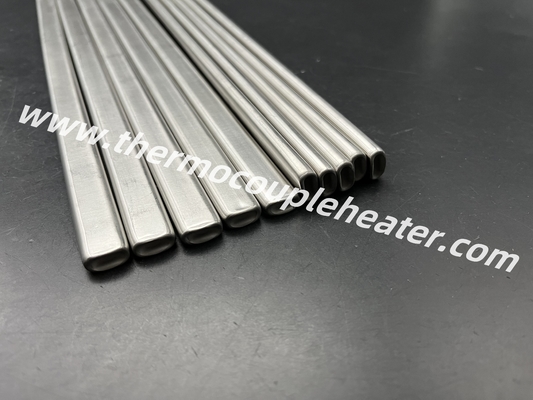

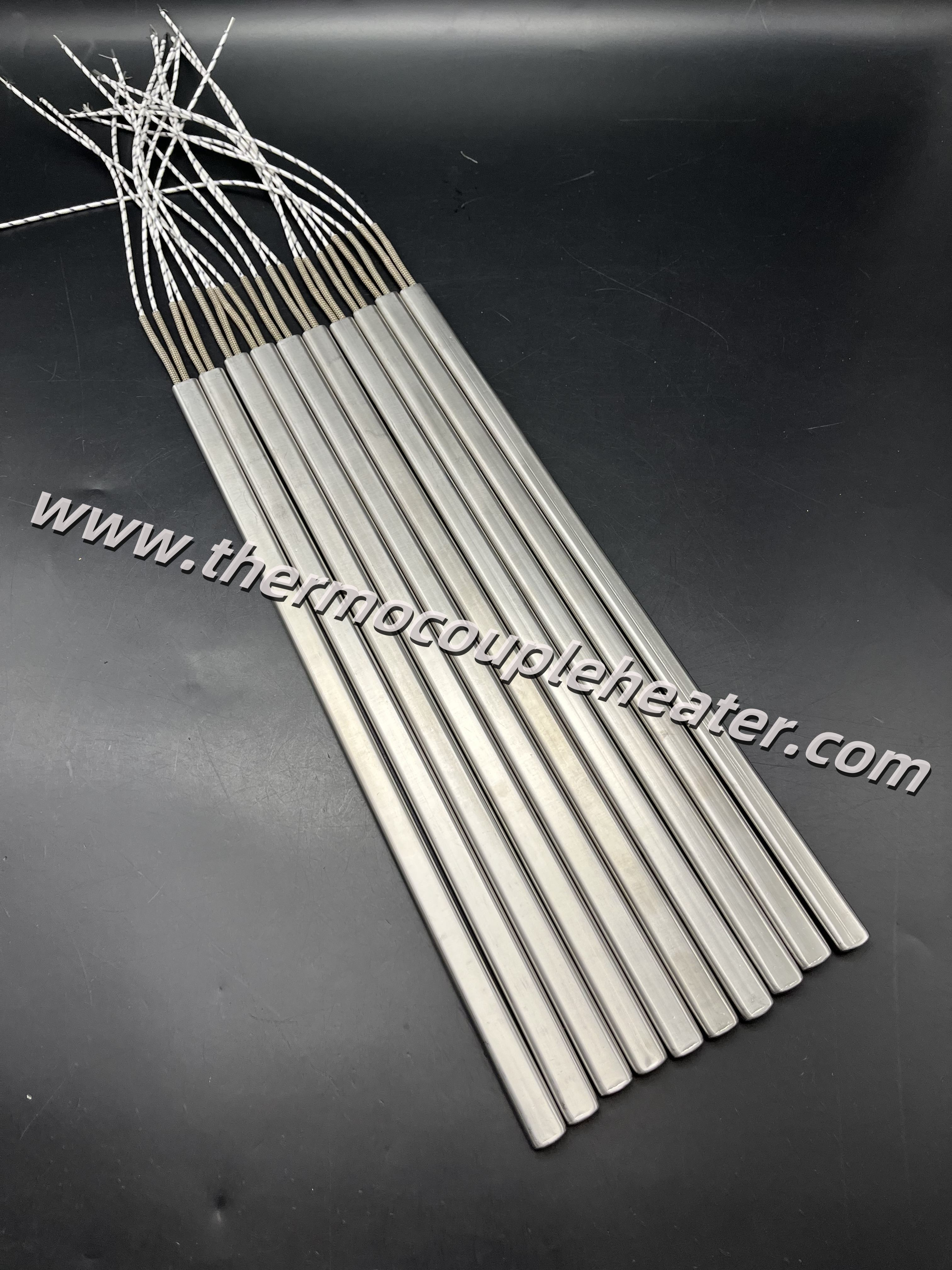

Flat tubular cartridge Heaters are designed as an alternative form of round cartridge heater. It is designed mainly used on the mold heating, and liquid heating, and any applications need to increase the heating area with limiting heating space.

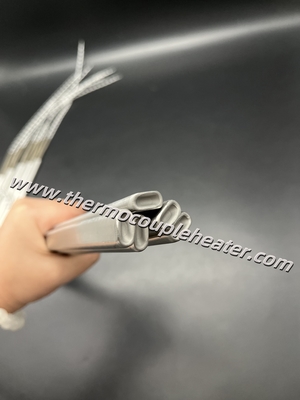

The flat tuburlar cartridge Heaters can be made based on customer’s specific requirements, can be designed to be different shapes and sizes. They are made swaged in lead, smooth platen surface to increase the heating transfer efficiency and long life time.
The Flat tubular Cartridge heater has a large contact area, rapid heating speed, high heat transfer efficiency, saving space, power, heating up fast, high reliability, high heat capacity, long service life advantages. The flat surface improve product quality performance while taking into account environmental protection and energy requirements of the times.
Technical Details
| 1 |
Inside magnesium oxide insulation material: |
99.99% high purity magnesium oxide |
| 2 |
Heating element: |
high durance and high temperature NiCr2080 heating elements from Germany |
| 3 |
TC material: |
High quality TC elements to ensure ±5 ℃ tolerance |
| 4 |
Max working temperature |
900℃ |
| 5 |
High voltage stability test: |
Less than 0.5mA leak under 1000V for 30 seconds |
| 6 |
Section: |
Customized |
| 7 |
The range of the Total Length: |
25mm----2500mm |
| 8 |
Maximum power density: |
50w/cm² |
| 9 |

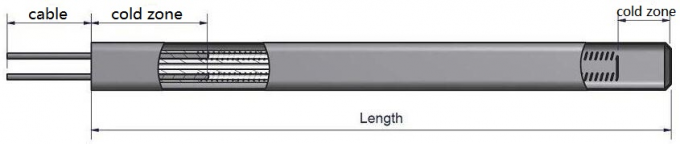

Unheated zone: |
10mm at lead end and about 5mm at bottom |
| 10 |
Lead options: |

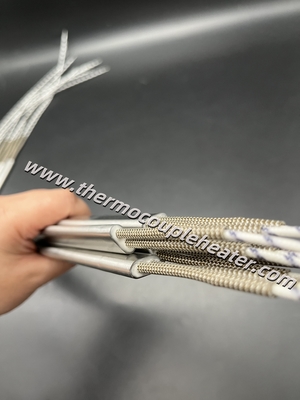

A: Solid Nickel Pin: wire 300℃ or 500℃
B: Swaged in wire: 500℃ wire coming from inside |
