Smart TC RTD Input 3 Wire 4 Wire Pt100 Temperature Transmission 4-20mA Temperature Transmitter

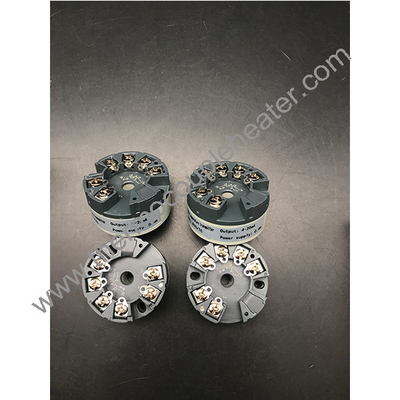

Large Image : Smart TC RTD Input 3 Wire 4 Wire Pt100 Temperature Transmission 4-20mA Temperature Transmitter

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	cartons， pallet
Delivery Time:	7~10 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	100000 pcs per Month

Contact Now

Detailed Product Description

Power Source:	Electric	Dimension:	Customized
Sheath Material:	Aluminum Alloy	Explosion Proof Grade:	DIIBT1 ~ T6
Supply:	OEM	Wire Entry:	M201.5,M221.5,G1/2"
Protection Level:	IP 65	Usage:	Industrial
Highlight:	20mA temperature transmitter , 4-wire Pt100 temperature transmitter , 3-wire Pt100 temperature transmitter

Smart TC RTD input 3-wire 4-wire Pt100 temperature transmission 4-20mA temperature transmitter

Description:

a head mount temperature transmitter with a single input.The single input accepts thermocouples, RTD. All inputs are linearized and converted in to an industrial standard 4-20mA output for transmission to your system.It's the choice for your monitoring applications.

Our Temperature transmitter highlights:

1. High precision (≤0.1%)

2. Good stability (≤0.02%FS/℃) 3. Fast response (1s) 4. Automatic cold junction compensation (-20~+60℃) 5. Various input signals (RTD, TC) 6. Free configuration input (PC programming software) 7. Wide voltage power supply (12...40VDC)

Specification:

Input
Input signal	Resistance temperature detector (RTD), thermocouple (TC)
Cold-junction compensation temperature scope	-20~60℃
Compensation precision	±1℃
Output
Output signal	4...20mA(two-wire)
Load resistance	RL≤(Ue-12)/0.021
Output current of upper and lower limit overflow alarm	IL=3.8mA,IH=21mA
Power supply
Supply voltage	12...40VDC
Other parameters
Temperature drift	≤0.02%FS/℃
Response time	Reach to 90% of the final value for 1s
Used environmental temperature	-40~80℃
Storage temperature	-40~100℃
Installation area	Top cassette installation

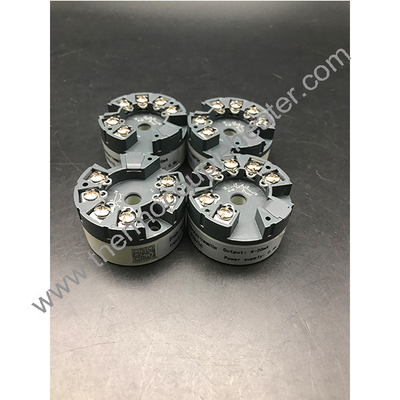

Smart TC RTD Input 3 Wire 4 Wire Pt100 Temperature Transmission 4-20mA Temperature Transmitter 0
