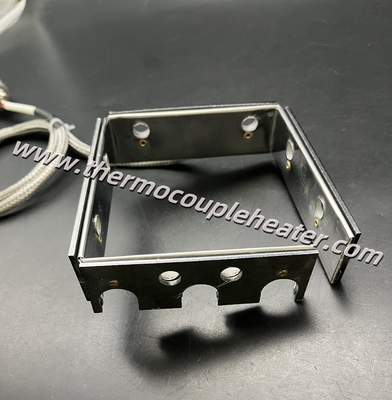

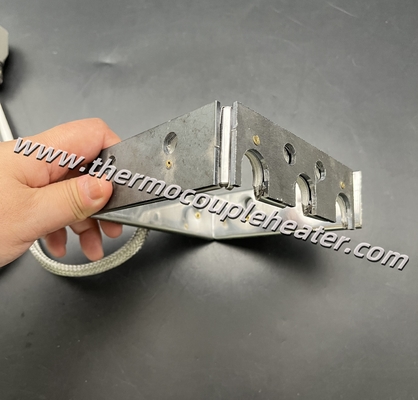

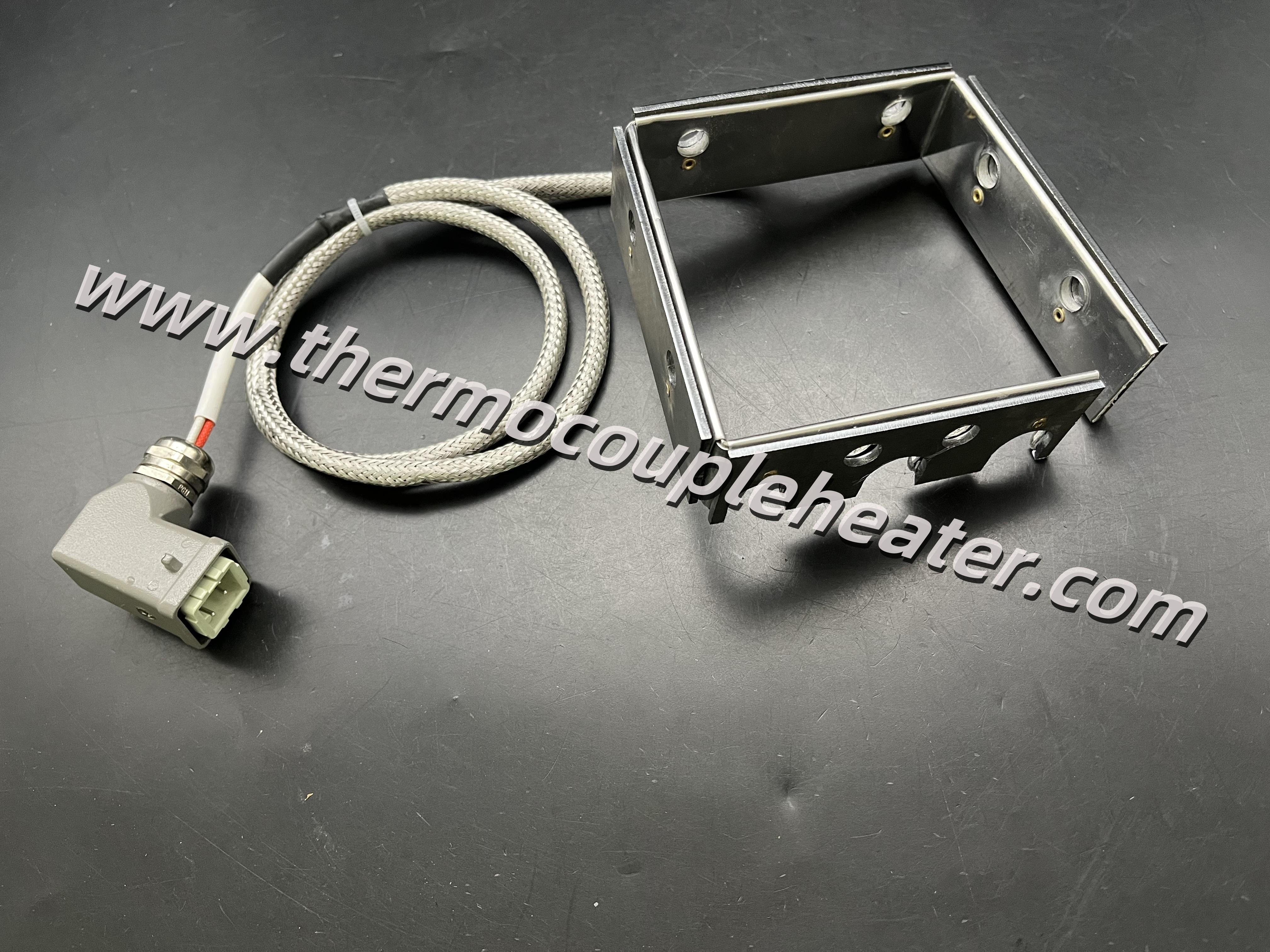

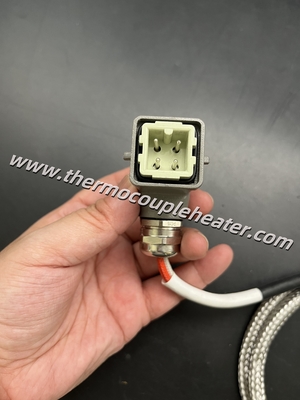

Custom Square Mica Insulated Heater With Steel Protection Frame And Quick Connector

Custom square mica insulated heater with steel protection frame and quick connector

1. Brief Introduction

Mica heaters are popular for their efficient heating. Made with mica sheets, they provide good insulation and heat retention. These heaters can reach high temperatures quickly and evenly, making them suitable for various industrial applications, such as packaging and food processing.

Mica heaters are durable and resistant to thermal shock, ensuring reliable performance. They are lightweight and easy to install, with various sizes and configurations available for different heating needs.

2. Features:

High class Nickel Chrome ribbon is used.
Maximum power: 3w/cm2(s.steel),4.5w/cm2(brass),6.5w/cm2(ceramic insulation)
Operating temperature up maximum of 500 degree centigrade
Axial, Radial & Tangential terminals are available
Thermocouple holes can be provided as per client's requirements

3. Technical Information​.

Heater material :copper, SS304, cast aluminum, cast copper, ceramic
Insulation material :imported high-temperature mica
Resistance wire: Ni80Cr200
Electrical property: ≤0.5mA
Wattage tolerance: +5%-10%
Input voltage and wattage :to be customized as request
Specification :to be customized as request

4. Application

Band heaters are commonly used in the plastics industry: to heat plasticization cylinders, extruders and injection presses. They are also employed on woodworking machinery and scientific-medical equipment.

Flat mica bands are used in the packing trade (sealing bars and wheels), industrial ironing (mangles) and plastics (extrusion/blower machines).

Injection molding
Blow-molding
Plastic extrusion
Container, pipe, or tank heating
Process applications
