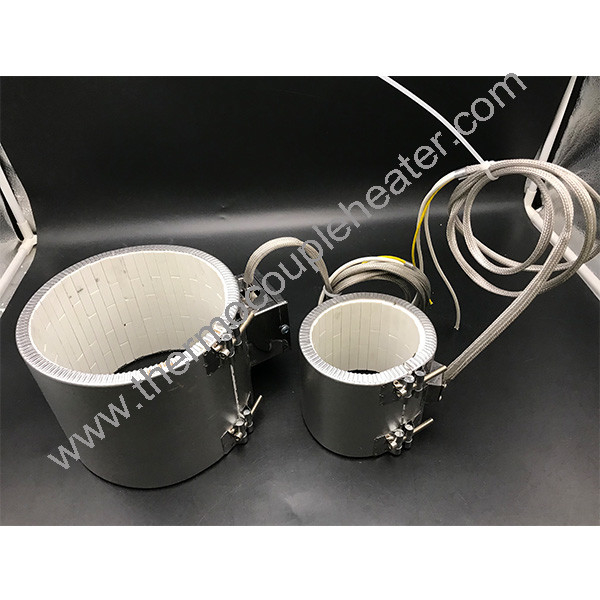

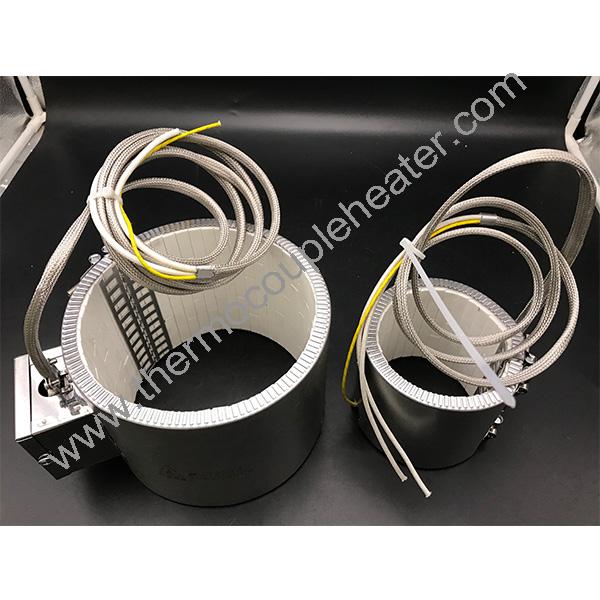

Industrial Electric Heating Element Ceramic Extruder Brass Mica Band Heater

Industrial Electric Heating Element Ceramic Extruder Brass Mica Band Heater
Industrial Electric Heating Element Ceramic Extruder Brass Mica Band Heater Industrial Electric Heating Element Ceramic Extruder Brass Mica Band Heater Industrial Electric Heating Element Ceramic Extruder Brass Mica Band Heater

Large Image :  Industrial Electric Heating Element Ceramic Extruder Brass Mica Band Heater

Product Details:
Place of Origin: China
Brand Name: GME
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Packaging Details: cartons， pallet
Delivery Time: 7~10 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 100000 pcs per Month
Contact Now
Detailed Product Description
Power Source: Electric Dimension: Customized
Voltage: 110-240V / 50-60Hz Warranty: One Year
Power: 195W-690W Style: Straight Or Coil
Heating Wire Material:: Cr20Ni80 Coiling Scheme: Tangential, Radial Exits, Axial
Material: Brass Or Stainless Steel Color: Copper
Application: Widely Used Height: 10mm~200mm
Highlight:

Industrial Mica Band Heater

,

Ceramic Extruder Mica Band Heater

,

Brass Mica Band Heater

Industrial Electric Heating Element Ceramic Extruder Brass Mica Band Heater

Description:

Band Heaters offer longer heater life, high processing temperature capabilities and full flexibility for ease of installation.The built in thermal insulation limits heat losses and conserves electrical energy. A wound nickel chrome resistance wire is strung through high temperature ceramic bricks that sit on an insulation blanket of ceramic fiber insulation.



Ceramic Band heaters used for Plastic Processing machinery, depending upon application, these heaters
come with outer heat saving insulation covers, which provides the best combination of physical strength,
high emissivity & good thermal conductivity to heat cylindrical parts, good for sheath temperature up to
550℃ along with Energy Saving.


Specification:



  • High class Nickel Chrome ribbon is used.
  • Maximum power: 3w/cm2(s.steel),4.5w/cm2(brass),6.5w/cm2(ceramic insulation)
  • Operating temperature up maximum of 500 degree centigrade
  • Axial, Radial & Tangential terminals are available
  • Thermocouple holes can be provided as per client's requirements
Product Name
extrusion machine band heaters
Band Voltage
120V 220V 230V 240V 480V etc (under customer request)
Max working temperature
300 degree celsius
Resistance Wire Type
NiCr 80/20
Sheath Material
stainless steel
Mini Size
25mm diameter * 25mm width
Band Construction
One-piece or Two-Piece
Gap Locking Mechanism Type
Flange, Barrel Nuts or None

 Industrial Electric Heating Element Ceramic Extruder Brass Mica Band Heater 0
Application:



* For heating the nozzles of Injection Molding
* Machines
* Extruders
* Blown film dies
* Nozzles of Injection molding machines
* Other cylinder heating applications
* All Plastic & Rubber Processing Machinery
