Customized Supplied Electric M Type Heating Element Stainless Steel Heater Pipe AC220V 380V Tubular Heater Element

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	cartons， pallet
Delivery Time:	7~10 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	100000 pcs per Month

Contact Now

All Products

Coil Heaters (338)

Thermocouple RTD (304)

Mineral Insulated Thermocouple Cable (34)

Thermocouple Compensating Cable (66)

Cartridge Heaters (148)

Cast Heater (36)

Tubular Heater (91)

High Temperature Cable (30)

Thermocouple Connection Head (59)

Hot Runner Temperature Controller (22)

Thermocouple Thermowell (26)

Sacrificial Anodes (10)

Thermocouple Components (167)

Mica Insulated Band Heaters (30)

Ceramic Heaters (4)

Electric Heater Components (35)

Heater Making Machine (14)

Immersion Tubular Heater In Flat Shape For Oil Or Water Heating

Detailed Product Description

Power Source:	Electric	Dimension:	Customized
Voltage:	12-480V	Sheath Material:	Stainless Steel Or Nickel
Style:	K, J,	Lead Wire:	Copper, , Fiberglass Silicon
Insulation Material:	MgO	Heating Element:	Nichrome Resistance
Screw Threads:	Available	Flange Washer:	Available
Connection:	Screw Fitting
High Light:	Stainless Steel Tubular Heater Element , Customized Tubular Heater Element , AC220V Tubular Heater Element

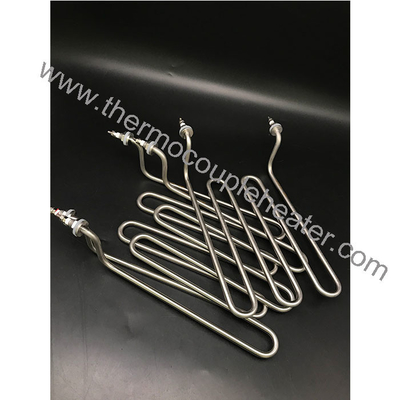

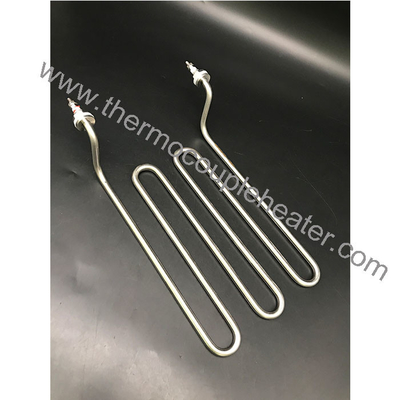

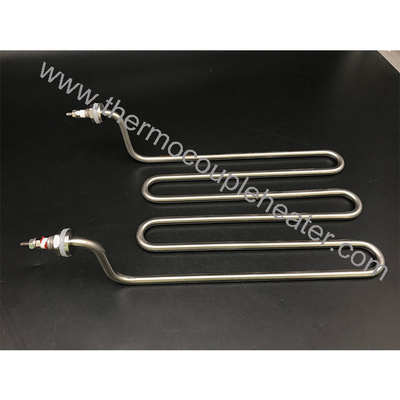

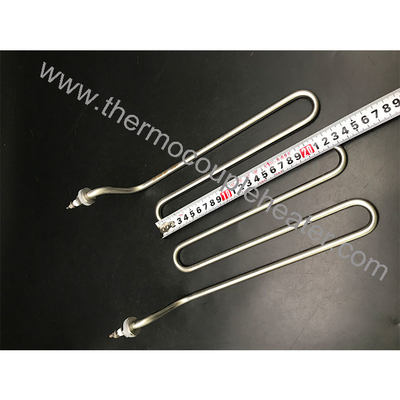

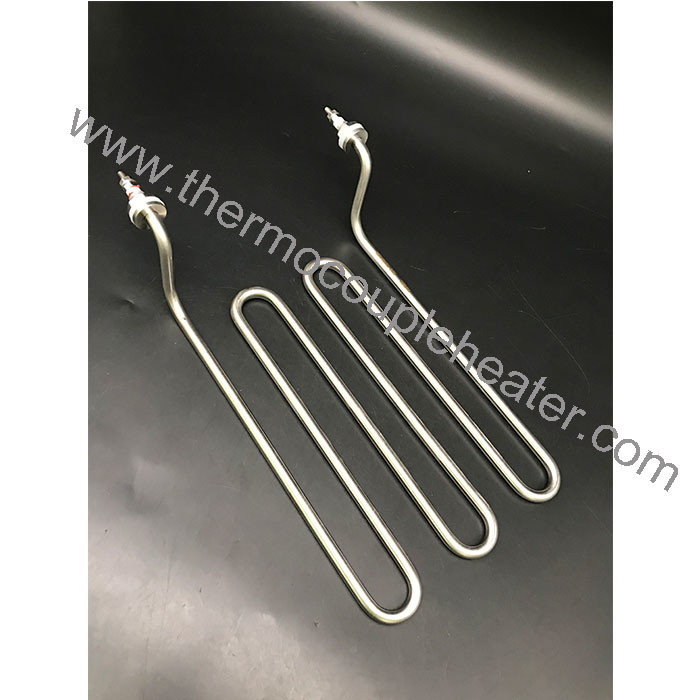

Customized Supplied Electric M Type Heating Element Stainless Steel Heater Pipe AC220V 380V Tubular Heater Element

Description:

*Tubular heating element are custom designed in a various shapes to as client's requirements for direct immersion in liquids suchas water, oils, solvents and process solutions, molten materials as well as air and gases.

*Tubular heaters are produced using Incoloy, stainless steel or Copper sheath materials and also there is huge variety of selection of termination styles available. Insulation of Magnesium offers greater heat transfer.

*Tubular heaters can be used in any application. Straight tubular can be inserted in machined groves for conductive heat transfer and formed Tubular provides consistent heat in any type of special application. .

Material	stainless steel 304/321/316/310S,Incoloy 800 840
Tube Diameter	8MM 10MM 12MM 14MM 16MM 18MM 20MM. etc

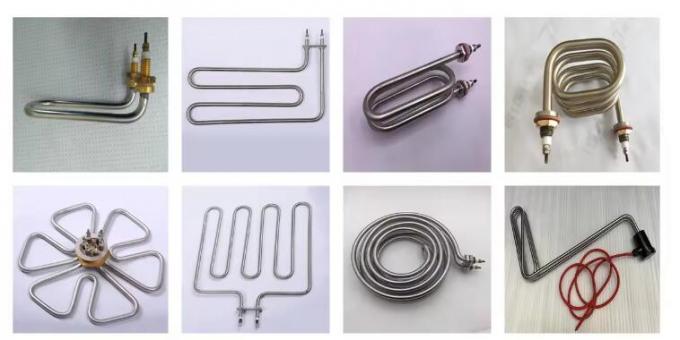

Shape	Round, straight, U type, W type , double W type and so on
Voltage	380V 230V 220V 240V or customzied
Terminal Styles	Plain Pins/ Flag Terminals/ Spade Terminal/ Screw Terminal/ Special Terminal

1.Wattage Tolerance: +5%, -10%

2.Resistance tolerance: +10%, -5%

3.Voltages available: 380V,240V, 220V,110V,36V,24V or 12V

4.Operating temp: from 370ºC to 760ºC

5.Length tolerance: ± 1.5mm;

6.Delivery time: 7-14 working days.However, many sizes are kept in stock. Please contact the factory for assistance.

7.Insulation resistance (cold): ≥ 1000 MΩ;

8.Maximum leakage current (cold): ≤ 0.5 mA;

Application:

Tubular heater have the characteristics of simple structure, high mechanical strength, high thermal efficiency, safety and reliability, easy installation, and long service life. Widely used in various devices such as nitrate tanks, oil tanks, fusible metal melting furnaces, air heating furnaces, drying furnaces, drying boxes, hot pressing molds, etc.

Customized Supplied Electric M Type Heating Element Stainless Steel Heater Pipe AC220V 380V Tubular Heater Element
