| Place of Origin: | China |
| Brand Name: | GME |
| Minimum Order Quantity: | 20 kg |
|---|---|
| Packaging Details: | Standard exporting package |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, Western Union, T/T, Paypal |
| Supply Ability: | 20,000 kg per month |
| Material: | 0Cr25Al5 | Shape: | Round Wire / Flat Tape |
|---|---|---|---|
| Package: | Spool | Max Temperature Range: | 1250℃ |

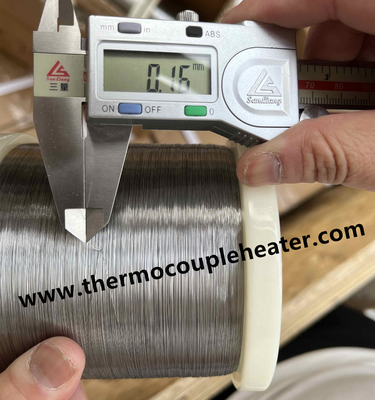

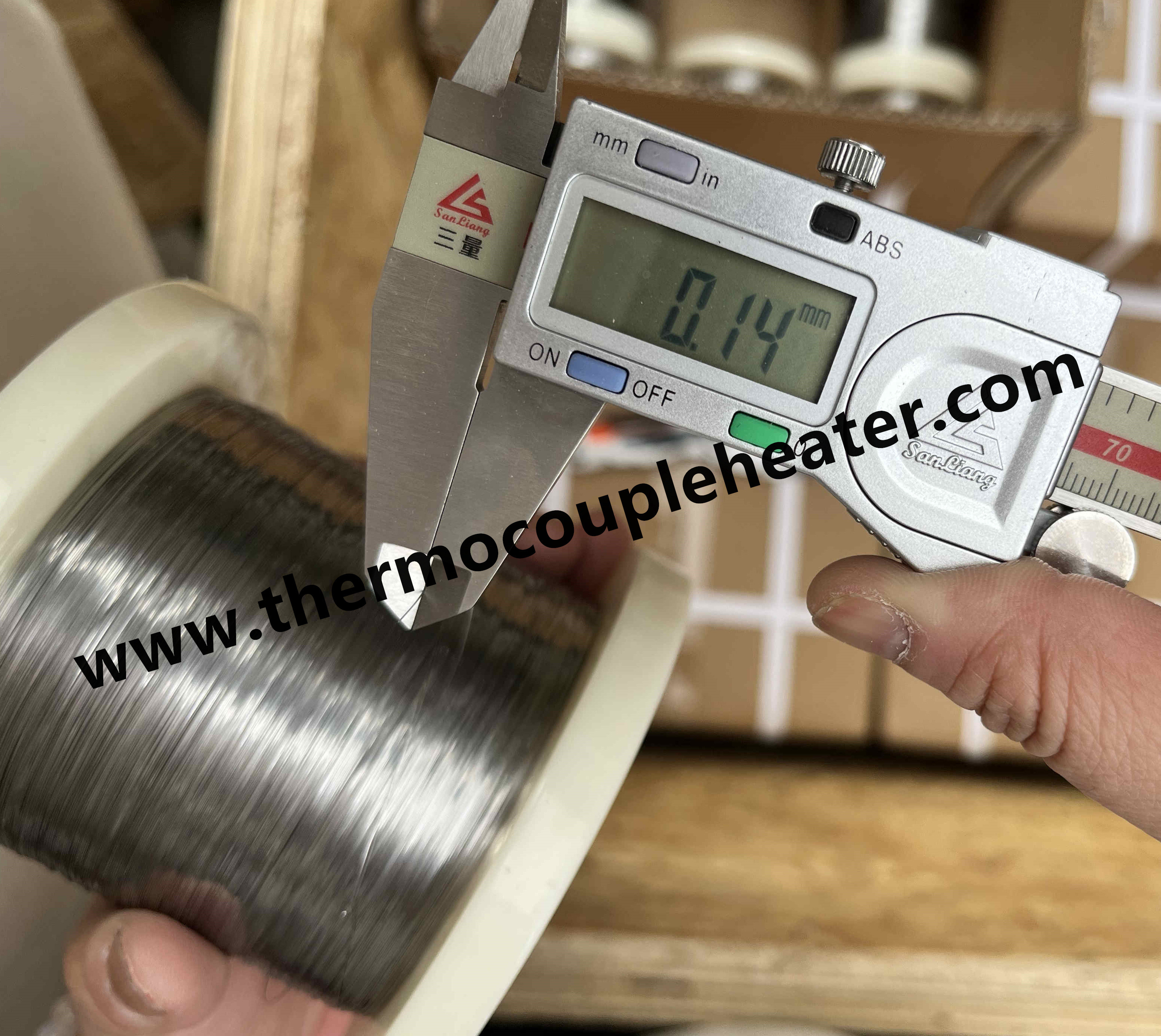

| High Light: | 0.15mm High Resistance Alloy Wire,0Cr25Al5 High Resistance Alloy Wire,0Cr25Al5 Thin Round Wire |
||
Introduction:
High temperature heating wires are used for making electric heating elements in home appliances and industrial furnaces. Typical applications are flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements.
Characteristics:
1) Excellent straightness
2) High strength in high temperature
3) Uniform and beautiful surface condition without spots
4) Excellent coil-forming ability
5) Good corrosion resistance
Technical Parameter:
| NAME | Cr20Ni80 | 0Cr25Al5 | Cr20Ni30 | |
|
MAIN CHEMICAL COMPOSITION |
Cr | 20.0-23.0% | 23.0-26.0% | 18.0-21.0% |
| Ni | Balance | - | 30.0-34.0% | |
| Al | - | 4.5-6.5% | - | |
| Re | - | opportune | - | |
| Fe | ≤1.0% | Balance | Balance | |
| Max Temperature (℃) | 1200 | 1250 | 1100 | |
| melting point( ℃) | 1400 | 1500 | 1390 | |
| Density (g/cm3) | 8.4 | 7.1 | 7.9 | |
| Resistivity 20℃ (μΩ·m) | 1.09±0.05 | 1.42±0.07 | 1.04±0.05 | |
| tensile strength(N/mm2) | 850-950 | 637-784 | 850-950 | |
| elongation(%) | ≥20 | ≥12 | ≥20 | |
| bending frequency(F/R) | ≥9 | ≥5 | ≥9 | |
| Working Life (hours) | >20000 | >8000 | >18000 | |
| Thermal Conductivity (KJ/m·h·℃) | 60.3 | 46.1 | 43.8 | |
| Specific Heat Capacity(J/g.℃) | 0.44 | 0.494 | 0.5 | |
| expansion rate(α×10-6/℃) | 18 | 16 | 19 | |
| micrographic structure | Austenite | Ferrite | Austenite | |
| magnetic property | non-magnetic | Magnetic | non-magnetic | |
