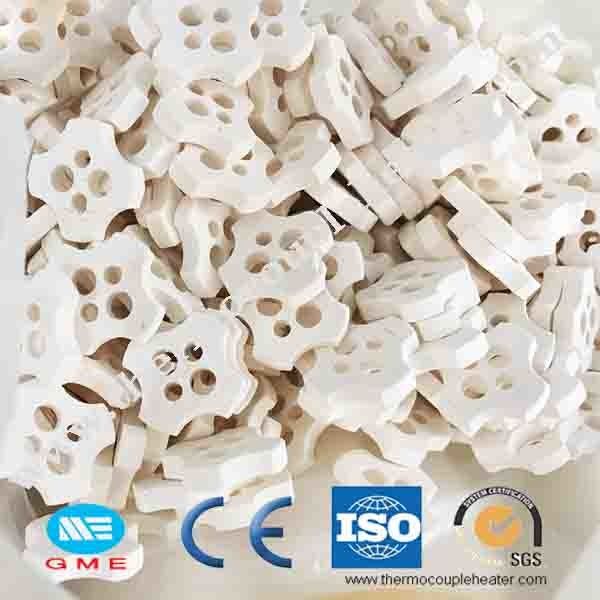

MgO Ceramic Top Bottom Spacer For Making Cartridge Heaters

Large Image : MgO Ceramic Top Bottom Spacer For Making Cartridge Heaters

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE
Model Number:	Mgo rod

Payment & Shipping Terms:

Minimum Order Quantity:	500pcs
Price:	USD$0.002/pc
Packaging Details:	paper carton, wooden carton
Delivery Time:	30days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100000pcs per month

Contact Now

Detailed Product Description

Material:	Magnesium Oxide Ceramic	Color:	White / Ivory
Bores:	Single,two,four Or Multi Bores	Shape:	Round, Square, Rectangular, Oval
Usage:	Works As Refractory Material
Highlight:	MgO Ceramic Bottom Spacer , Cartridge Heaters Bottom Spacer , MgO Ceramic Top Spacer

MgO Ceramic Porcelain Top Bottom Spacer for making cartridge heaters

Description:

We use high pure fused magnesia as raw material,made by high-pressure automatic extrusion and fired in a 1700-degree tunnel pushing plate cellar furnace with high density (2.3g /ml). The level of its insulation and withstand voltage products has been continuously improved.

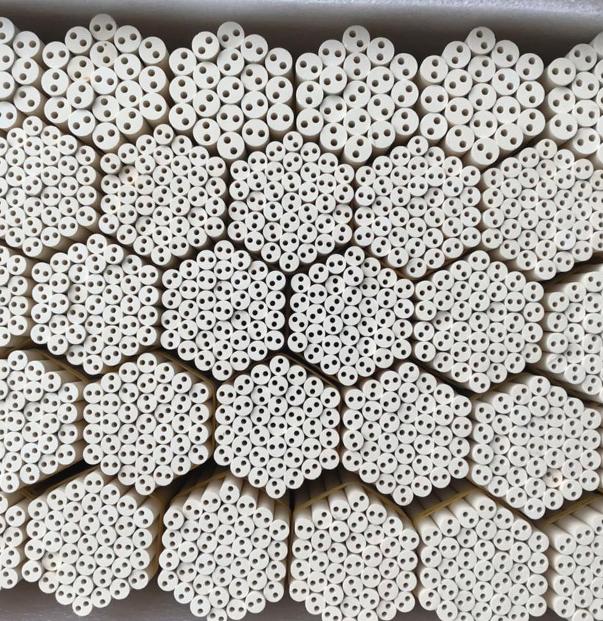

Currently we can produce various kinds of single-hole, double-hole, four-hole, five-hole, six-hole, eight-hole, and nine-hole
porous magnesium oxide tubes with an outer diameter of 2.0mm-25mm,and we can also produce according to customer requirements.

Use: armored wire, armored heater.

It is used for high-power single-ended electric heating pipes and hot runners, etc. It has the advantages of insulation, pressure resistance, and good heat transfer effect.
Various kinds of single-hole, double-hole, four-hole, five-hole, six-hole, eight-hole, and nine-hole porous magnesium oxide tubes with an outer diameter of 2.0mm-25mm,and we can also produce according to customer requirements.

Solid mgo rod:	OD 3-16mm,L 200mm	18x200	20x200	other size customized
Single hole:	4.7x2.8	5.6x3	6.5x3.4	7x4,8x5,9x6,10x6.5,ect
2 holes:	6x1.8,7x2,9x3	11x3.3	13x4,15x5,17x5	18x6,20x6
3 holes	4 holes	7 holes	8 holes	mgo head and bottom

MgO Ceramic Top Bottom Spacer For Making Cartridge Heaters 0
