Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
| Power Source: | Electric | Dimension: | Customized |
|---|---|---|---|
| Voltage: | 12-480V | Sheath Material: | Stainless Steel Or Nickel |
| Style: | K, J, | Lead Wire: | Copper, , Fiberglass Silicon |
| Insulation Material: | MgO | Heating Element: | Nichrome Resistance |
| Screw Threads: | Available | Flange Washer: | Available |
| Tube Diameter: | 2mm - 30mm | ||
| High Light: | Automatic Cartridge Heater,Automatic Cartridge Heater Armoured Cable,Armoured Cable Cartridge Heater |
||

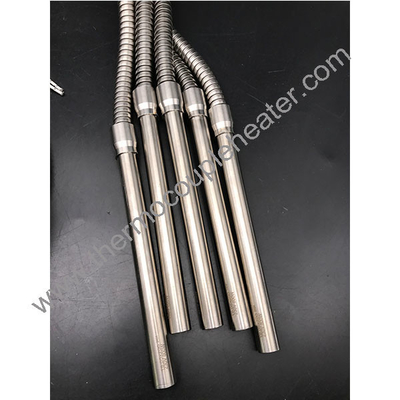

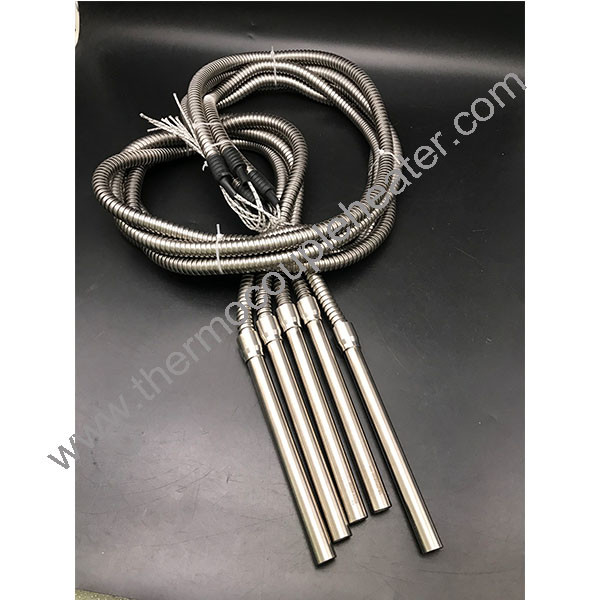

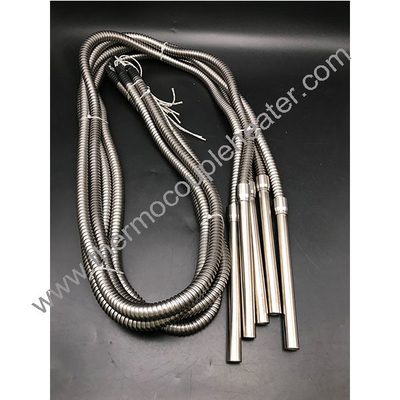

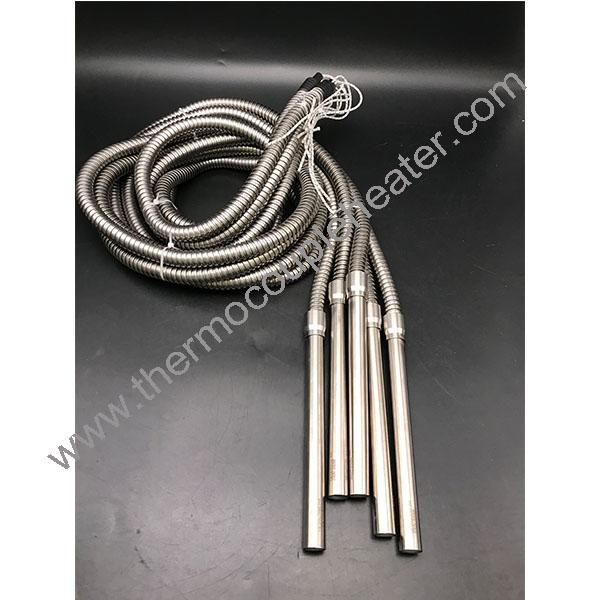

High Density Stainless Steel Cartrid Heating Element New Automatic Cartridge Heater Armoured Cable
Description:
1.Resistor core assembly is accurately and consistently spaced close to the outer sheath for efficient heat transfer.
2.Initial heater diameter is reduced, thus increasing the density of the assembly, resulting in a heating source which exhibits
exceptional dielectric strength and heat transfer characteristics.
3.End disc is always welded in place, preventing contaminants from entering the heater.
Specification:
(1.) Tube diameter: Φ3mm-Φ30mm
(2.) Tube Material:SS304;SS316,SS321,NICOLOY800 etc
(3.) Insulation Material:High-purity Mgo
(4.) Reisistance wire element:Ni-Cr or FeCr
(5.) Lead Connection Option: Crimped or Swaged leads
(6.) Lead and type of connection leads, 10" Fiberglass Standard(Wire options:,silicone high temperature frberglass)
Application:
1.Medical: Dialysis, Sterilization, Blood Analyzer,Nebulizer,
Blood/Fluid Warmer, Temperature Therapy
2.Telecommunications: Deicing, Enclosure Heater
