| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
| Power Source: | Electric | Dimension: | Customized |
|---|---|---|---|
| Voltage: | 12-480V | Sheath Material: | Stainless Steel Or Nickel |
| Style: | K, J, | Lead Wire: | Copper, , Fiberglass Silicon |
| Insulation Material: | MgO | Heating Element: | Nichrome Resistance |
| Screw Threads: | Available | Flange Washer: | Available |
| Tube Diameter: | 2mm - 30mm | ||
| High Light: | Stainless Steel Heating Element Cartridge Heater,Type L Heating Element Cartridge Heater,Right Angle Heating Element Cartridge Heater |
||

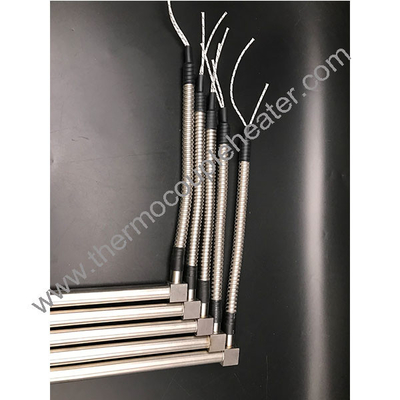

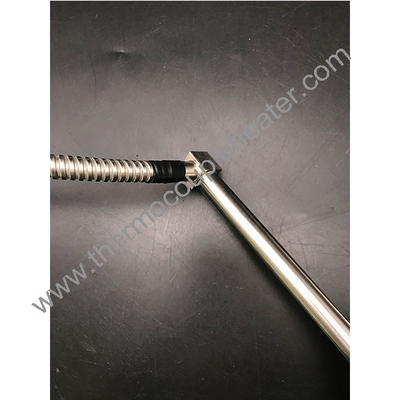

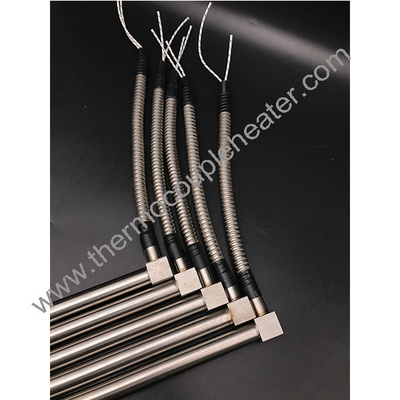

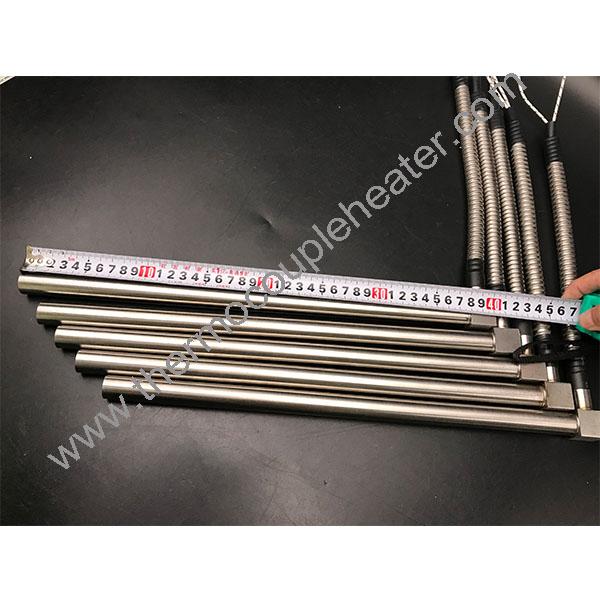

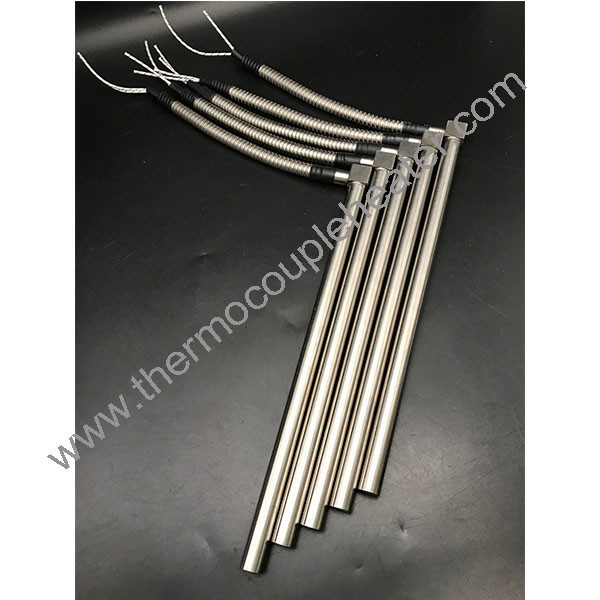

High Quality Stainless Steel Right Angle Heating Element Cartridge Heater type L
Description:
L-shaped cartridge heater is a seamless metal tube (carbon steel tube, titanium tube, stainless steel tube, copper tube) placed in the heating wire, and the gap is tightly filled with crystal MgO which has good thermal conductivity and insulation. The two ends are connected to the power supply through two lead rods, and the gap is filled with MgO then shrinking
Features:
1. According to the environment in which the equipment is used, select pipes with excellent performance to meet the special requirements of corrosion resistance, heat resistance, long dry burning life, rapid cooling and heating.
Specification:
(1.) Tube diameter: Φ3mm-Φ30mm
(2.) Tube Material:SS304;SS316,SS321,NICOLOY800 etc
(3.) Insulation Material:High-purity Mgo
(4.) Reisistance wire element:Ni-Cr or FeCr
(5.) Lead Connection Option: Crimped or Swaged leads
(6.) Lead and type of connection leads, 10" Fiberglass Standard(Wire options:,silicone high temperature frberglass)
Application:
l Plastic Processing machinery.
l Water and Oil Heating Appliances.
l Packaging machineries
l Vending Machines.
l Dies and Tools.
l Heating Chemical Solutions.
l Ovens & Dryers
l Kitchen equipments
l Medical equipments
