| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
| Power Source: | Electric | Dimension: | Customized |
|---|---|---|---|
| Voltage: | 12-480V | Sheath Material: | Stainless Steel Or Nickel |
| Style: | K, J, | Lead Wire: | Copper, , Fiberglass Silicon |
| Insulation Material: | MgO | Heating Element: | Nichrome Resistance |
| Screw Threads: | Available | Flange Washer: | Available |
| Tube Diameter: | 2mm - 30mm | ||
| High Light: | Flexible Metal Sleeve cartridge heater,Nickel Wire Covered cartridge heater,Stainless Steel Cartridge Heater |
||

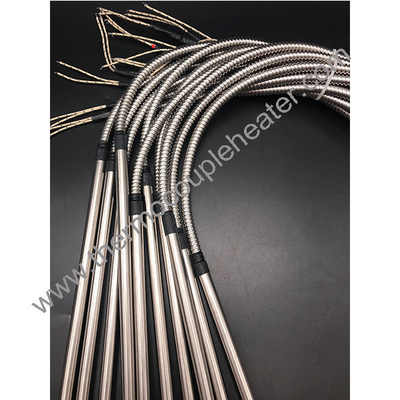

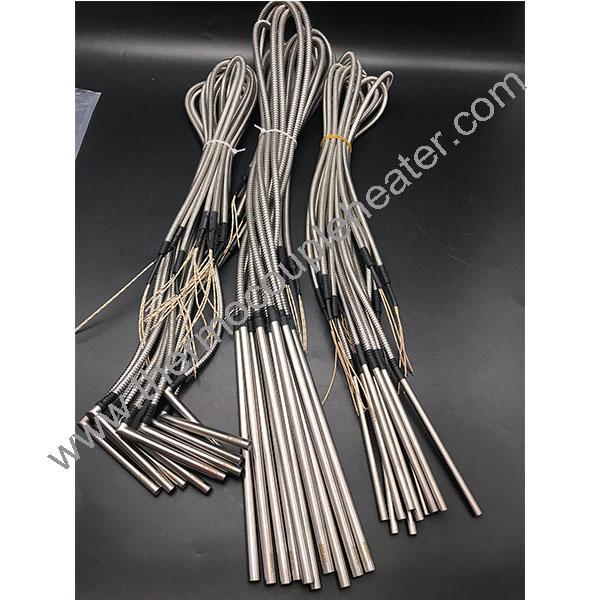

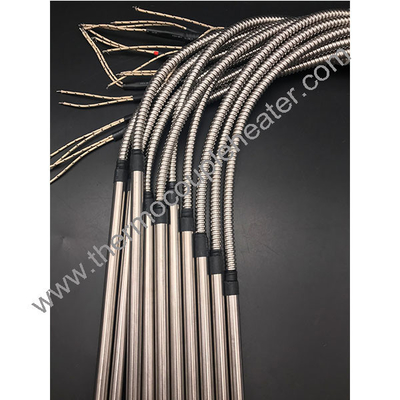

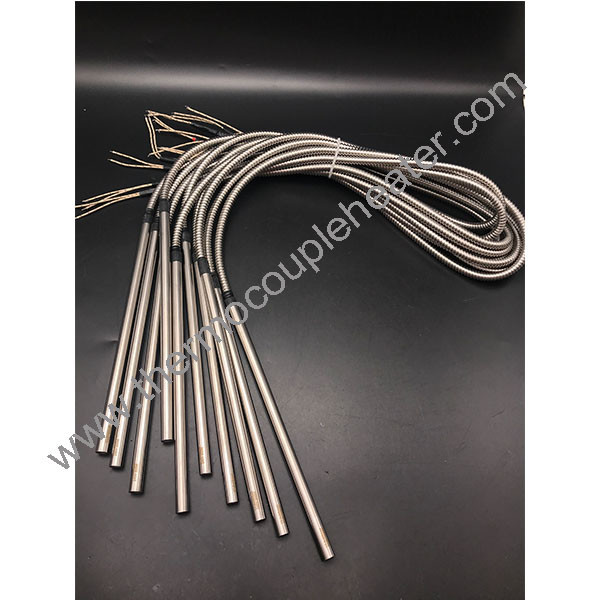

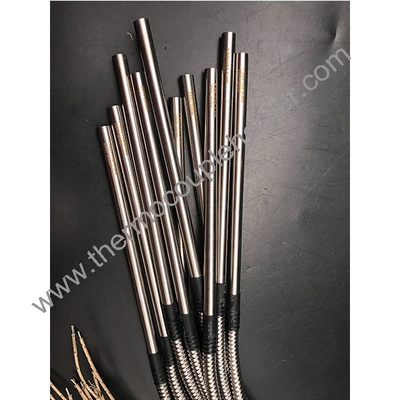

stainless steel cartridge heater with Nickel Wire Covered with Flexible Metal Sleeve
Description:
Cartridge heaters made by GME have two types of outlet leads: crimped-on or swaged-in Leads construction that consists in a high-grade nickel chromium resistance wire wound around a high-quality MgO core or tube that is centered in a stainless steel casing. Compared with the same large heat electric heating element, Cartridge Heater can save 5% of the electrothermal materialand the thermal efficiency can reach more than 90%.
Cartridge heaters are used for several heating metal parts and can be fitted with threaded bushings for liquid heating for certainapplications.
Specification:
(1.) Tube diameter: Φ3mm-Φ30mm
(2.) Tube Material:SS304;SS316,SS321,NICOLOY800 etc
(3.) Insulation Material:High-purity Mgo
(4.) Reisistance wire element:Ni-Cr or FeCr
(5.) Lead Connection Option: Crimped or Swaged leads
(6.) Lead and type of connection leads, 10" Fiberglass Standard(Wire options:,silicone high temperature frberglass)
Application:
l Plastic Processing machinery.
l Water and Oil Heating Appliances.
l Packaging machineries
l Vending Machines.
l Dies and Tools.
l Heating Chemical Solutions.
l Ovens & Dryers
l Kitchen equipments
l Medical equipments
