Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Minimum Order Quantity: | 50pcs |
|---|---|

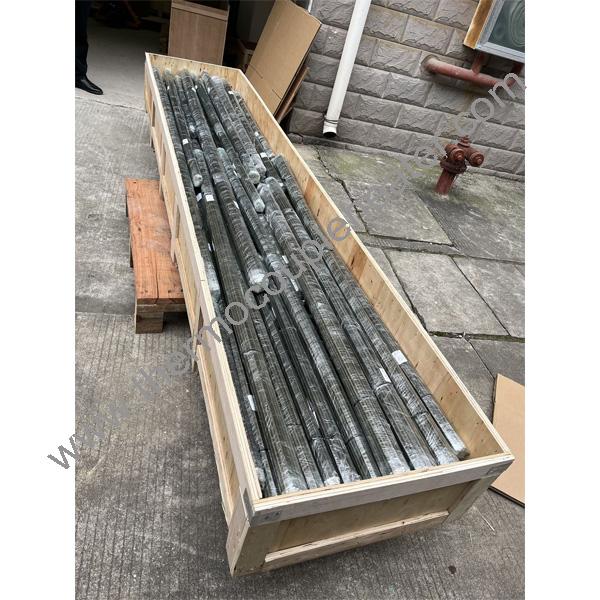

| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
| Power Source: | Electric | Dimension: | Customized |
|---|---|---|---|
| Voltage: | 12-380v | Sheath Material: | Stainless Steel Or Nickel |
| Power: | 1w-10000w | Style: | Straight Or Coil |
| Material: | Ss304 Or Requirement | Length: | Up To Your Order |

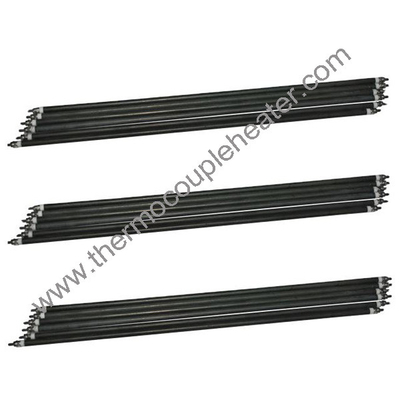

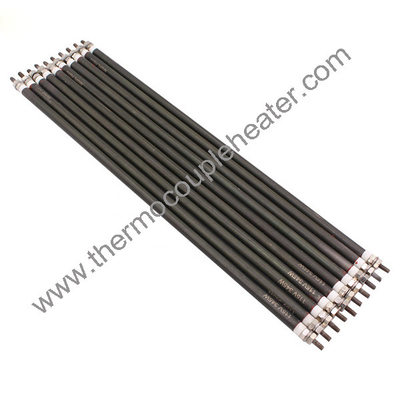

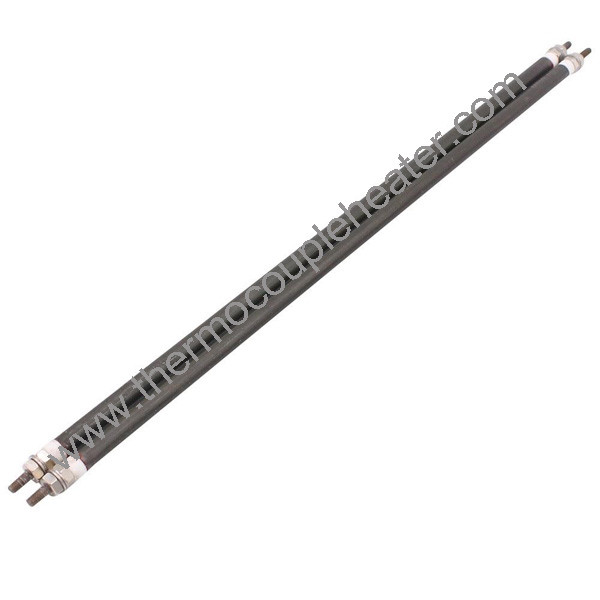

| High Light: | Tubular Finned Strip Heater,5kw Finned Strip Heater,Oven Tubular Heater 900w |
||
Specification:
Highly versatile and economical Vinson tubular heating elements are applied in virtually every conceivable type of heating application. These robust heaters are a reliable thermal source used to heat a multitude of liquids, gases, and solids and can be applied straight or bent into complex formations. Tubular heaters are also used for radiant heating in open air or in vacuum atmospheres. The elements can be cast into or clamped onto metal to form heated parts. A wide selection of standard designs are available or they can be custom designed for your requirements.Vinson Industries' application and design engineering team are available to assist in specifying the proper heater configuration.
Tubular heating element are custom designed in a various shapes to as client's requirements for direct immersion in liquids such as water, oils, solvents and process solutions, molten materials as well as air and gases.
Tubular heaters are produced using Incoloy, stainless steel or Copper sheath materials and also there is huge variety of selection of termination styles available. Insulation of Magnesium offers greater heat transfer.
| Tube Material | 304/316L/321/copper/incoloy |
| Tube diameter | 6.5-10MM |
| Tube wall thickness | 0.6-0.7mm |
| watt | customized |
| voltage | 100V-380V |
| Dimension | customized |
| Warranty | Three year |
| High pop test | 1500V/2mA/1S |
| Resistance insulation | 100MΩ MIN |
| Leakage current | 0.5mA MAX |
| Surface treatment | Silver/nickel plated |
| Hydraulic testing | 8kg(Air pressure without penetration) |
| flange material | cooper or stainless steel |
| welding of flange technique | silver/Tin/nickle/Argon arc welding |
| Insulation resistance(cold air addition) | 100MΩ |
| Power tolerance(standard) | +5%/-10% |
| Thermostat | With 16A 250V. L=275mm. Single safety thermostat |
| Flange | 1 1/4" brass flange with/without Mg anode holding M6/M8 |
| Heating resistance wire | 0Cr25Al5,Cr20Ni80 or as customer's requirement |
| Leakage current to be 0. 5mA max While energized at rated voltage | |
Application:
1.Plastic Processing machinery.
2.Water and Oil Heating Appliances.
3.Packaging machineries
4.Vending Machines.
5.Dies and Tools.
6.Heating Chemical Solutions.
7.Ovens & Dryers
8.Kitchen equipments
9.Medical equipments
Used in many other applications.
