Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Minimum Order Quantity: | 5pcs |
|---|---|
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union |
| Product Name: | Immersion Heaters | Dimensions: | Customized |
|---|---|---|---|
| Material: | Titanium Sheath | Application: | Weak Alkali, Weak Acid Liquid And Seawater Heating |
| Highlight: | Immersion Cartridge Heater 440V,Cartridge Heater Titanium Sheath,Customized Cartridge Immersion Heater |
||

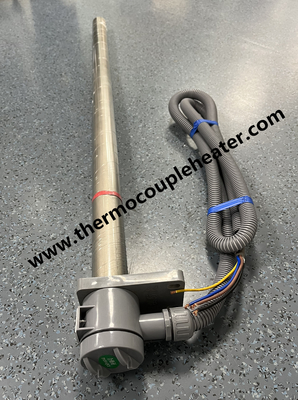

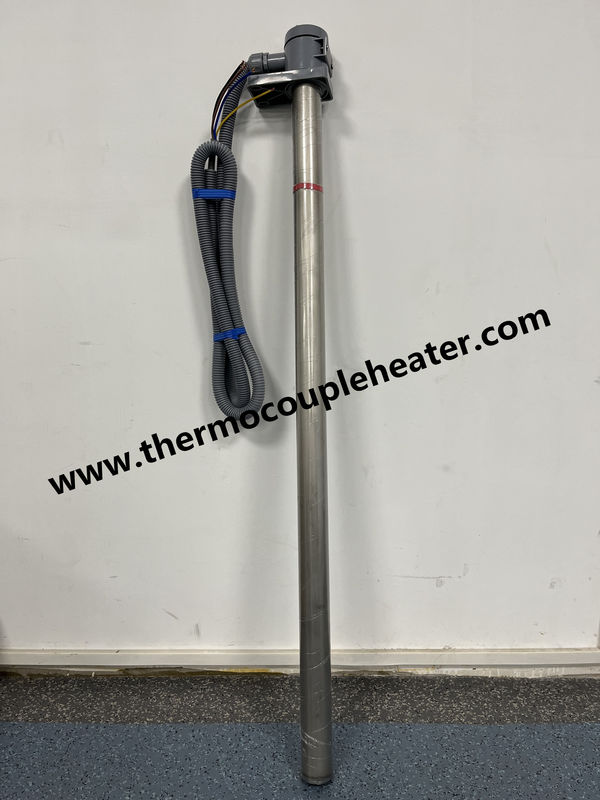

Immersion Cartridge Heater Titanium Sheath Corrosion Resistant
OVERVIEW
GME Immersion Cartridge Heaters are an efficient and cost-effective way of heating up various liquid solutions in processing equipment, as well as in large tanks or vessels. Immersion heaters heating up liquids using direct heat transfer, allows the medium to reach the desired temperature quickly.
INSTALLATION
· Flanged
· Screw plug
· Over the side
TECHNICAL DATA
GME offers immersion heaters in a variety of styles, lengths, watt densities, thermostat control options, and connection fittings. Corrosive resistant immersion heaters are also available.
| Tube diameter | Φ6mm-50mm |
| Voltage | 110-440V |
| Heating Power | 1KW - 100KW |
| Watt Density | Up to 30W/cm2 |
| Wattage tolerance | +5%-10% |
| Length tolerance | ±1.5% |
| Resistance wire | Nickel chromium resistance wire (Ni80Cr20) |
| Sheath Materials |
Titanium, Copper, SS304, SS310, SS316, Incoloy800, Incoloy840 are available |
| Surface treatment | Polishing, coating,plating |
* This product is suitable for weak alkali, weak acid liquid and seawater. Strong corrosive liquid please choose quartz heating tube or PTFE heating element.
* When using, please make sure that the heating area is completely submerged, otherwise dry burning is easy to burn out.
