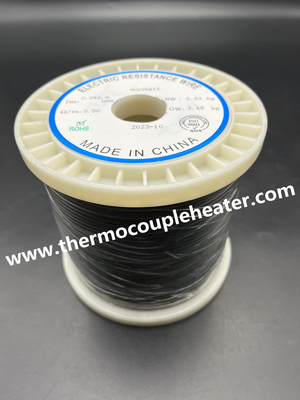

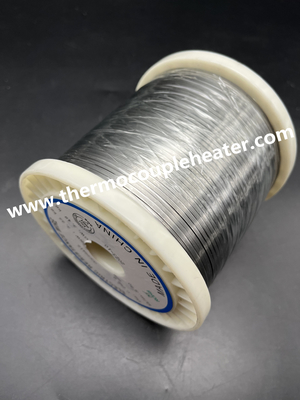

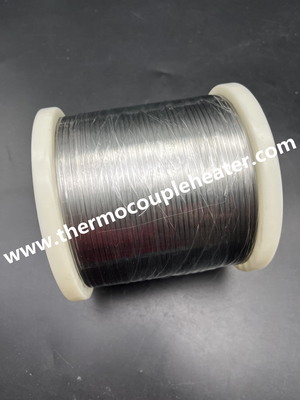

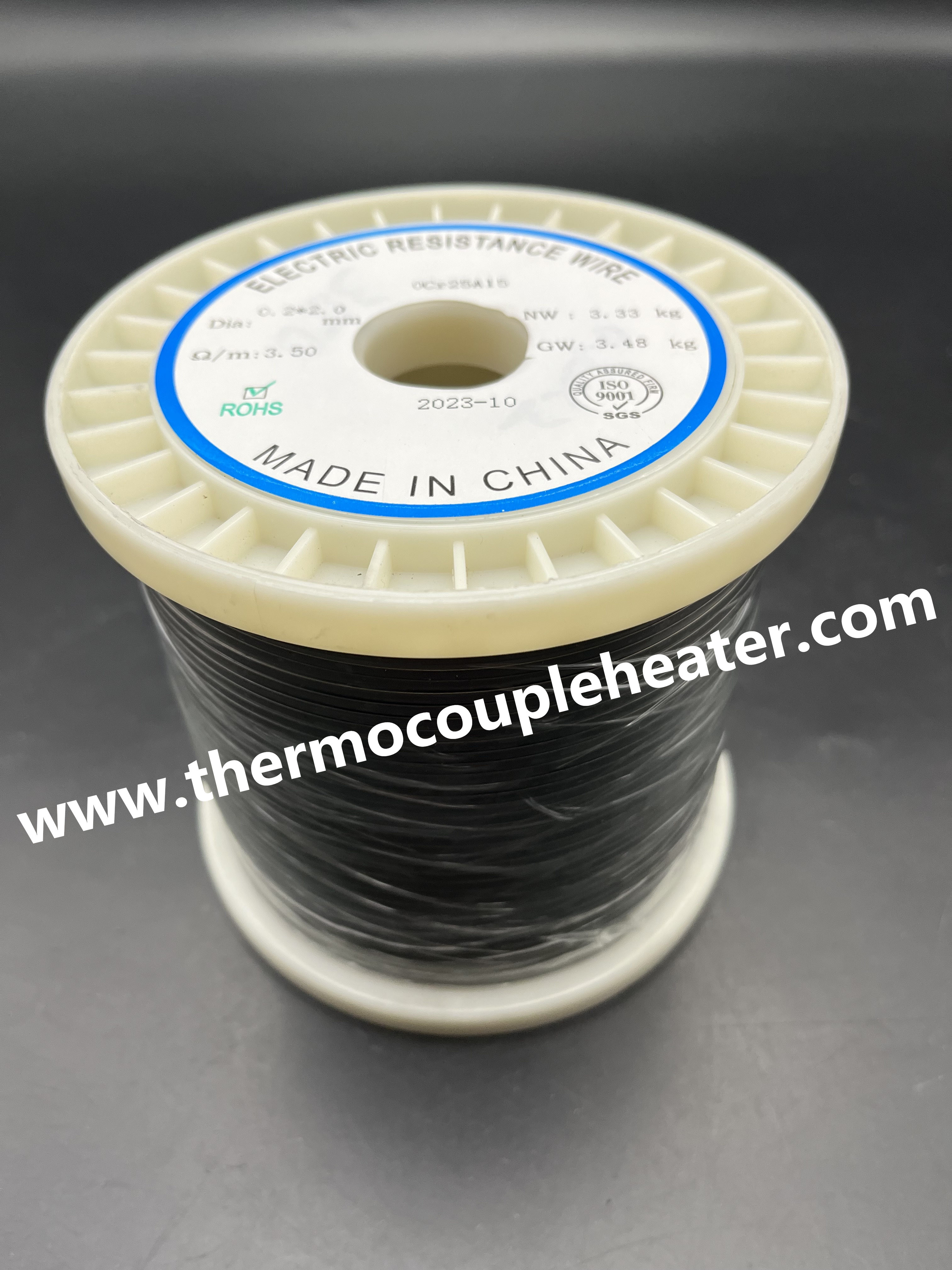

Heating Resistance Wire Fe-Cr-Al Alloy 0Cr25Al5 Flat Tape Round Wire

Large Image : Heating Resistance Wire Fe-Cr-Al Alloy 0Cr25Al5 Flat Tape Round Wire

Product Details:

Place of Origin:	China
Brand Name:	GME

Payment & Shipping Terms:

Minimum Order Quantity:	20 kg
Packaging Details:	Standard exporting package
Delivery Time:	10-30 days
Payment Terms:	L/C, Western Union, T/T, Paypal
Supply Ability:	20,000 kg per month

Contact Now

Detailed Product Description

Material:

0Cr25Al5

Shape:

Round Wire / Flat Tape

Package:

Spool

Max Temperature Range:

1250℃

Highlight:

Fe Cr Al Alloy Round Wire

0Cr25Al5 Heating Resistance Wire

0Cr25Al5 Flat Tape Round Wire

Heating Resistance Wire Fe-Cr-Al Alloy 0Cr25Al5 Flat Tape Round Wire

Introduction:

High temperature heating wires are used for making electric heating elements in home appliances and industrial furnaces. Typical applications are flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements.

Characteristics:

1) Excellent straightness

2) High strength in high temperature

3) Uniform and beautiful surface condition without spots

4) Excellent coil-forming ability

5) Good corrosion resistance

Technical Parameter:

NAME		Cr20Ni80	0Cr25Al5	Cr20Ni30
MAIN CHEMICAL COMPOSITION	Cr	20.0-23.0%	23.0-26.0%	18.0-21.0%
	Ni	Balance	-	30.0-34.0%
	Al	-	4.5-6.5%	-
	Re	-	opportune	-
	Fe	≤1.0%	Balance	Balance
Max Temperature (℃)		1200	1250	1100
melting point( ℃)		1400	1500	1390
Density (g/cm3)		8.4	7.1	7.9
Resistivity 20℃ (μΩ·m)		1.09±0.05	1.42±0.07	1.04±0.05
tensile strength(N/mm2)		850-950	637-784	850-950
elongation(%)		≥20	≥12	≥20
bending frequency(F/R)		≥9	≥5	≥9
Working Life (hours)		>20000	>8000	>18000
Thermal Conductivity (KJ/m·h·℃)		60.3	46.1	43.8
Specific Heat Capacity(J/g.℃)		0.44	0.494	0.5
expansion rate(α×10-6/℃)		18	16	19
micrographic structure		Austenite	Ferrite	Austenite
magnetic property		non-magnetic	Magnetic	non-magnetic
