Bayonet Adapters With Spring Loaded Bayonet Cap Type Thermocouples

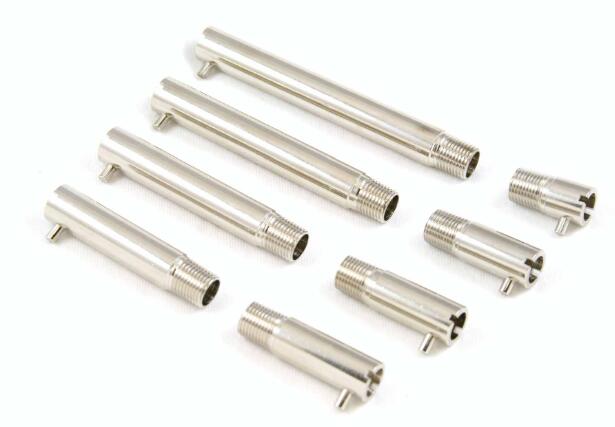

Large Image : Bayonet Adapters With Spring Loaded Bayonet Cap Type Thermocouples

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	cartons， pallet
Delivery Time:	7~10 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	100000 pcs per Month

Contact Now

Detailed Product Description

Type:	Seamless	Application:	Decoration,medical,industry
Outer Diameter:	1mm	Processing Service:	Bending, Welding, Decoiling, Punching, Cutting, Mould
Shape:	Round.square.etc	Finish:	Annealed & Pickled, Bright Annealing, Polished
Model:	Stainless Steel	Steel Grade:	200,300,400series, 316L, 304, 316
Tolerance:	±10%	Surface:	Polishing, Mirro Surface, Bright, Pickling
Technique:	Hot Rolled, Extrusion, Cold Drawn, Cold Rolled	Alloy Or Not:	Alloy
Highlight:	Bayonet Adapters , Thermocouples Bayonet Adapters , Spring Loaded Thermocouples Bayonet Adapters

bayonet adapters used with spring loaded bayonet cap type thermocouples

Description:

These bayonet adapters are used with spring loaded bayonet cap type thermocouples such as the adjustable depth. When the thermocouple sheath is inserted through the adapter, the spring is compressed and locked by the cap pushing the sensor tight against the measured surface which in turn increases accuracy, precision, and response time.

Adapter Length for Bayonet Type Thermocouples and RTDs

Hole “C”	Probe Length A (in)
(in)	7/8" Long Adapter	1-3/8" Long Adapter	2-1/2" Long Adapter
1⁄4 to 1⁄2	1-5⁄8	2	3-1⁄8
1⁄2 to 1	2	2-1⁄2	3-5⁄8
1 to 1-1⁄2	2-1⁄2	3	4-1⁄8
2 to 2-1⁄2	3-1⁄2	4	5-1⁄8
2-1⁄2 to 3	4	4-1⁄2	5-5⁄8
3 to 3-1⁄2	4-1⁄2	5	6-1⁄8
3-1⁄2 to 4	5	5-1⁄2	6-5⁄8
4 to 4-1⁄2	5-1⁄2	6	7-1⁄8
4-1⁄2 to 5	6	6-1⁄2	7-5⁄8
5 to 5-1⁄2	6-1⁄2	7	8-1⁄8
5-1⁄2 to 6	7	7-1⁄2	8-5⁄8
6 to 6-1⁄2	7-1⁄2	8	9-1⁄8

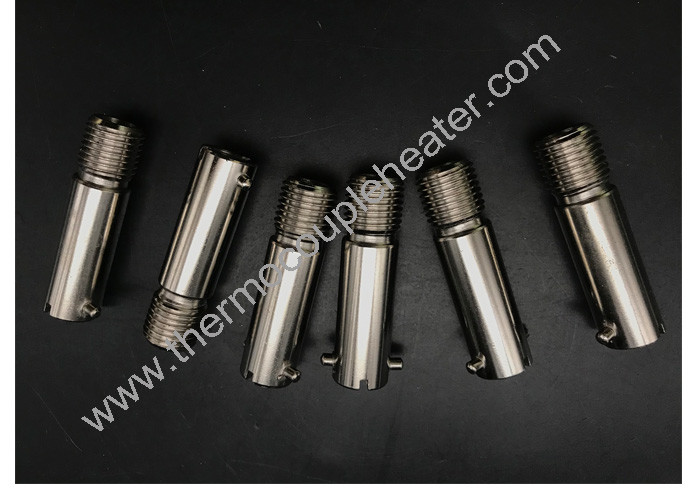

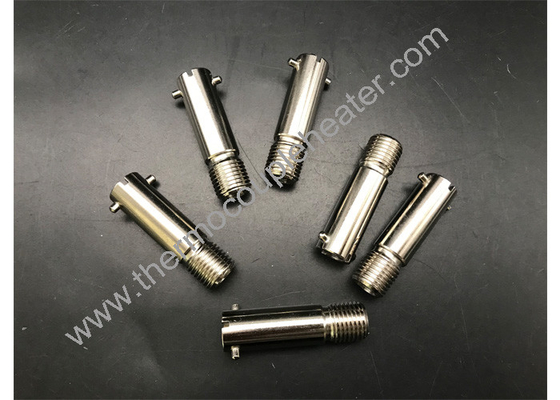

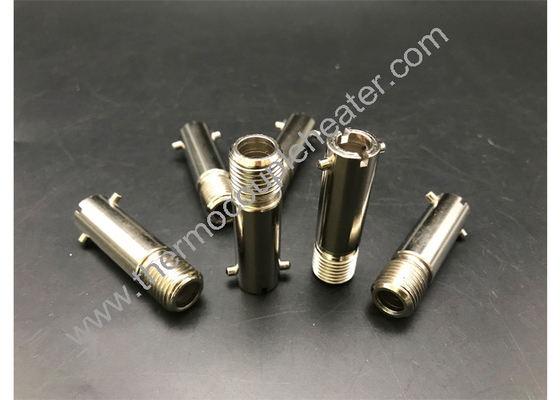

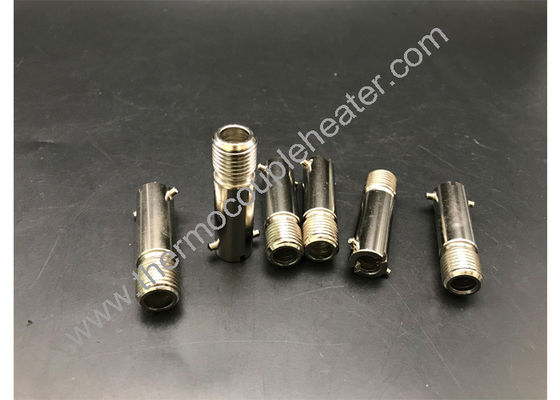

Bayonet Adapters With Spring Loaded Bayonet Cap Type Thermocouples 0
