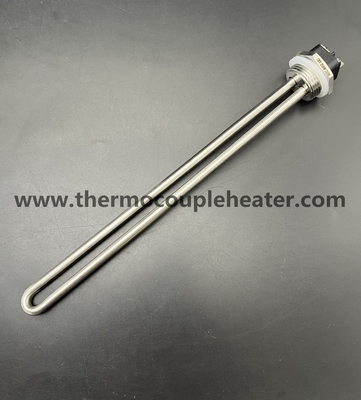

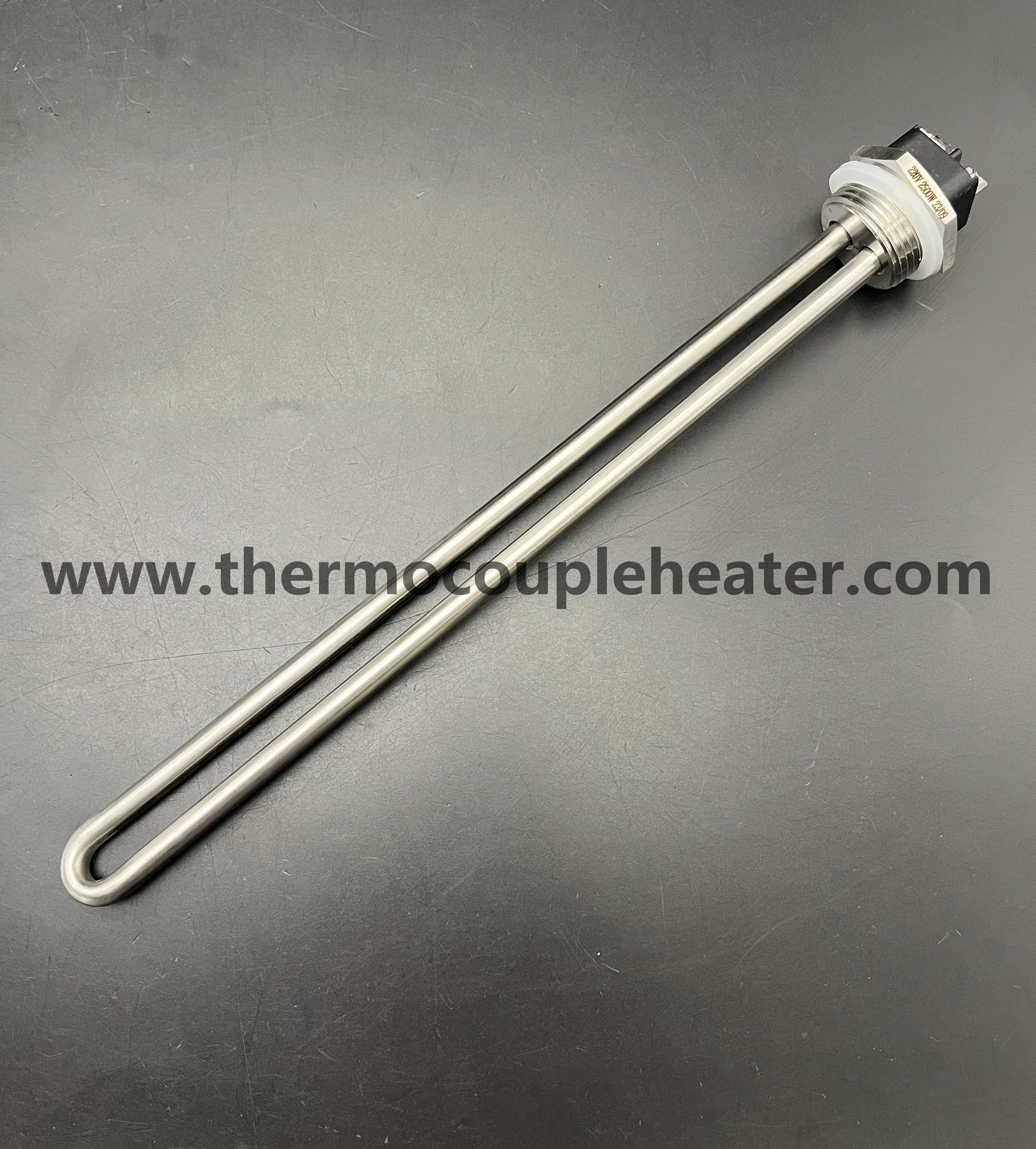

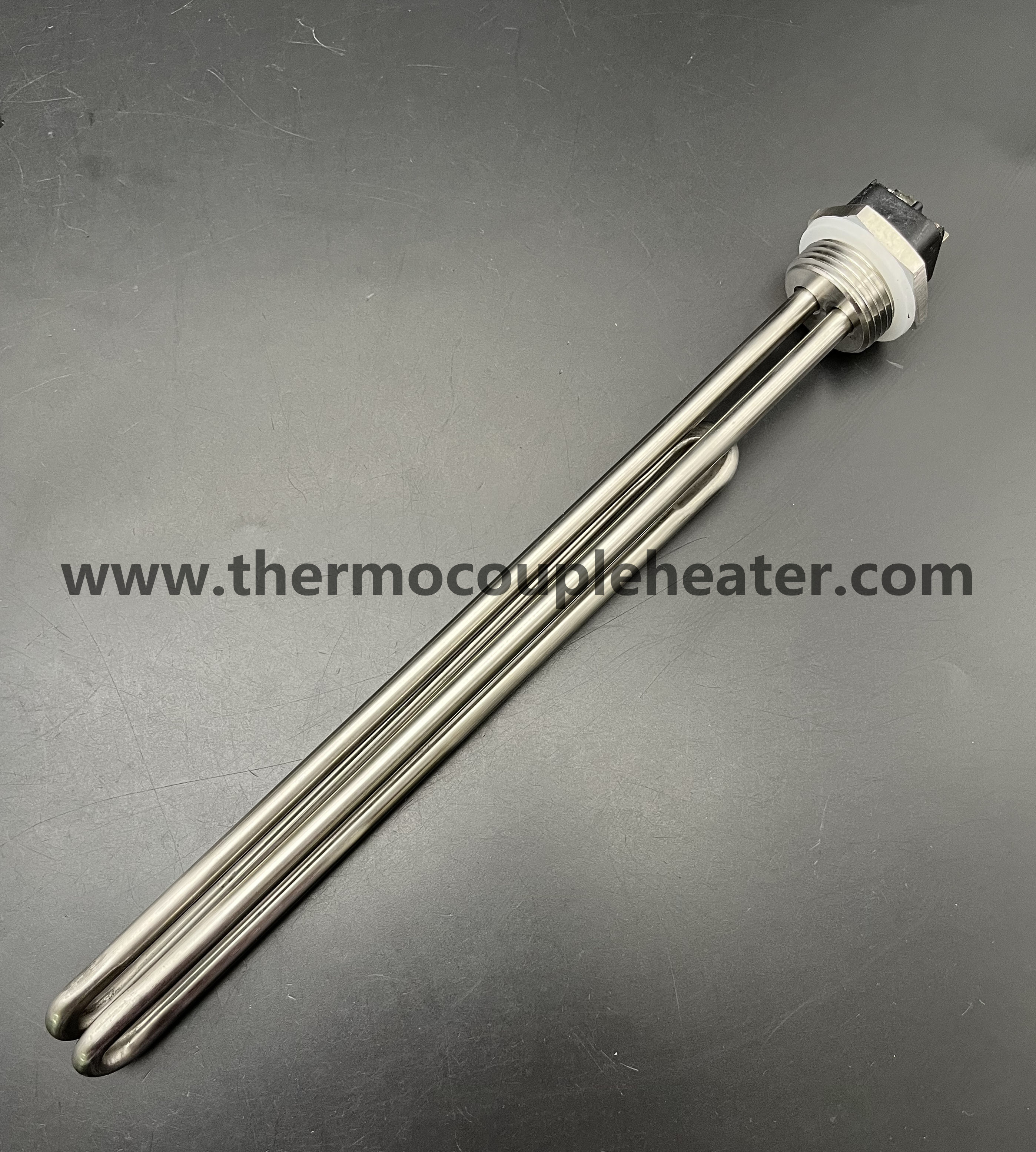

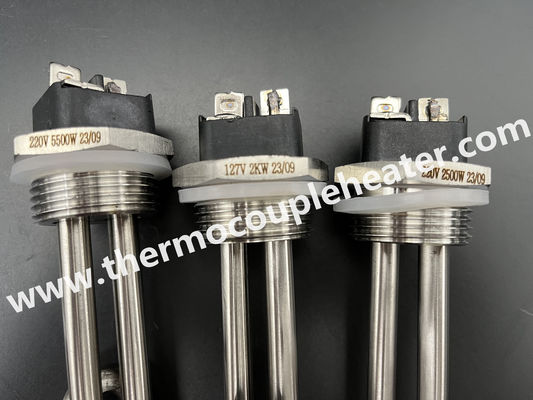

Screw Plug Immersion Heaters Stainless Steel Tubular Heating Element Water Heater

Screw Plug Immersion Heaters Stainless Steel Tubular Heating Element Water Heater

Immersion heateris an electric heating element that is designed to be immersed in a liquid, such as water or oil, to heat it up. It is typically used in household water heating systems, such as in hot water tanks or boilers, or in industrial processes where liquids need to be heated for various purposes.

The immersion heater consists of a heating element, usually made of a metal alloy such as copper or stainless steel, which is insulated from the surrounding liquid by a sheath or tube made of a material that is resistant to corrosion and heat. The heating element is connected to an electrical power supply via a cable, and when the power is switched on, the element heats up and begins to transfer heat to the surrounding liquid.

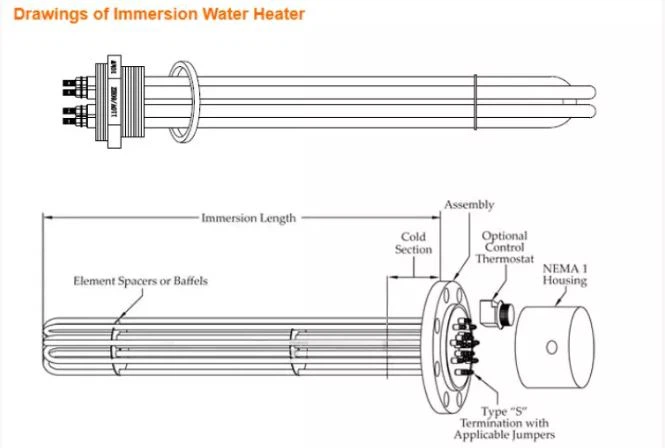

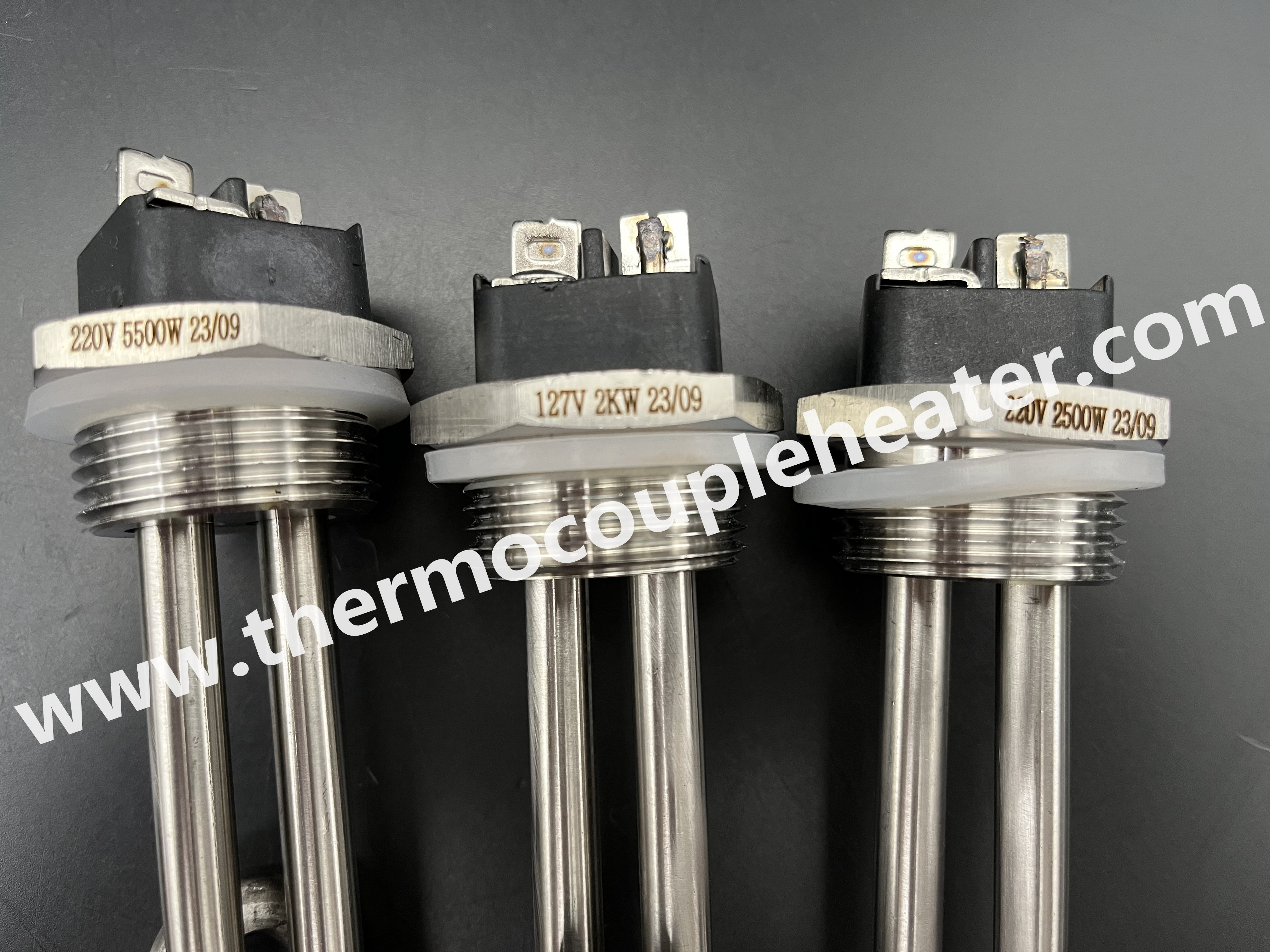

Screw Plug Immersion Heaters are screwed directly through a threaded opening in a tank wall or through a matching pipe coupling or half coupling. Sizes of screw plug heaters are available with 1”, 1-1/4”, 1-1/2”, 2”, 2-1/2" pipe threads. A wide selection of screw plug sizes, kilowatt ratings, voltages, sheath materials,terminal enclosures and thermostats makes these compact heaters ideal for all types of applications.

Features: Uniform heating, high thermal efficiency, rapid heating, rapid heat conduction, seamless steel pipe,corrosion and rust resistance.
