Si3N4 Silicon Nitride Bonding SiC Silicon Carbide Thermocouple Protection Ceramic Tubes

Large Image : Si3N4 Silicon Nitride Bonding SiC Silicon Carbide Thermocouple Protection Ceramic Tubes

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE
Model Number:	Mgo rod

Payment & Shipping Terms:

Minimum Order Quantity:	500pcs
Price:	USD$0.002/pc
Packaging Details:	paper carton, wooden carton
Delivery Time:	30days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100000pcs per month

Contact Now

Detailed Product Description

Material:	Magnesium Oxide Ceramic	Color:	White / Ivory
Bores:	Single,two,four Or Multi Bores	Shape:	Round, Square, Rectangular, Oval
Usage:	Works As Refractory Material
Highlight:	Thermocouple Protection Ceramic Tubes , SiC Silicon Carbide Thermocouple Tubes , Si3N4 Thermocouple Protection Tubes

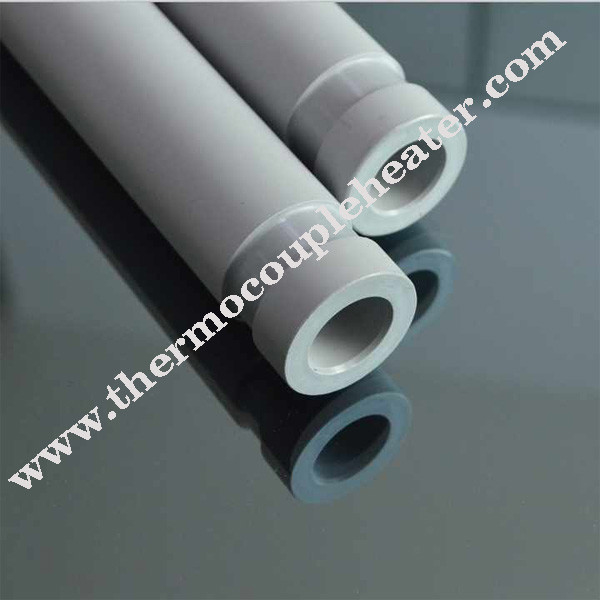

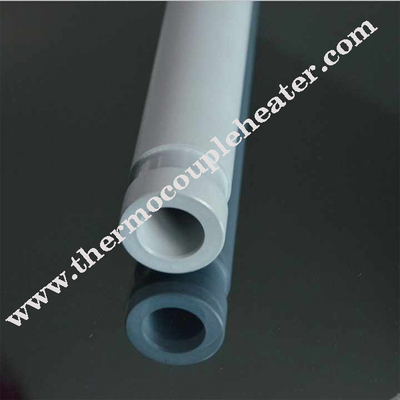

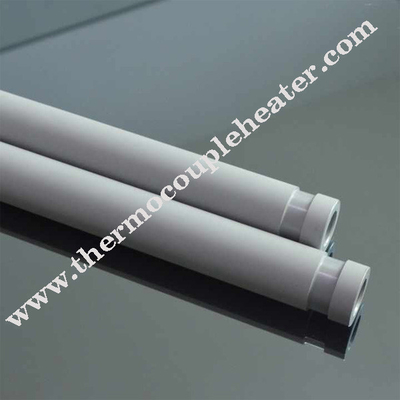

Si3N4 Silicon Nitride Bonding SiC Silicon Carbide Thermocouple Protection Ceramic Tubes

Description:

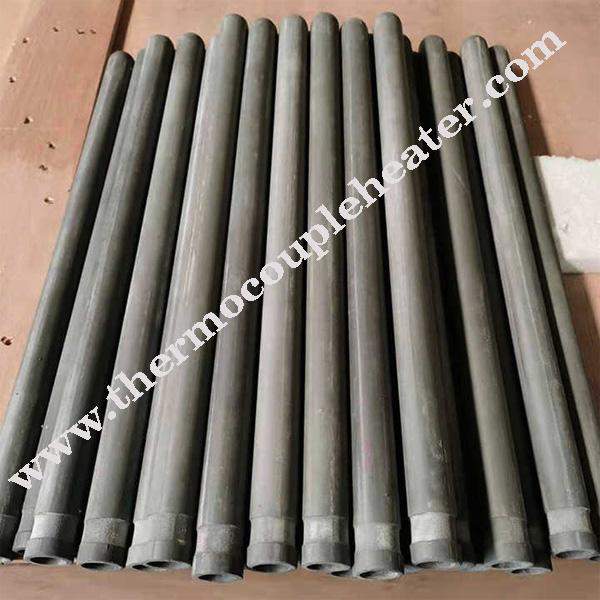

Nitride-bonded silicon carbide tube

Silicon carbide products are high-grade refractory materials produced by sic as the main raw material, with various binders and high temperature firing. It has good thermal conductivity, high temperature strength, wear resistance, strong corrosion resistance and good thermal stability. Such outstanding performance. It is widely used in the metallurgical industry, blast furnace belly, open iron tap, electric porcelain, enamel, ceramic kiln, muffle board, shed board, flame board, push board, raft, pillar, glass annealing furnace, etc. , specific products.

Physical properties

Item	Data
SiC content	>75%
Si3N4 content	>22%
Fe2O3	<0.5%
Bulk density	2.6-2.7g/cm3
Apparent porosity	<16%
Cold Crushing strength	150Mpa
Rupture strength at 1200°C	>50Mpa
Thermal conductivity at 800°C	>18w/m.k
Thermal conductivity at 1200°C	>14w/m.k
Thermal expansion coefficient	<4.7x10-6/°C

Application

Silicon carbide tube is mainly used in the production of aluminum, copper and zinc , as the lining material of the molten pool and electrolytic bath (reduction bath).
