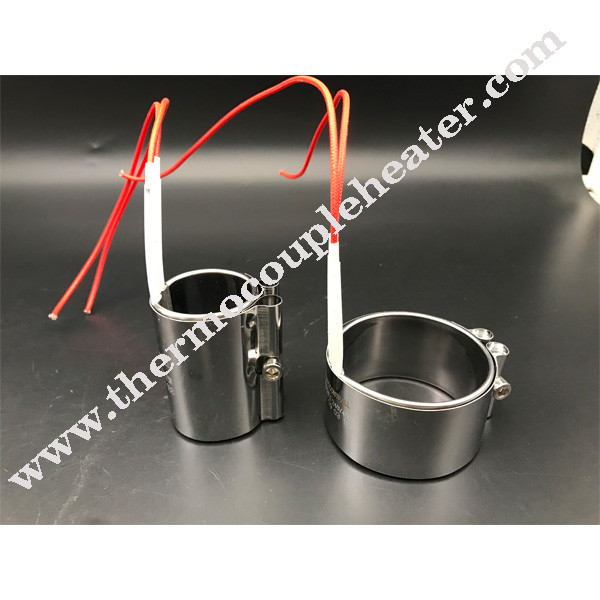

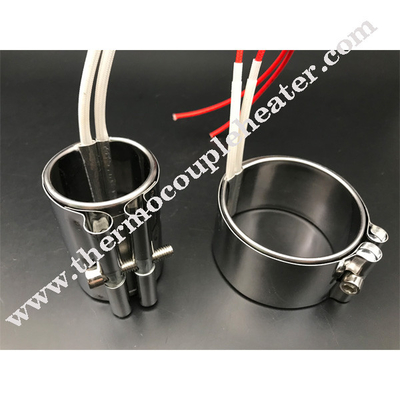

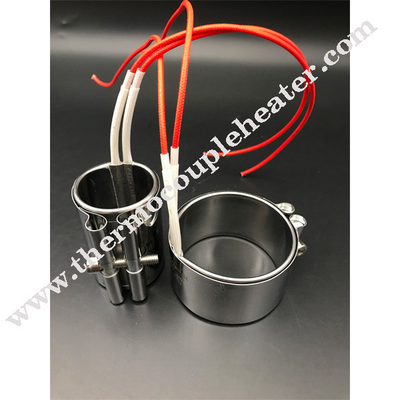

Industrial Mica Insulation Cylinder Band Heater Elements 65*25mm 35*35mm 40*50mm

Industrial Mica Insulation Cylinder Band Heater Elements 65*25mm 35*35mm 40*50mm
Industrial Mica Insulation Cylinder Band Heater Elements 65*25mm 35*35mm 40*50mm Industrial Mica Insulation Cylinder Band Heater Elements 65*25mm 35*35mm 40*50mm Industrial Mica Insulation Cylinder Band Heater Elements 65*25mm 35*35mm 40*50mm

Large Image :  Industrial Mica Insulation Cylinder Band Heater Elements 65*25mm 35*35mm 40*50mm

Product Details:
Place of Origin: China
Brand Name: GME
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Packaging Details: cartons， pallet
Delivery Time: 7~10 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 100000 pcs per Month
Contact Now
Detailed Product Description
Power Source: Electric Dimension: Customized
Voltage: 110-240V / 50-60Hz Warranty: One Year
Power: 195W-690W Style: Straight Or Coil
Heating Wire Material:: Cr20Ni80 Coiling Scheme: Tangential, Radial Exits, Axial
Material: Brass Or Stainless Steel Color: Copper
Application: Widely Used Height: 10mm~200mm
Highlight:

Mica Insulation Band Heater Elements

,

Mica Cylinder Band Heater Elements

,

Mica Insulated Band Heaters 65x25mm

65*25mm 35*35mm 40*50mm Industrial Mica Insulation Cylinder Band Heater Elements

Description:

Mica Insulation Cylinder Band Heater Elements are the ideal solution for high watt density and high operating temperature applications, especially for the plastics industry. Mica band heater can be found in several types of dimensions, wattage, voltages and material. Mica band heater is an inexpensive form of heating solution to external indirect heating. And strip type is also very popular.Mica extruder band heater use electric heating (Ni20Cr80 wire) to heat-up the external surface of drums or pipes and high quality mica material insulated.


Specification:



  • High class Nickel Chrome ribbon is used.
  • Maximum power: 3w/cm2(s.steel),4.5w/cm2(brass),6.5w/cm2(ceramic insulation)
  • Operating temperature up maximum of 500 degree centigrade
  • Axial, Radial & Tangential terminals are available
  • Thermocouple holes can be provided as per client's requirements
Vottage
380V,240V, 220V,200V,110V and other can be customized.
Wattage
80W,100W,200W,250W and other can be customized.
Heater Inside Diameter
Customized
Heater Width
20mm, 30mm, 60mm, 110mm and other can be customized.
Termination Stype
standard type or plug terminal, ceramic block terminal and lead wire terminal.



Application:



1.Injection Moulding / Extrusion Machines
2.Rubber Moulding /Plastic Process Machinery
3.Tooling & Die Heads
4.Packaging Machinery
5.Shoe Manufacturing Machinery
6.Test Equipment/Laboratory Equipment
7.Food Process Machinery
8.Drums containing solids or fluids
9.Vacuum Pumps and more



Industrial Mica Insulation Cylinder Band Heater Elements 65*25mm 35*35mm 40*50mm 0
