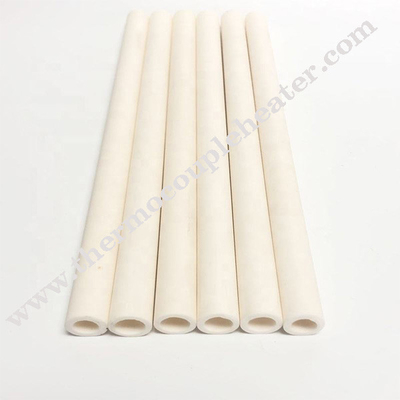

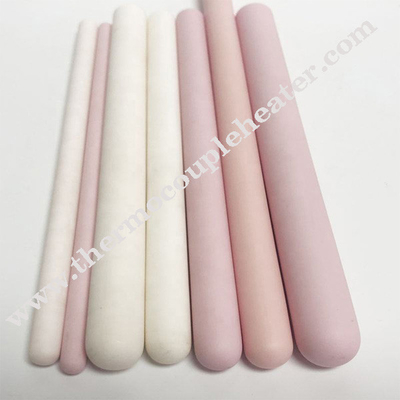

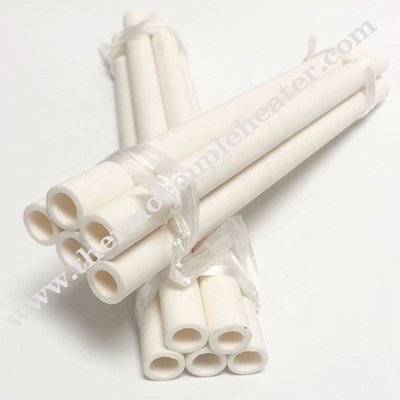

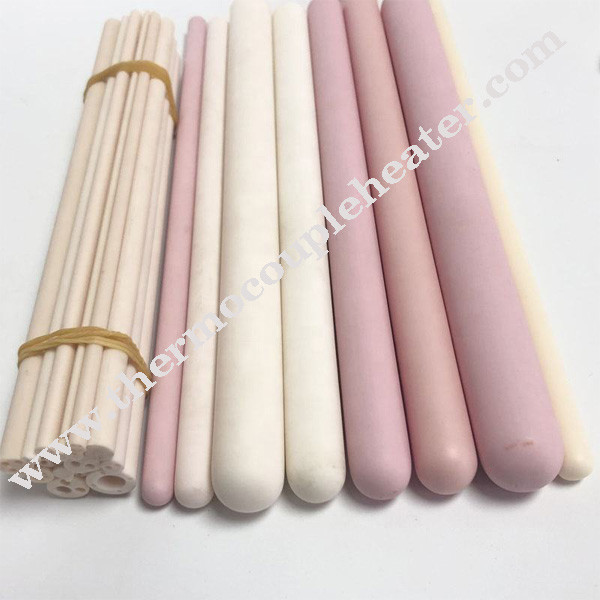

High Temperature Alsint C799 99.7% Alumina Ceramic Thermocouple Protection Tubes for Furnace

Large Image : High Temperature Alsint C799 99.7% Alumina Ceramic Thermocouple Protection Tubes for Furnace

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE
Model Number:	Mgo rod

Payment & Shipping Terms:

Minimum Order Quantity:	500pcs
Price:	USD$0.002/pc
Packaging Details:	paper carton, wooden carton
Delivery Time:	30days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100000pcs per month

Contact Now

Detailed Product Description

Material:	Magnesium Oxide Ceramic	Color:	White / Ivory
Bores:	Single,two,four Or Multi Bores	Shape:	Round, Square, Rectangular, Oval
Usage:	Works As Refractory Material
Highlight:	High Temperature Alsint Thermocouple Tubes , Furnace Thermocouple Protection Tubes , 99.7% Alumina Ceramic Thermocouple Tubes

High Temperature Alsint C799 99.7% Alumina Ceramic Thermocouple Protection Tubes for Furance

Description:

We are supplying a wide variety of ceramic tubes and rods manufactured from advanced technical ceramics including

1. alumina(Alsint 99.7 Type C 799/ Rubalit C 799/99.7% al2O3, 96% Dense Al2O3,Pythagoras Type C 610/ Dimulit C610, Sillimatin 60
Type C 530,Mullite/ Aluminium Silicate/3Al2O3•2SiO2)

2.zirconia (TTZ/ Magnesia partially stabilized ZrO2;YTZP/Yttria partially stabilized ZrO2;ZDY/ Yttria fully stabilized ZrO2)

3.silicon carbide(Recrystallized sic,nitride bonded sic, reaction sintering sic/RB sic ).

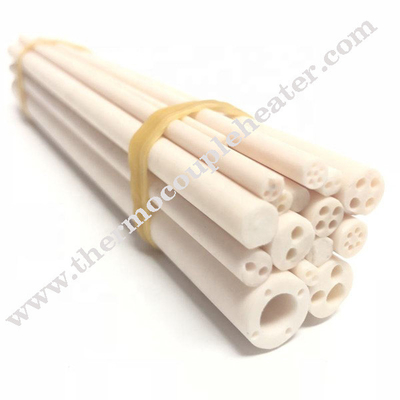

These tubes are in various of sizes, shapes and configurations for example:single bore, double bores, four bores, dee tubing, oval
shapes, custom shapes.

95 Ceramic Tube Physical Properties
Material	85Al2O3	90Al2O3	95Al2O3	99Al2O3
Al2O3	85%	90%	93%	99.30%
Fe2O3	≤1.0	≤0.5	≤0.5	≤0.3
Desnsity:g/cm3	3.4	3.5	3.6	3.85
Vicker Hardness	≥8.6	≥8.8	9	9
Water Absorption:%	≤0.2	≤0.1	≤0.085	≤0.01
Refractoriness:℃	1580	1600	1650	1800
Flexural Strength:Mpa	180	200	240	280
Wear Rate (at room temperature, erosion, 100 grinding):%	≤3	≤0.5	≤0.5	≤0.5

Tag:

Contact Person: Mr. Frank

Tel: 15058960276

Fax: 86-27-86653728
