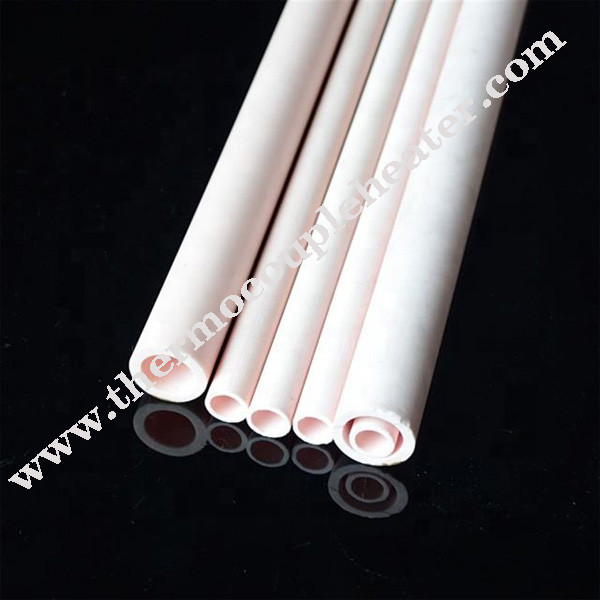

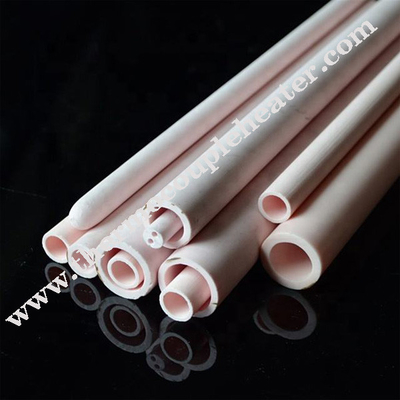

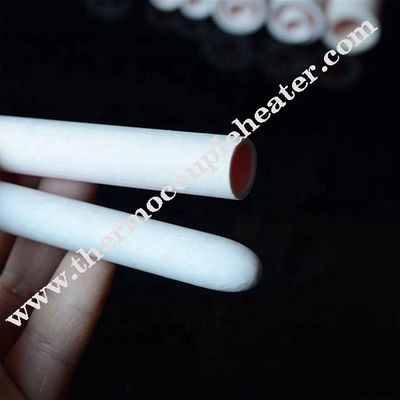

High Purity Wearable Isostatic Alumina Ceramic Tube Insulator For Thermocouple

Large Image : High Purity Wearable Isostatic Alumina Ceramic Tube Insulator For Thermocouple

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE
Model Number:	Mgo rod

Payment & Shipping Terms:

Minimum Order Quantity:	500pcs
Price:	USD$0.002/pc
Packaging Details:	paper carton, wooden carton
Delivery Time:	30days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100000pcs per month

Contact Now

Detailed Product Description

Material:	Magnesium Oxide Ceramic	Color:	White / Ivory

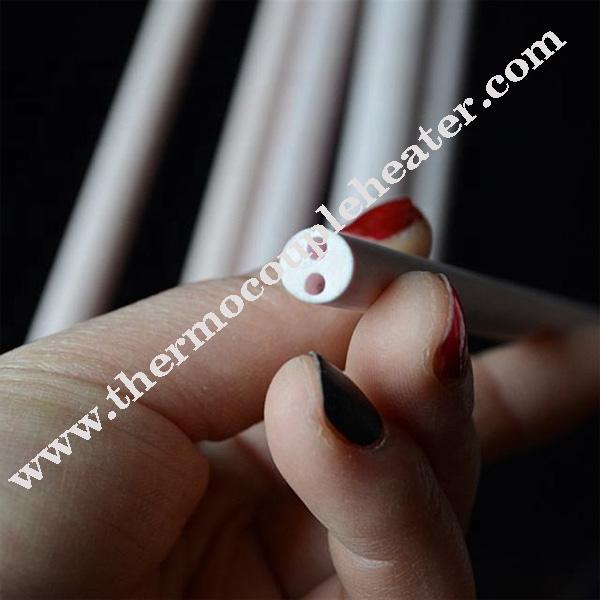

Bores:	Single,two,four Or Multi Bores	Shape:	Round, Square, Rectangular, Oval
Usage:	Works As Refractory Material
Highlight:	Thermocouple Alumina Ceramic Tube Insulator , isostatic Alumina Ceramic Tube Insulator , Thermocouple Alumina Ceramic Insulator

Refractory 99% Al2O3 Ceramic Alumina Mullite Magnesia Ceramics Tubes

Description:

95% 99% Alumina Tube Ceramic Tube / Pipe/ Roller

Ceramic alumina tube,alumina rod,alumina content 95%-99.7%,white or ivory,wear-resisting and acidproof alkali corrosion,high temperature(1600-1700 degreecentigrade).Good chemical stability,high insulation,strong adsorption capacity,is a nice electrical and wear-resisting material.

Widely used in lamps and lanterns,electronic appliances,blast nozzle,auto parts,wear-resistant parts of insulating material,etc

Alumina can take temperatures up to 1650°C, having extremely high temperature stability, chemical corrosion resistance, and high wear and abrasion resistance. Most items are in stock and can be pulled and shipped normally under 1 week ARO. Smaller diameter tubes are produced by extrusion, while larger diameters are produced by casting. Sizes are available from .050" OD to 8.25" OD in lengths up to 60" long

95 Ceramic Tube Physical Properties
Material	85Al2O3	90Al2O3	95Al2O3	99Al2O3
Al2O3	85%	90%	93%	99.30%
Fe2O3	≤1.0	≤0.5	≤0.5	≤0.3
Desnsity:g/cm3	3.4	3.5	3.6	3.85
Vicker Hardness	≥8.6	≥8.8	9	9
Water Absorption:%	≤0.2	≤0.1	≤0.085	≤0.01
Refractoriness:℃	1580	1600	1650	1800
Flexural Strength:Mpa	180	200	240	280
Wear Rate (at room temperature, erosion, 100 grinding):%	≤3	≤0.5	≤0.5	≤0.5

Tag:
